16.11 Adjusting the cornering light range
Preparatory work
– Check the setting of the lighting system. ( p. 207)
Main work
– Press the UP or DOWN button until the "Settings" menu appears
on the matrix display. Pressing the SET button opens the
menu.
– Press the UP or DOWN button until "cLightTest" is highlighted
in black on the matrix display. Pressing the SET button again
starts the cornering light test.
– Wait for a few seconds until the upper segment of the left cor-
nering light lights up continuously.

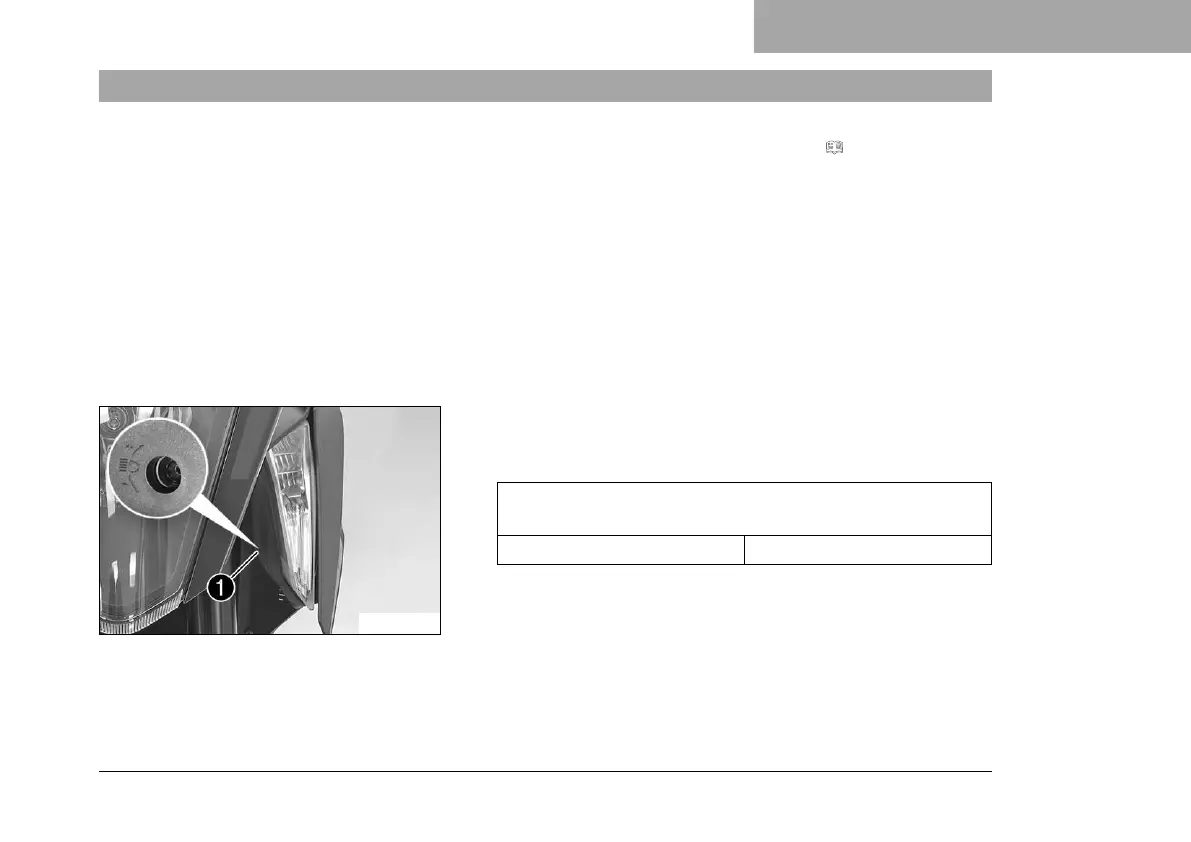

S01121-10
–
Turn adjusting screw
1
to adjust the left cornering light
range.
Guideline
Carefully turn the adjusting screw; do not use force to avoid
damaging the adjuster mechanism.
Adjusting screw torque ≤ 0.25 Nm (≤ 0.184 lbf ft)
