ELECTRICAL SYSTEM 16

189

the daytime running light is switched off, it serves as a parking

light.

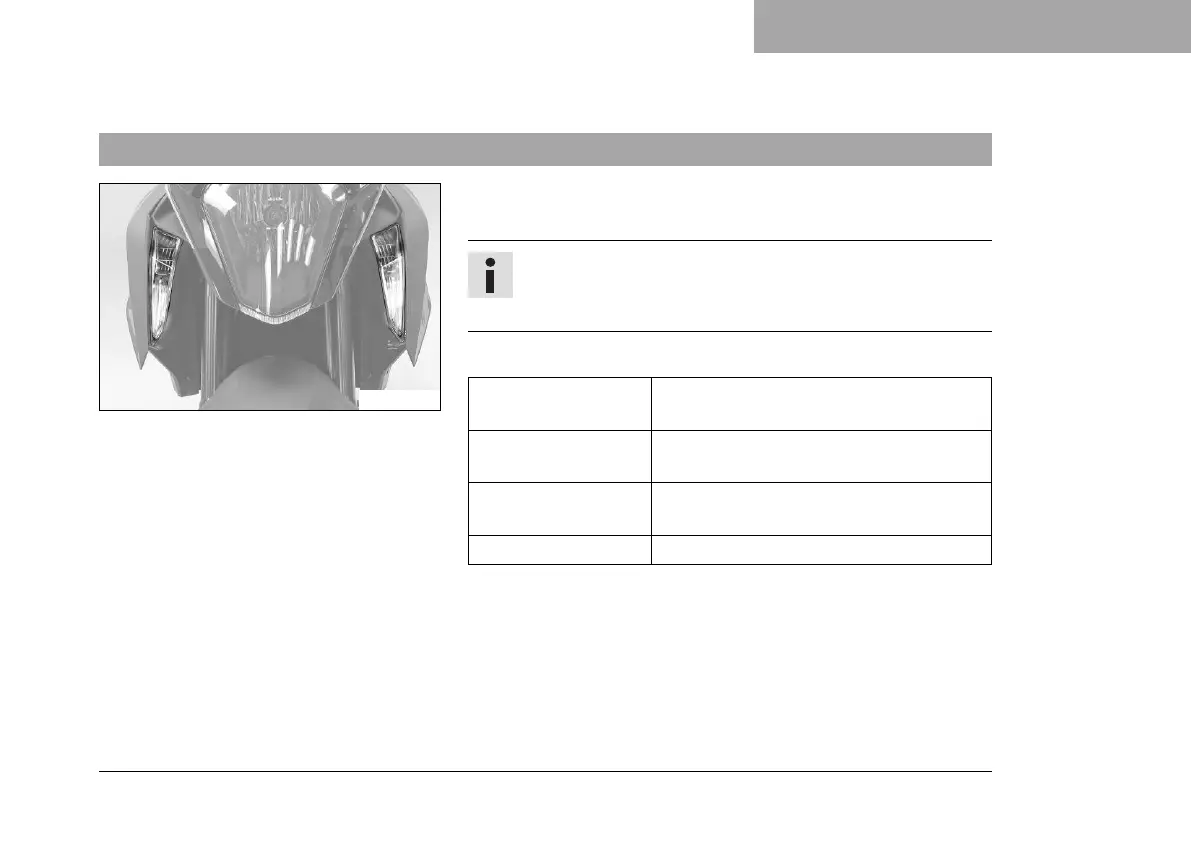

16.2 Cornering headlight

S01120-10

The cornering headlight is located on the left and the right in the

tank spoiler.

Info

To activate the cornering light, the low beam must be

switched off and the daytime running light switched on.

The cornering headlights are activated with:

Lean angle for the

lower LED

≥ 12°

Lean angle for the

middle LED

≥ 20°

Lean angle for the

upper LED

≥ 28°

Speed ≥ 6 km/h (≥ 3.7 mph)
