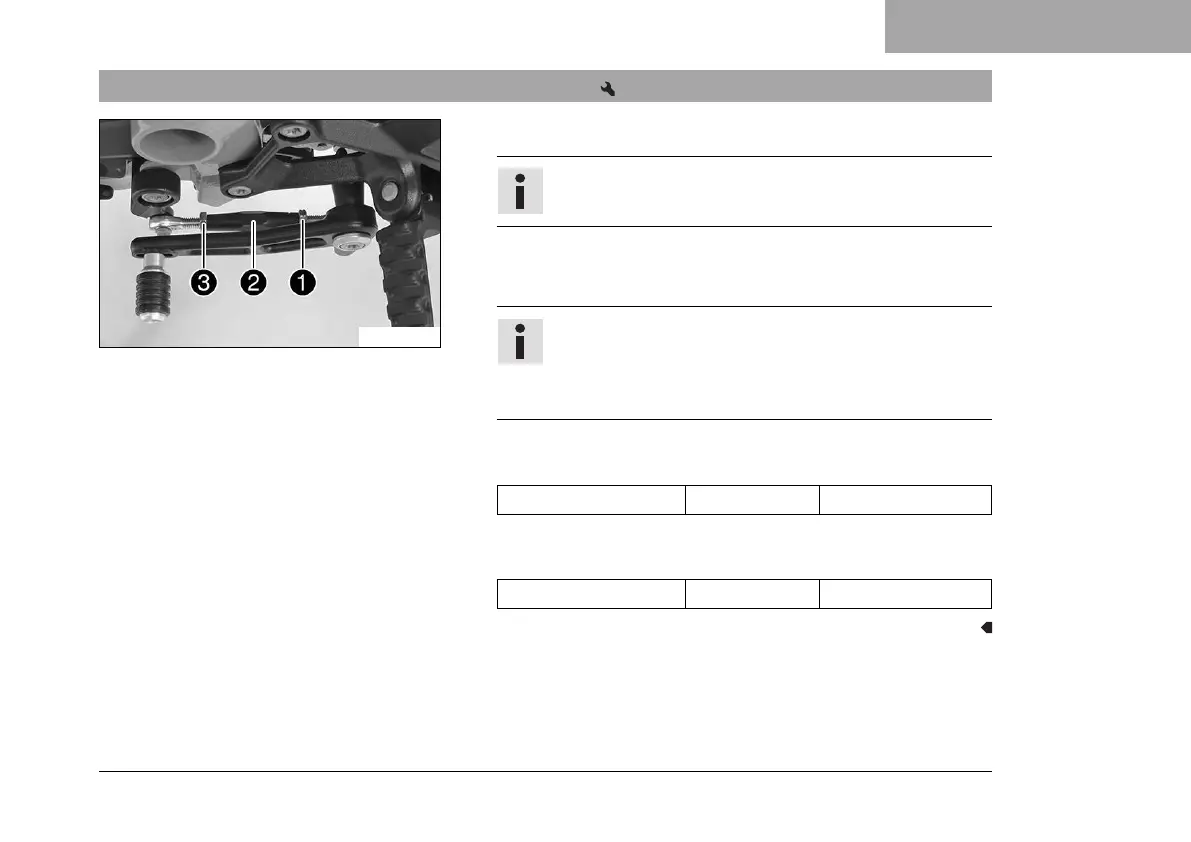

8.10 Adjusting the basic position of the shift lever
S01570-10
–
Loosen nut
1
, holding the threaded rod
2
.
Info
Nut
1
has a left-handed thread.
–
Loosen nut
3
, holding the threaded rod
2
.
–
Turn threaded rod
2
to adjust the shift lever.
Info
The range of adjustment is limited.
The shift lever must not come into contact with any
other vehicle components during the shift procedure.
–
Tighten nut
3
, holding the threaded rod
2
.
Guideline
Nut, shift rod M8 12 Nm (8.9 lbf ft)
–
Tighten nut
1
, holding the threaded rod
2
.
Guideline
Nut, shift rod M8LH 12 Nm (8.9 lbf ft)
