13 SERVICE WORK ON THE CHASSIS
102
13.15 Installing the right side cover
F03296-10

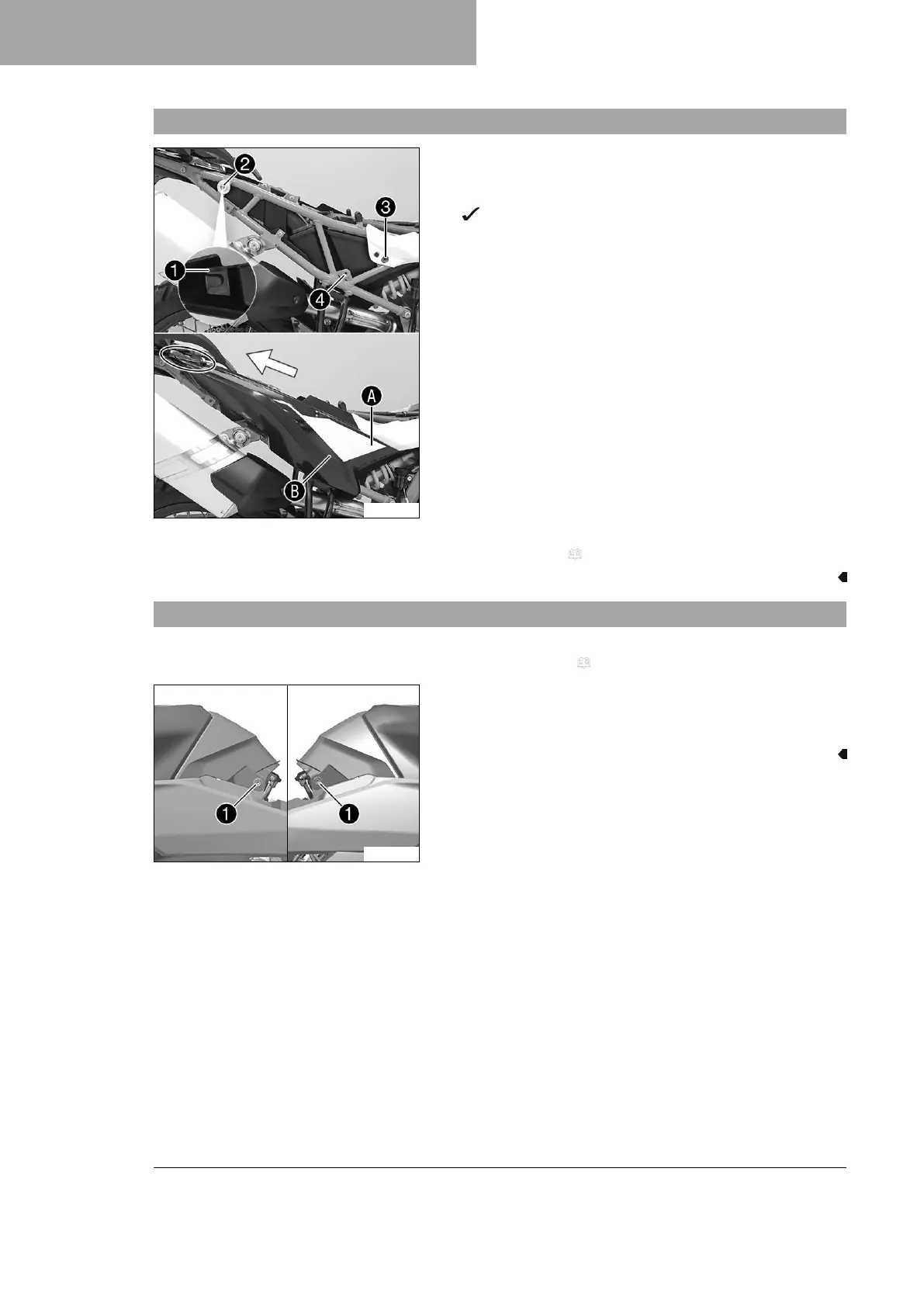

Main work
–
Position the right side cover with holding lug
1
on bush-
ing
2
and push backward.
The right side cover engages under the tail part.
–
Press the right side cover in the area
A
into rubber bush-
ing
3
and press into rubber bushing
B
in area
4
.
Finishing work
– Mount the seat. ( p. 95)
13.16 Removing the battery cover
Preparatory work
– Remove the seat. ( p. 95)
Z03264-10
Main work
–
Remove screws
1
with the bushings.
– Remove the battery cover from above.
