KTM 890 ADVENTURE R 2023 User Manual

15 WHEELS, TIRES
122
Tip
Temporarily tighten one of the axle clamp screws so
that the axle does not rotate with it.
Loosen the axle clamp screw again before compression
to allow the fork legs to align.

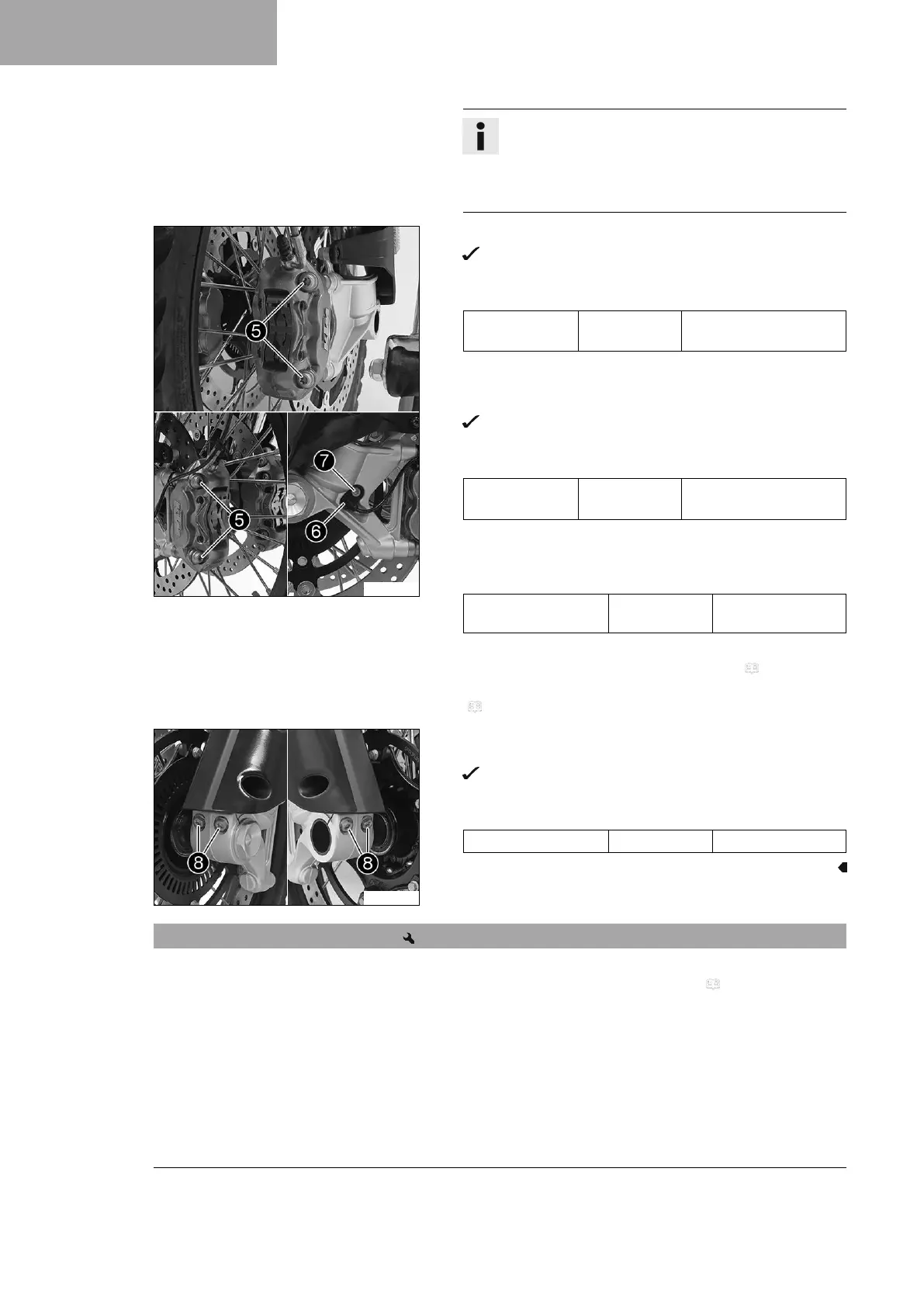

F02070-10
– Position both brake calipers.
The brake linings are correctly positioned.
–
Mount screws
5
on both sides but do not tighten yet.
Guideline
Screw, front
brake caliper
M10x1.25 45 Nm (33.2 lbf ft)
Loctite
®
243™
– Operate the hand brake lever repeatedly until the brake lin-
ings are in contact with the brake disc and there is a pressure
point. Secure the hand brake lever in the activated position.
The brake calipers straighten.
–
Tighten screws
5
on both sides.
Guideline
Screw, front
brake caliper
M10x1.25 45 Nm (33.2 lbf ft)
Loctite
®
243™
–
Position wheel speed sensor
6
in the hole.
–
Mount and tighten screw
7
.
Guideline
Screw, front wheel
speed sensor
M6 6 Nm (4.4 lbf ft)
– Remove the locking piece of the hand brake lever.
– Take the motorcycle off the front lifting gear. ( p. 95)
– Remove the rear of the motorcycle from the lifting gear.
( p. 94)
F02067-11
– Operate the front brake and compress the fork a few times
firmly.
The fork legs straighten.
–
Tighten screws
8
.
Guideline
Screw, fork stub M8 15 Nm (11.1 lbf ft)
15.3 Removing the rear wheel
Preparatory work
– Raise motorcycle with rear lifting gear. ( p. 94)
