8 ERGONOMICS
70

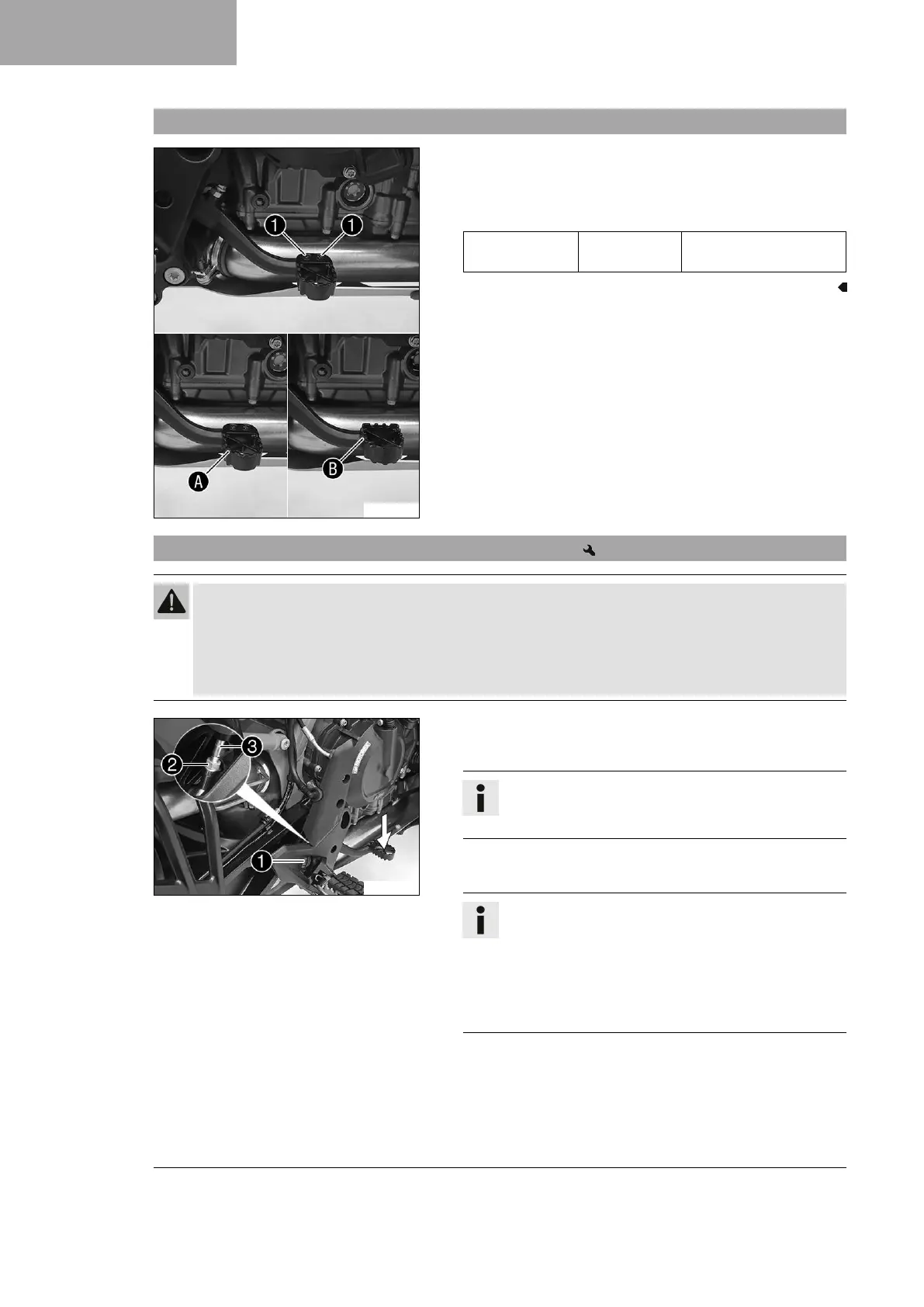

8.5 Adjusting foot brake lever stub
F01946-10
–
Remove screws
1
with the foot brake lever stub.
–
Move the foot brake lever stub into desired position
A
or
B
.
Mount and tighten screws
1
.
Guideline
Screw, foot
brake lever stub
M5 10 Nm (7.4 lbf ft)
Loctite
®
243™
8.6 Adjusting the basic position of the foot brake lever
Warning
Danger of accidents The brake system fails in the event of overheating.
If there is no free travel on the foot brake lever, pressure builds up in the brake system on the rear
brake.
– Set the free travel on the foot brake lever in accordance with the specification.
F02022-10
–
Detach spring
1
.
–
Loosen nut
2
.
Tip
Press the foot brake lever downwards to make this eas-
ier.
–
Turn the push rod
3
to set the basic position of the foot
brake lever.
Info
The range of adjustment is limited.
The screw must be screwed in by at least five full turns.
Screwing the push rod into the ball joint adjusts the
foot brake lever downwards.
Screwing the push rod out of the ball joint adjusts the
brake lever upwards.
