KTM 890 ADVENTURE R 2023 User Manual

13 SERVICE WORK ON THE CHASSIS
106

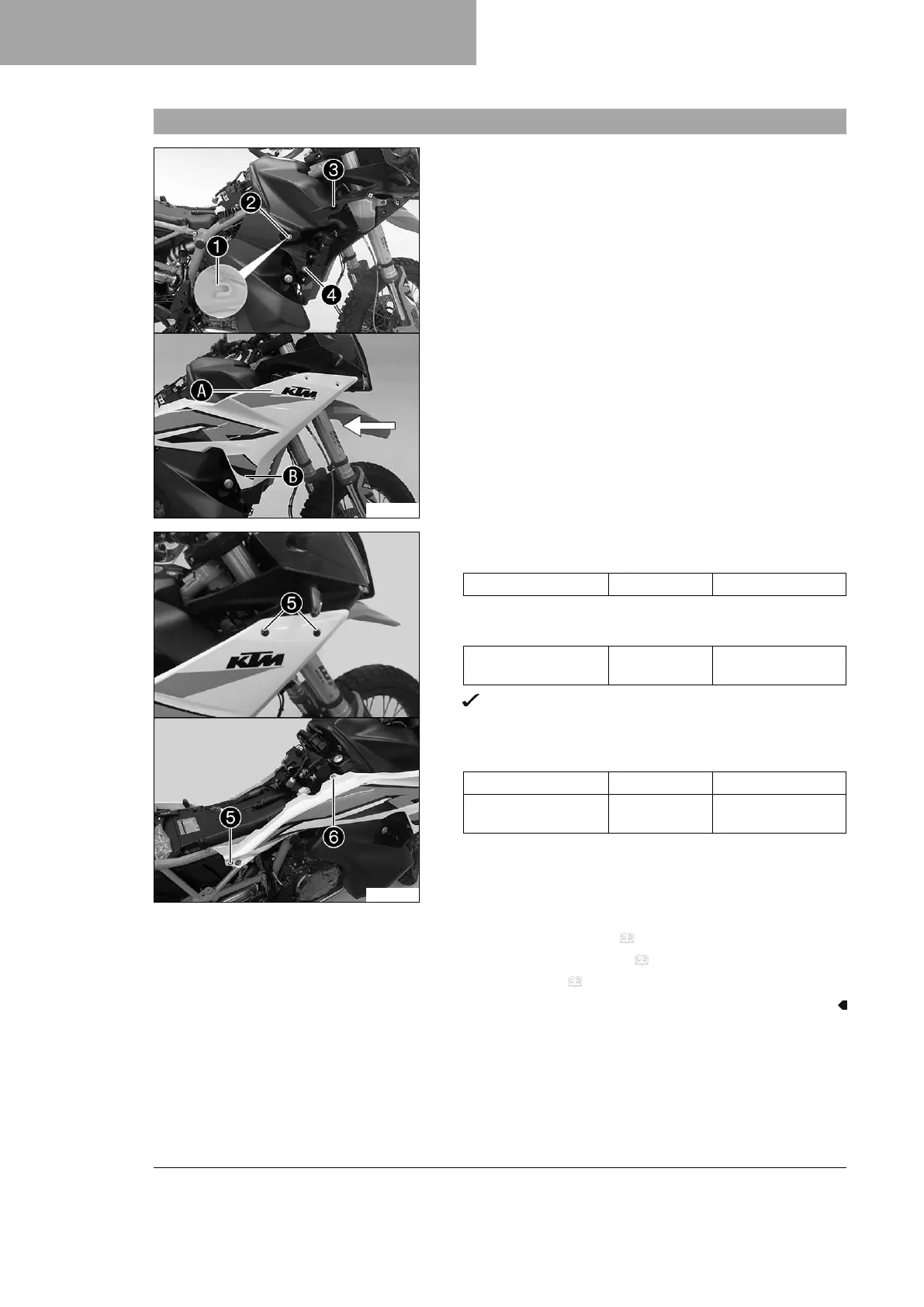

13.21 Installing the right fuel tank spoiler
I00306-10
Main work
–
Position the right fuel tank spoiler with holding lug
1
on
bushing
2
and push backward laterally.
–
Press the right fuel tank spoiler into bracket
3
in area
A
.
–
Press the left fuel tank spoiler into rubber bushing
4
in
area
B
.
I00307-10
–
Mount screws
5
, but do not tighten yet.
Guideline
Screw, trim M5 3 Nm (2.2 lbf ft)
–
Mount screw
6
, but do not tighten it yet.
Guideline
Screw, fuel tank
spoiler
M6 5 Nm (3.7 lbf ft)
The front edge of the right fuel tank spoiler is evenly
aligned.
– Tighten all the screws of the right fuel tank spoiler.
Guideline
Screw, trim M5 3 Nm (2.2 lbf ft)
Screw, fuel tank
spoiler
M6 5 Nm (3.7 lbf ft)
Finishing work
– Install the battery cover. ( p. 103)
– Install the right side cover. ( p. 102)
– Mount the seat. ( p. 95)
