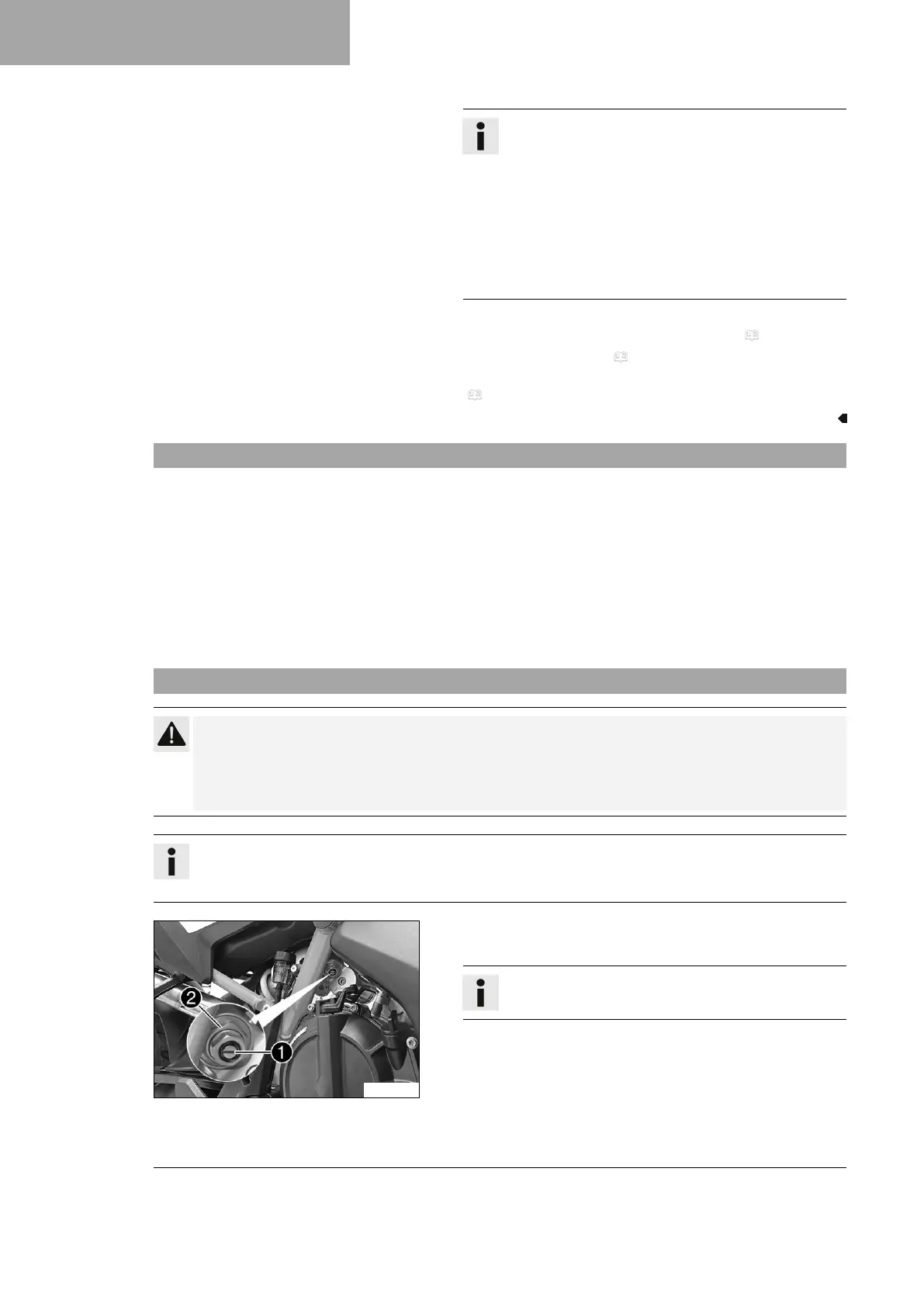

12 TUNING THE CHASSIS
90
Info
Adjust the spring preload to the numerical values only
as the preload will not engage between the numerical
values.
Turn clockwise to increase the spring preload; turn
counterclockwise to reduce the spring preload.
Adjusting the spring preload has no influence on the
absorption setting of the rebound.
Basically, however, you should set the rebound damp-
ing higher with a higher spring preload.
Finishing work
– Take the motorcycle off the front lifting gear. ( p. 95)
– Install the front fender. ( p. 107)
– Remove the rear of the motorcycle from the lifting gear.
( p. 94)
12.5 Compression damping of the shock absorber
The compression damping of the shock absorber is divided into two ranges: high-speed and low-speed.
High-speed and low-speed refer to the compression speed of the rear wheel suspension and not to the vehicle
speed.
The high-speed compression adjuster, for example, has an effect when riding over an asphalt edge: the rear wheel
suspension compresses quickly.
The low-speed compression adjuster has an effect, for example, when riding over long ground swells: the rear
wheel suspension compresses slowly.
These two ranges can be adjusted separately, although the transition between high-speed and low-speed is grad-
ual. Thus, modifications in the high-speed range affect the compression damping in the low-speed range and vice
versa.
12.6 Adjusting the low-speed compression damping of the shock absorber
Caution
Risk of injury Parts of the shock absorber will move around if the shock absorber is detached incorrectly.
The shock absorber is filled with highly compressed nitrogen.
– Please follow the description provided. (Your authorized KTM workshop will be glad to help.)
Info
The effect of the low-speed compression adjuster can be seen in slow to normal compression of the shock
absorber.
F02026-10
–
Turn adjusting screw
1
clockwise with a screwdriver as far as
the last perceptible click.
Info
Do not loosen fitting
2
!
– Turn counterclockwise by the number of clicks corresponding
to the shock absorber type.
