14 BRAKE SYSTEM
116
Note
Environmental hazard Hazardous substances cause environmental damage.
– Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with
the applicable regulations.
Info
Never use DOT 5 brake fluid. It is silicone-based and purple in color. Oil seals and brake lines are not
designed for DOT 5 brake fluid.
Avoid contact between brake fluid and painted parts. Brake fluid corrodes paint.
Only use clean brake fluid from a sealed container.
Preparatory work
– Check that the brake linings of the front brake are secured.
( p. 116)
G05948-11
Main work

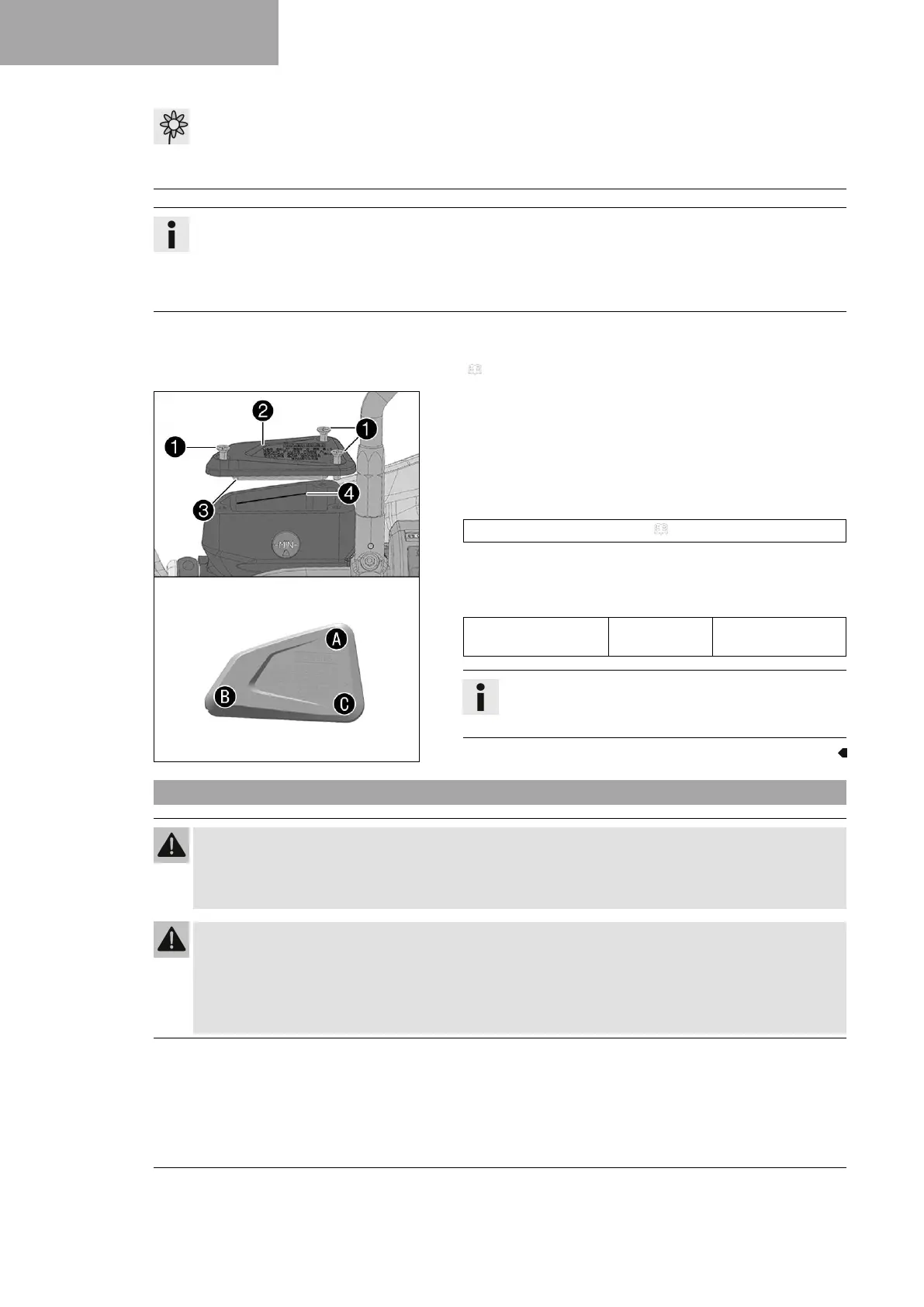

– Move the brake fluid reservoir mounted on the handlebar to a
horizontal position.
–
Remove screws
1
.
–
Take off cover
2
with membrane
3
.
–
Add brake fluid up to the marking
4
.
Brake fluid DOT 4 / DOT 5.1 ( p. 170)
–
Position cover
2
with membrane
3
.
–
Mount screws
1
and tighten in the order
A B C
.
Guideline
Brake fluid reservoir
cover, front
- 2 Nm (1.5 lbf ft)
Info
Use water to immediately clean up any brake fluid that
has overflowed or spilled.
14.5 Checking that the brake linings of the front brake are secured
Warning
Danger of accidents Worn-out brake linings reduce the braking effect.
– Ensure that worn-out brake linings are replaced immediately. (Your authorized KTM workshop will be
glad to help.)
Warning
Danger of accidents Damaged brake discs reduce the braking effect.
If the brake linings are not changed in time, the brake lining carriers grind against the brake disc. As a
consequence, the braking effect is greatly reduced and the brake discs are destroyed.
– Check the brake linings regularly.
