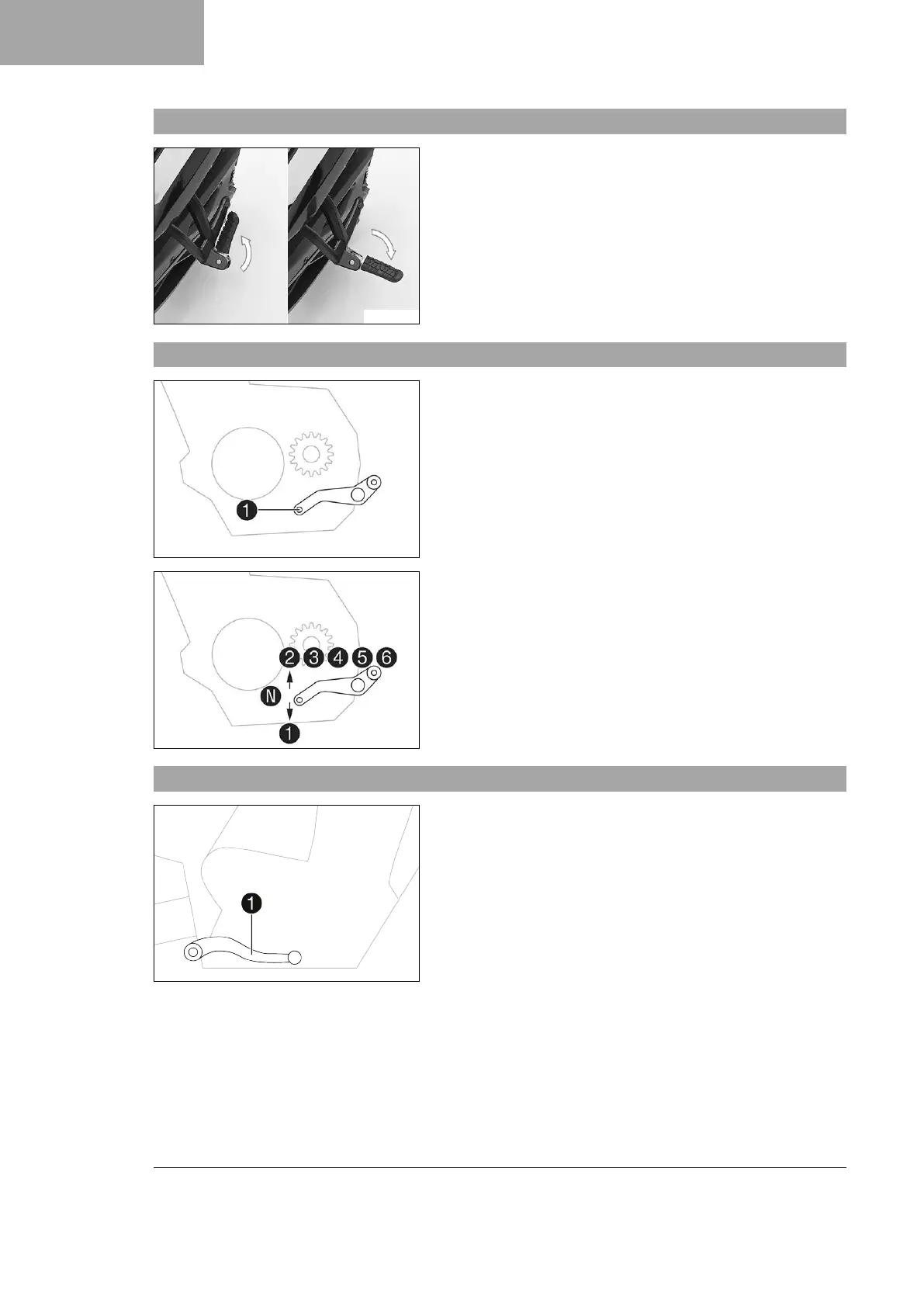

6.21 Passenger foot pegs
F02019-10
The passenger foot pegs can be folded up and down.
Possible states
• Passenger foot pegs folded up – For operation without a pas-
senger.
• Passenger foot pegs folded down – For operation with a pas-
senger.
6.22 Shift lever
V01271-11
Shift lever
1
is mounted on the left of the engine.
V01271-10
The gear positions can be seen in the figure.
The neutral or idle position is between the first and second gears.
6.23 Foot brake lever
402177-10
Foot brake lever
1
is located in front of the right footrest.
The rear brake is activated using the foot brake lever.
