KTM 890 ADVENTURE R 2023 User Manual

8 ERGONOMICS
68

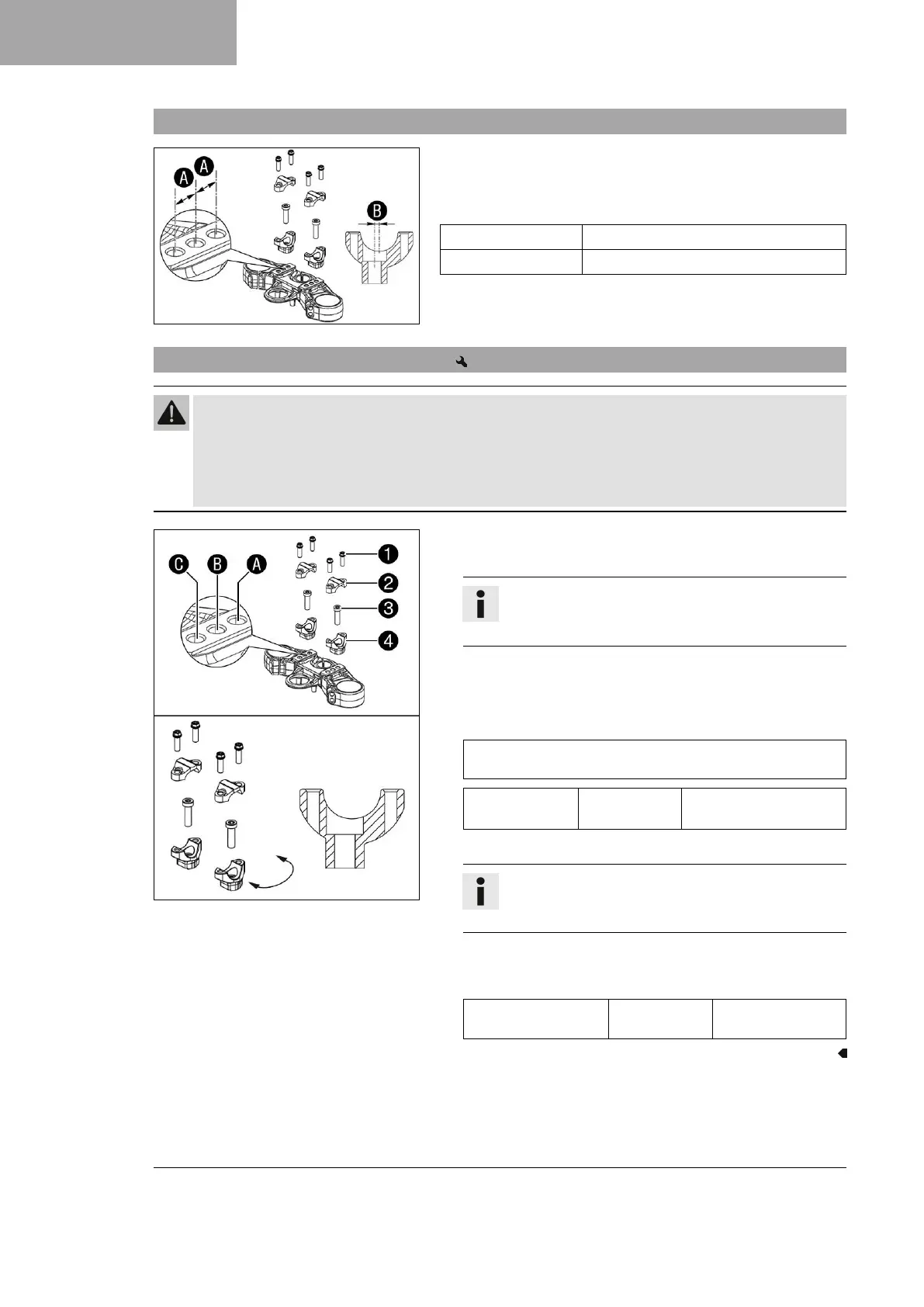

8.1 Handlebar position
F01906-10
On the upper triple clamp, there are three holes at a distance
of
A
to each other.
The holes on the handlebar support are placed at a distance of
B
from the center.
Hole distance
A
15 mm (0.59 in)
Hole distance
B
3.5 mm (0.138 in)
The handlebar can be mounted in six different positions. This
allows the handlebar to be mounted in the most comfortable posi-
tion for the rider.
8.2 Adjusting the handlebar position
Warning
Danger of accidents A repaired handlebar poses a safety risk.
If the handlebar is bent or straightened, the material becomes fatigued. The handlebar may break as a
result.
– Change the handlebar if the handlebar is damaged or bent.
F01907-10
–
Remove screws
1
. Take off the handlebar clamps
2
. Posi-
tion the handlebar so that screws
3
are accessible.
Info
Cover the components to protect them against damage.
Do not kink the cables and lines.
–
Remove screws
3
. Take off handlebar supports
4
.
–
Move the handlebar supports into the desired position
B
,
A
or
C
. Mount and tighten screws
3
.
Guideline
Mount the left and right handlebar supports in the same
position.
Screw, handle-
bar support
M10 45 Nm (33.2 lbf ft)
Loctite
®
243™
– Position the handlebar.
Info
Make sure the cables and wiring are positioned cor-
rectly.
–
Position handlebar clamp. Mount screws
1
and tighten
evenly.
Guideline
Screw, handlebar
clamp
M8 20 Nm (14.8 lbf ft)
