SERVICE WORK ON THE CHASSIS 13
109
– Clean and oil the dust boots and inside fork tubes of both fork
legs.
Universal oil spray ( p. 172)
– Press the dust boots back into the installation position.
– Remove the excess oil.
Finishing work
– Take the motorcycle off the front lifting gear. ( p. 95)
– Install the front fender. ( p. 107)
– Remove the rear of the motorcycle from the lifting gear.
( p. 94)

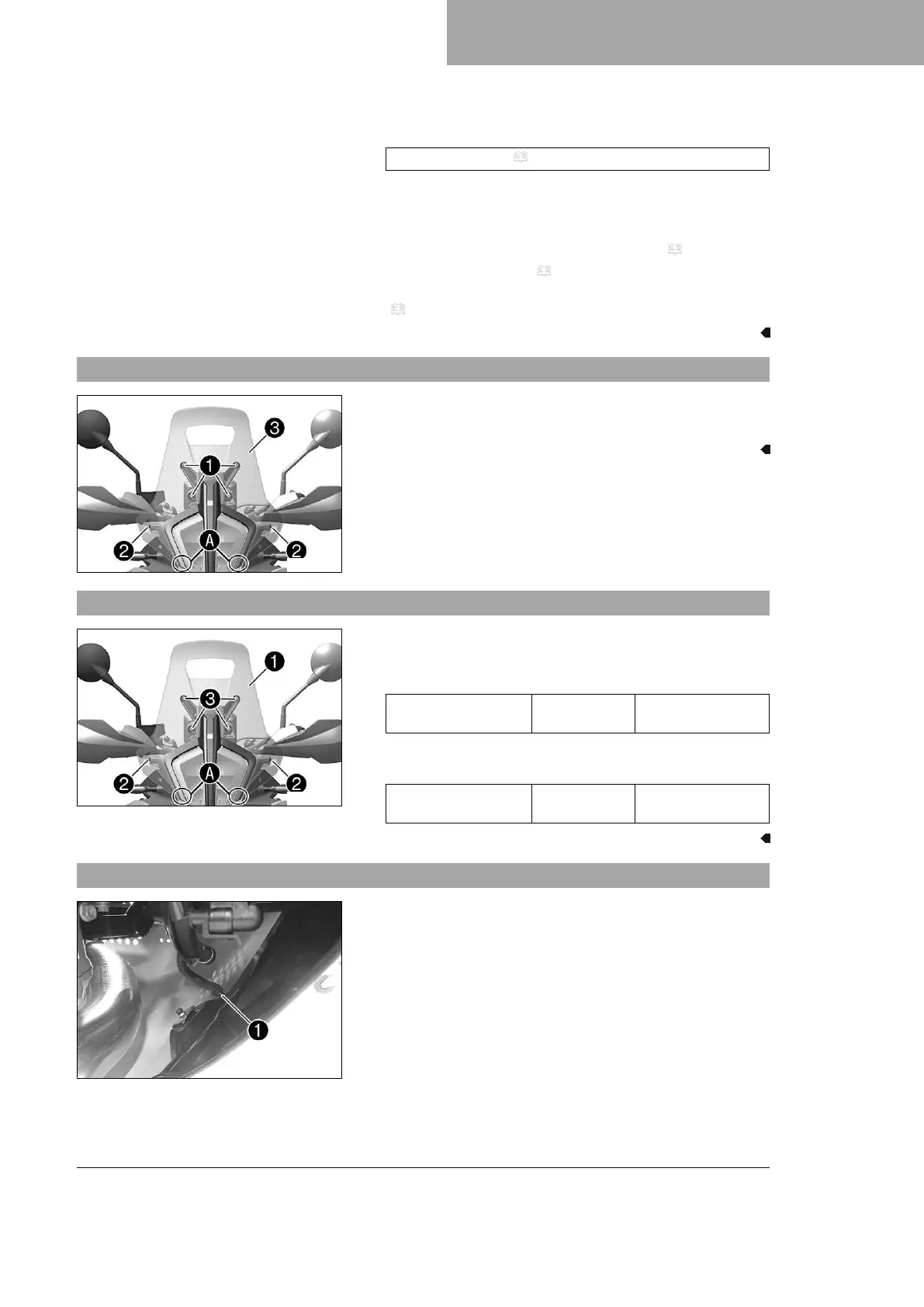

13.27 Removing the windshield
Z03266-10
–
Remove screws
1
.
–
Remove screws
2
and detach windshield
3
in area
A
.
13.28 Installing the windshield
Z03266-11
–
Hook windshield
1
into area
A
.
–
Mount and tighten screws
2
.
Guideline
Remaining screws,
chassis
M5 5 Nm (3.7 lbf ft)
–
Mount and tighten screws
3
.
Guideline
Remaining screws,
chassis
M5 5 Nm (3.7 lbf ft)
13.29 Removing the engine guard
Z03267-10
–
Pull out hose
1
from the angle piece.
