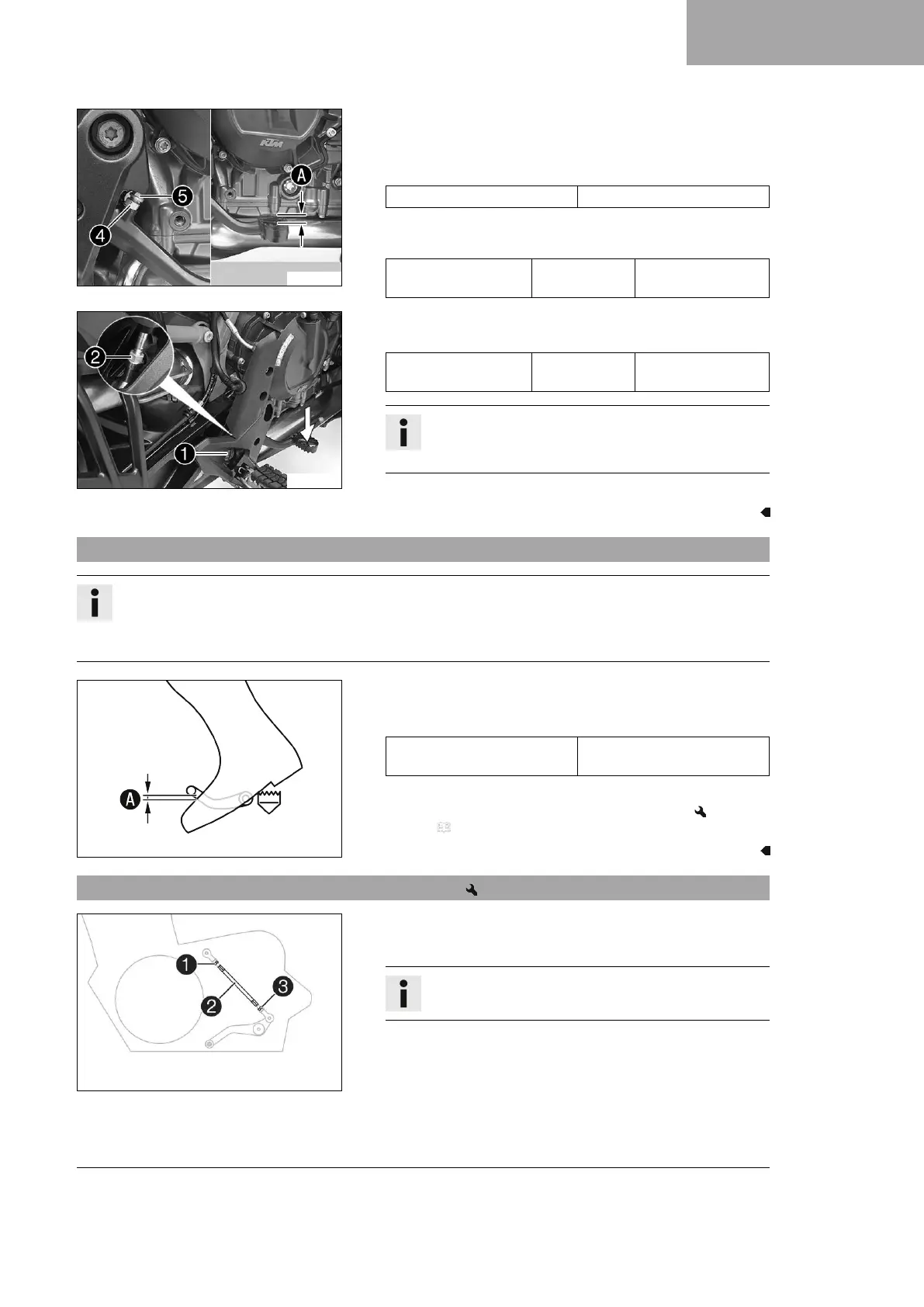

ERGONOMICS 8
71
F01921-10
–
Loosen nut
4
and turn screw
5
correspondingly until the
free travel
A
is present. If necessary, adjust the basic posi-
tion of the foot brake lever.
Guideline
Free travel at foot brake lever 3 … 5 mm (0.12 … 0.2 in)
–
Hold screw
5
and tighten nut
4
.
Guideline
Nut, foot brake lever
adjustment
M6 6 Nm (4.4 lbf ft)
F02022-11
–
Tighten nut
2
.
Guideline
Nut, push rod, foot
brake lever
M6 6 Nm (4.4 lbf ft)
Tip
Press the foot brake lever downwards to make this eas-
ier.
–
Attach spring
1
.
8.7 Checking the basic position of the shift lever
Info
When driving, the shift lever must not touch the rider's boot when in the basic position.
If the shift lever is permanently touching the boot, the transmission will be subject to excessive load; this
can cause a malfunction of the quickshifter + (optional).
400692-10
– Sit on the vehicle in the riding position and determine
distance
A
between the upper edge of your boot and the shift
lever.
Distance between shift lever
and upper edge of boot
10 … 20 mm (0.39 …
0.79 in)
» If the distance does not meet specifications:
– Adjust the basic position of the shift lever.
( p. 71)
8.8 Adjusting the basic position of the shift lever
H02668-10
–
Loosen nut
1
, holding threaded rod
2
.
–
Loosen nut
3
, holding threaded rod
2
.
Info
Nut
3
has a left-handed thread.
–
Turn threaded rod
2
to adjust the shift lever.
