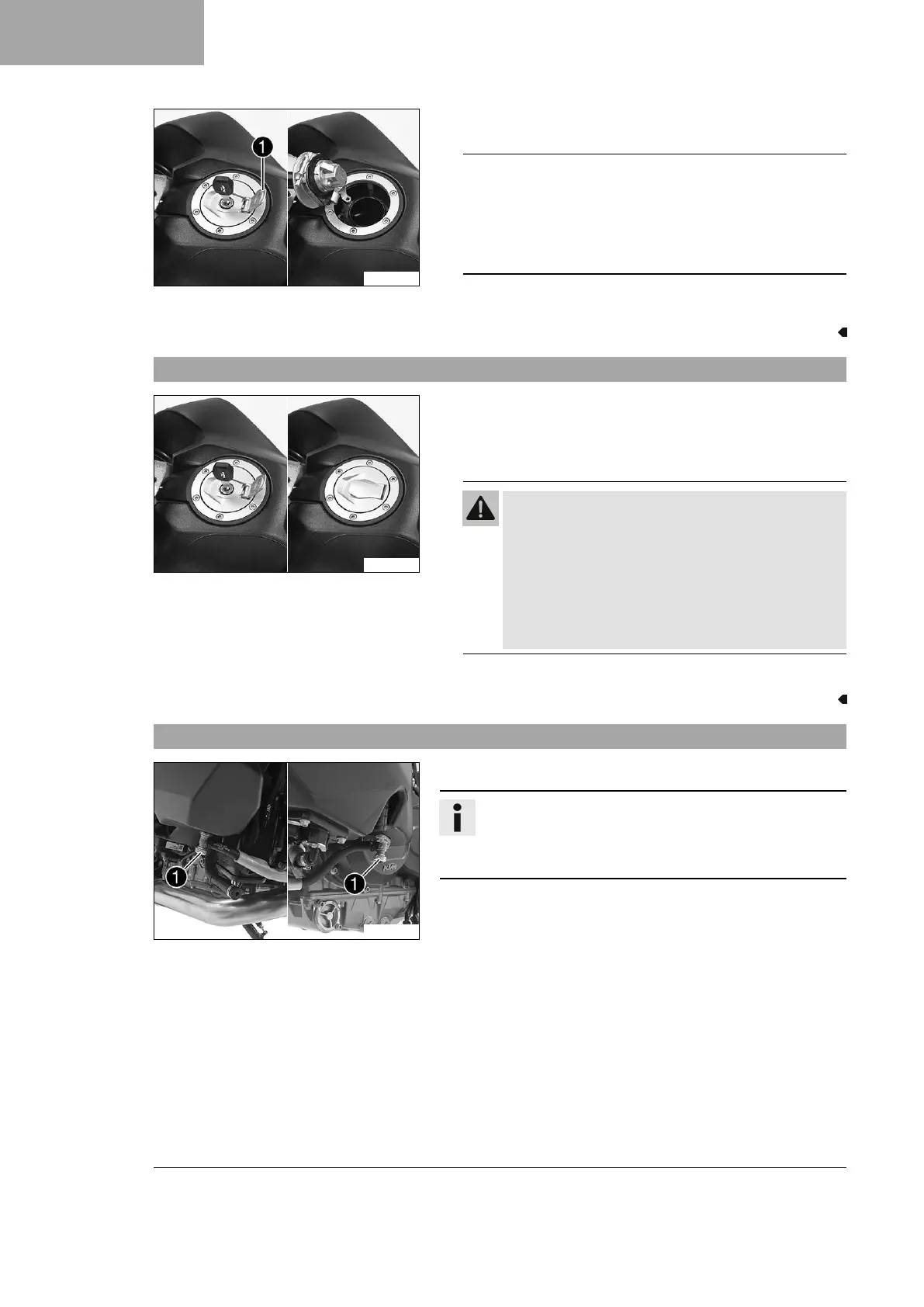

Lift cover
1
of the fuel tank filler cap and insert the ignition
key into the lock.
Note
Danger of damage The ignition key may break if overloaded.
Damaged ignition keys must be replaced.
– Push down on the fuel tank filler cap to take pressure off
the ignition key.
– Turn the ignition key 90° clockwise.
– Lift the fuel tank filler cap.
6.11 Closing the fuel tank filler cap
F02011-01
– Fold down the fuel tank filler cap.
– Turn the ignition key 90° clockwise.
– Push down the fuel tank filler cap and turn the ignition key
counterclockwise until the lock closes.
Warning
Fire hazard Fuel is highly flammable and a health
hazard.
– Check that the fuel tank filler cap is locked cor-
rectly after closing.
– Change your clothing if fuel spills on them.
– Rinse the affected area immediately with plenty of
water in the event of contact with the skin.
– Remove the ignition key and close the cover.
6.12 Fuel cocks
F02115-10
A fuel cock
1
is located on each side of the fuel tank.
Info
The fuel cocks are located behind the fuel tank covers.
The fuel cocks must always be open during operation.
The fuel cocks are only closed to remove the fuel tank.
Possible states
• Fuel cocks are closed – Level equalization cannot take place
and the fuel supply to the throttle valve body is shut off.
• Fuel cocks are open – Level equalization can take place and
the fuel supply to the throttle valve body is open.
