2-M9
F2880, F3680, RCK72-F36, RCK72R-F36, RCK60-F36, RCK60R-F36, WSM
TRANSMISSION

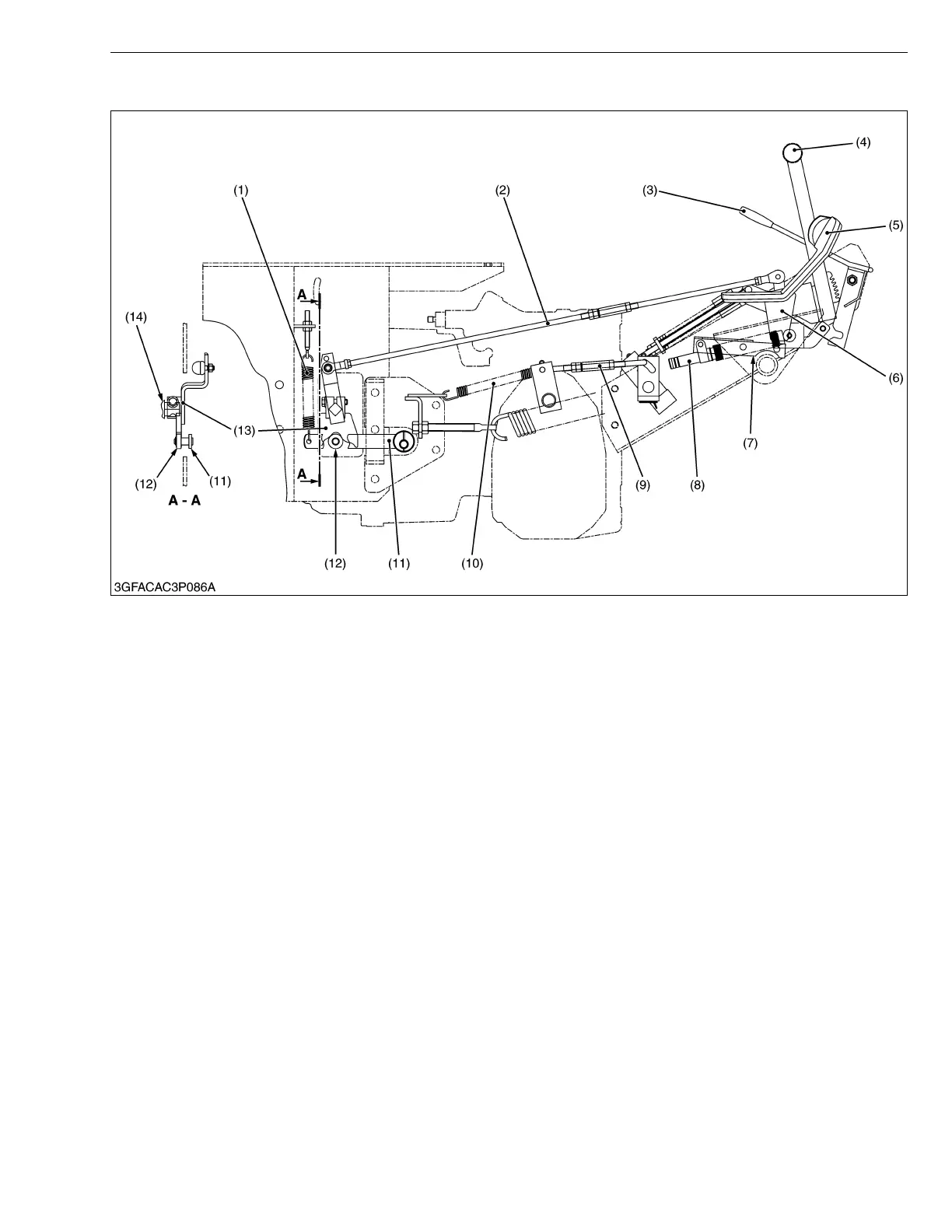

(6) Control Linkage
The speed control pedal (5) and the trunnion shaft (14) of the variable swashplate are linked with the speed control
bracket (6), speed control rod (2), and speed change arm (13).
As the front footrest of the pedal is depressed, the swashplate rotates and forward traveling speed increases.
Depressing the rear footrest increase reverse speed.
Then, the swashplate is returned to neutral with the speed change arm (13), when the pedal is released.
The damper (8) is connected to the speed control pedal (5) linked with the speed control bracket (6) and damper
stay (7), restrict the movement of the linkage to prevent abrupt operation or reversing.
The ball bearing (12) on the neutral arm (11) seats the detent of the speed change arm (13) so that the speed
change arm (13) returns to neutral.
(1) Neutral Spring
(2) Speed Control Rod
(3) Brake Lock Lever
(4) Main Brake Pedal
(5) Speed Control Pedal
(6) Speed Control Bracket
(7) Damper Stay
(8) Damper
(9) Brake Rod 1
(10) Brake Return Spring
(11) Neutral Arm
(12) Ball Bearing
(13) Speed Change Arm
(14) Trunion Shaft
