9-S16
F2880, F3680, RCK72-F36, RCK72R-F36, RCK60-F36, RCK60R-F36, WSM
MOWER
[2] PREPARATION

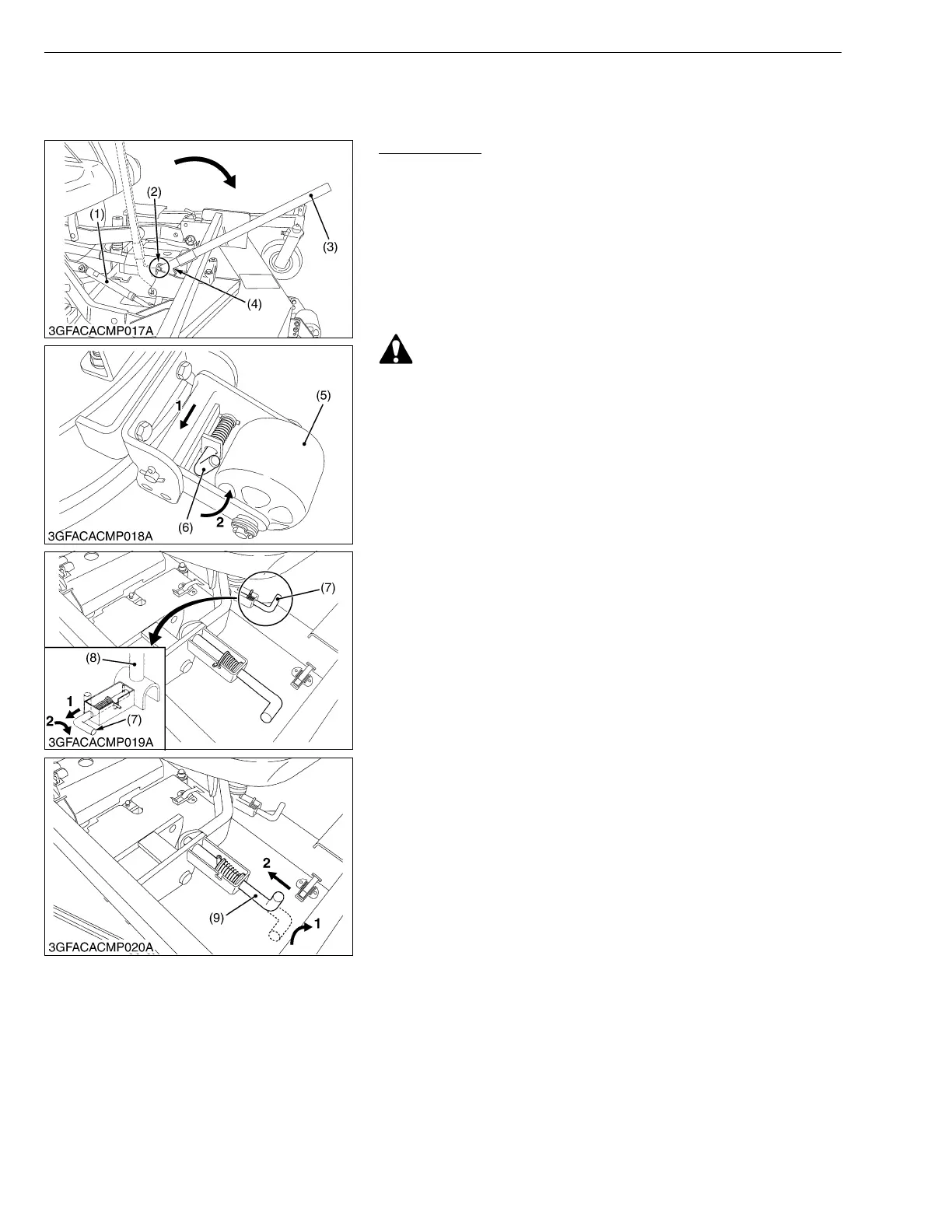

(1) Mower Tilt Up
Mower Tilt Up
1. Place PTO lever in “DISENGAGE” position.
2. Stop the engine, set the parking brake.
3. Place High-Low gear shift lever in “NEUTRAL” position.
4. Disconnect the universal joint from the machine.
5. [RCK72-F36 / RCK72R-F36]
Detach the tilt pipe (3) set in the mower deck, and insert the tilt
lever (4) in the tilt pipe (3).
Pull the tilt pipe (3) in the direction of the arrow, and hook the tilt
lever (4).
CAUTION
• Securely insert the tilt lever (4) in the tilt pipe (3).
• Never release the tilt pipe (3) until the tilt lever (4) is locked
to the hook securely.
6. Start the engine and raise the mower deck fully.
7. Lock the lowering speed adjusting valve.
8. Stop the engine and remove the key.
9. Pull on the lock pins (6) of the anti-scalp roller (5) and push them
upward.
10.Pull on the lock pins (7) of the lift rods (8) and lock them in the
open position.
11.Disengage the lock of the tilting pin (9).
W1016339
(1) Gas Spring
(2) Hook
(3) Tilt Pipe
(4) Tilt Lever
(5) Anti-Scalp Roller
(6) Lock Pin
(7) Lock Pin
(8) Lift Rod
(9) Lock Pin
To Next Page
