2-M15
F2880, F3680, RCK72-F36, RCK72R-F36, RCK60-F36, RCK60R-F36, WSM
TRANSMISSION

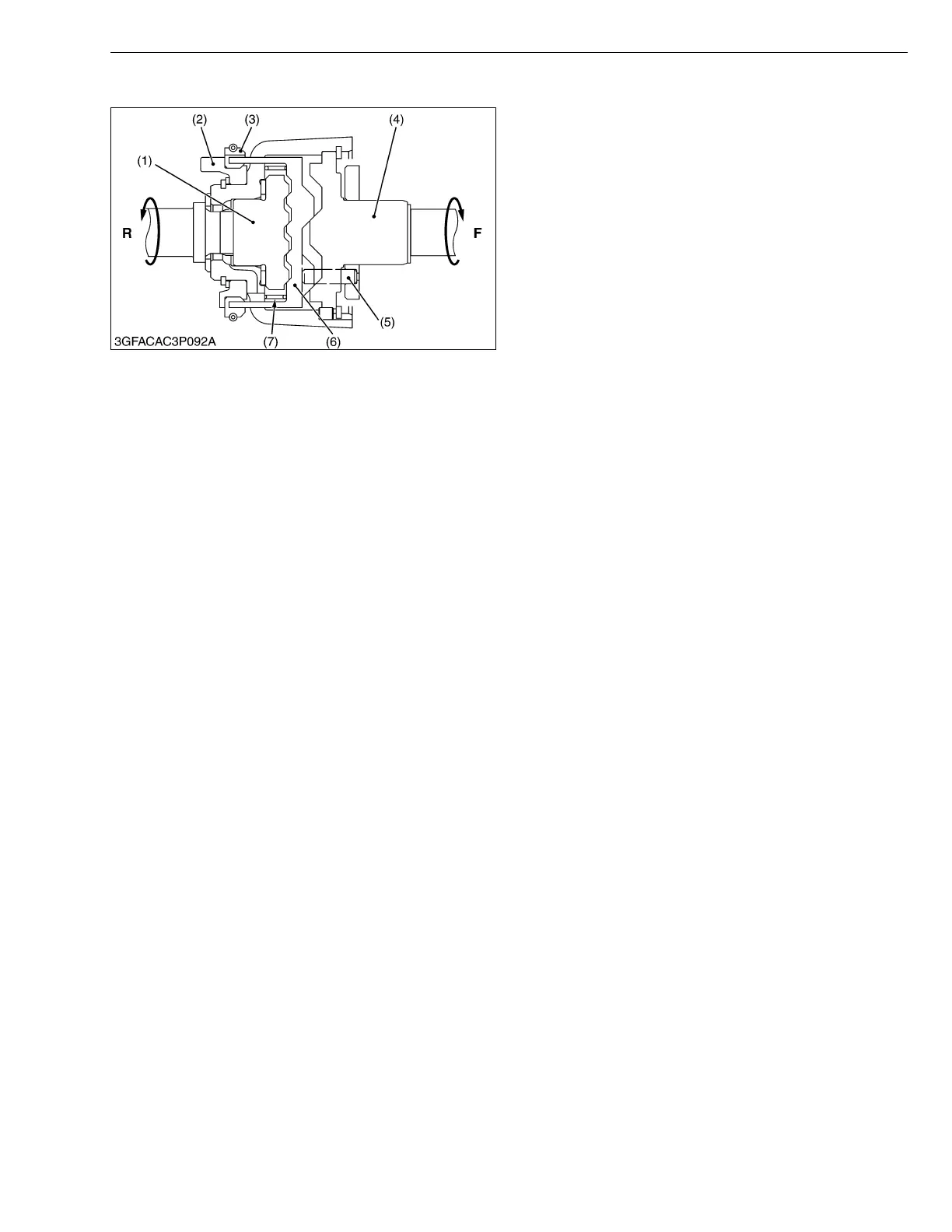

(2) Basic Actions in Full-Time 4WD Mode
When the clutch lever of the dual-acting overrunning
4WD is set at the full-time 4WD position, the shift fork
starts turning to push the clutch bracket (5) to the left. By
this, the center cam (6) comes into contact with the
driven cam (4). Now the four wheels are driven.
W1017500
(1) Driven Cam
(2) Brake Ring
(3) Brake Shoe
(4) Drive Cam
(5) Center Cam
(6) Return Spring
F : Front Side
R : Rear Side
