ENGINE
4. FUEL SYSTEM
Fuel from the fuel tank (5) passes through the fuel filter (2), and then enters the injection pump (7) after impurities
such as dirt, water, etc. are removed.
The fuel pressurized by the injection pump (7) to the opening pressure (13.73 to 14.71 MPa, 140 to 150 kgf/cm
2
,
1991 to 2133 psi), of the injection nozzle (4) is injected into the combustion chamber.
Part of the fuel fed to the injection nozzle (4) lubricates the moving parts of the plunger inside the nozzle, then
returns to the fuel tank through the fuel overflow pipe (1) from the upper part of the nozzle holder.

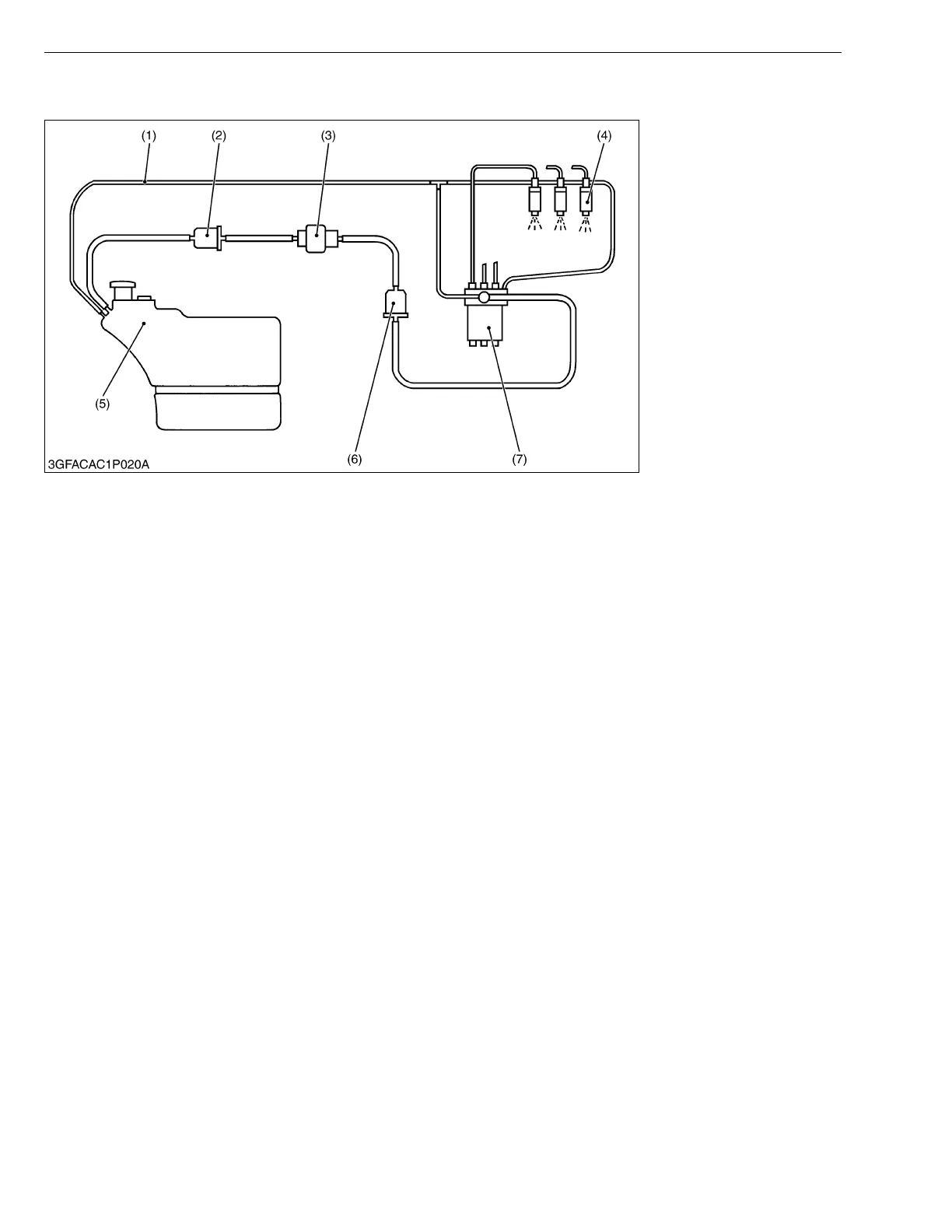

(1) Fuel Overflow Pipe
(2) Fuel Filter
(3) Fuel Pump
(4) Injection Nozzle
(5) Fuel Tank
(6) Fuel Filter
(7) Injection Pump
