HYDRAULIC SYSTEM
(2) Hydraulic Cylinder Assembly
Battery
CAUTION
• When disconnecting the battery cables, disconnect the
negative cable from the battery first.
When connecting, connect the positive cable to the battery
first.

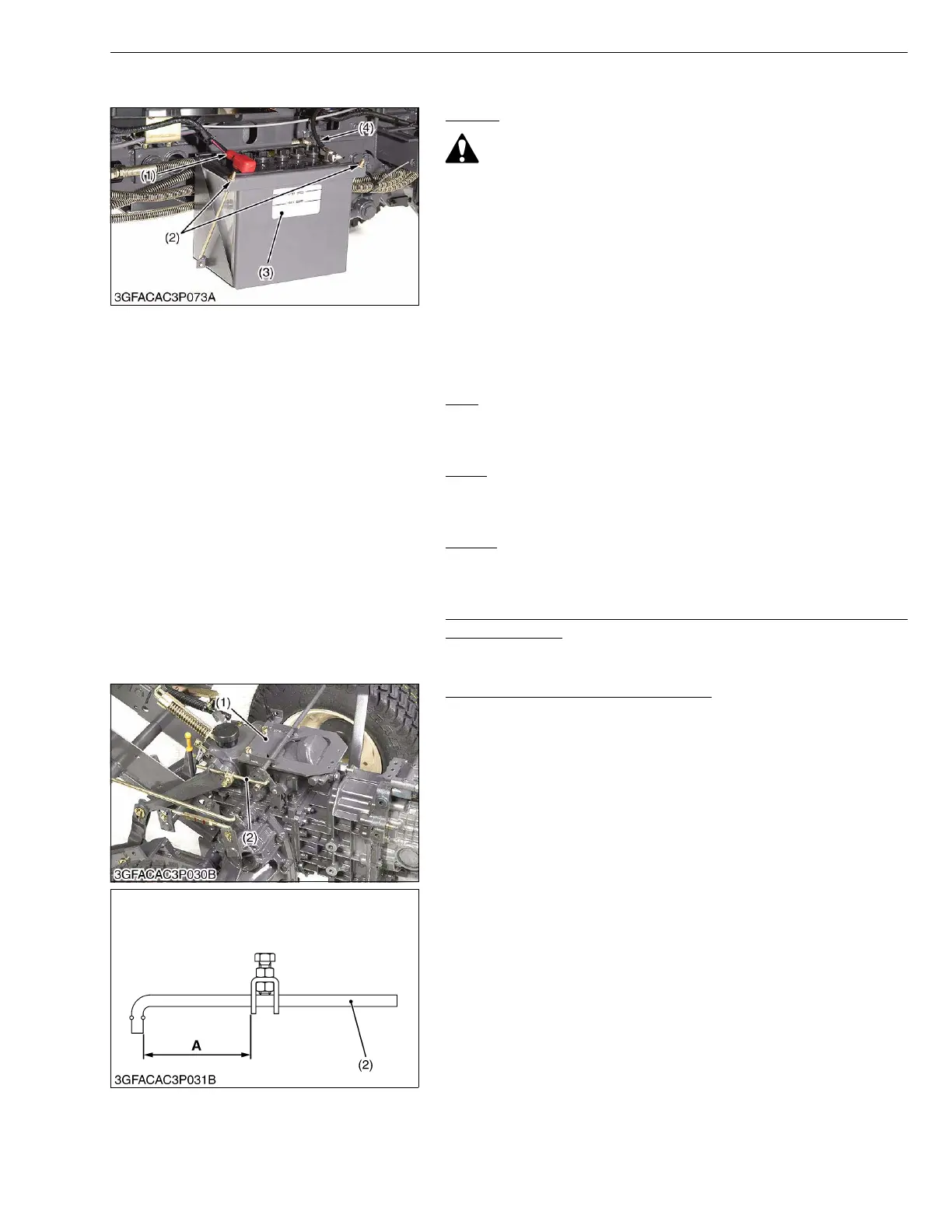

1. Disconnect the negative cable (4) from the battery.
2. Disconnect the positive cable (1) from the battery.
3. Unscrew the battery mounting nuts (2), and remove the battery
(3).
W1021027
Seat
Refer to “TRANSMISSION” Section. (See page 2-S11.)
W1021463
Panel
Refer to “TRANSMISSION” Section. (See page 2-S11.)
W1021499
Fender
Refer to “TRANSMISSION” Section. (See page 2-S12.)
W1021535
Speed Control Rod, Lowering Speed Adjusting Rod and
Hydraulic Pipes
Refer to “TRANSMISSION” Section. (See page 2-S13.)
W1021571
Feedback Rod and Mower Lift Lever
1. Remove the feedback rod (2).
2. Remove the hydraulic control lever assembly (1).
(When reassembling)
• Adjust the length “A” of the feedback rod (2).
(Reference)
• Length “A” : 75 to 76 mm (2.96 to 2.99 in.)
W1021616
(1) Positive Cable
(2) Battery Mounting Nut
(3) Battery
(4) Negative Cable
(1) Mower Lift Lever Assembly (2) Feedback Rod
