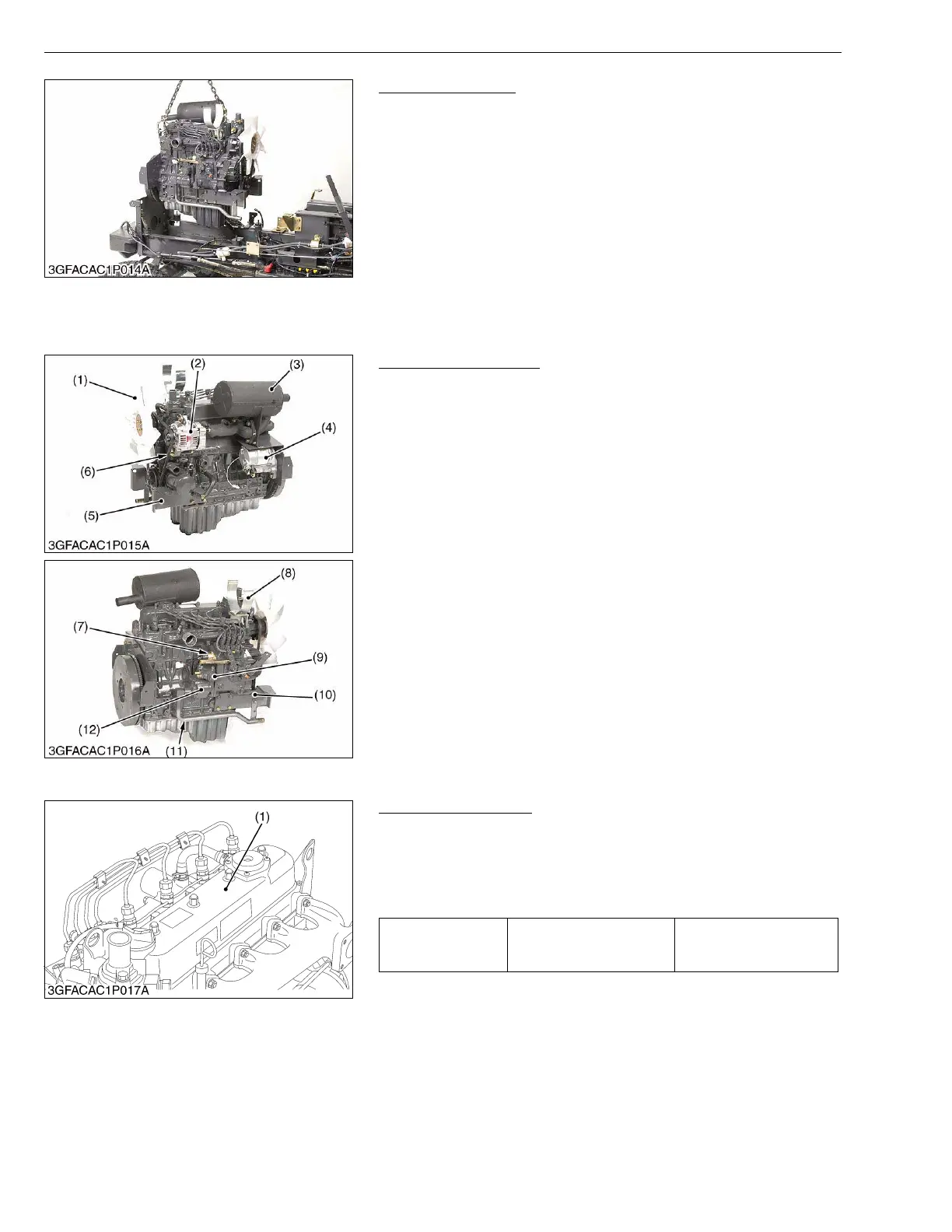

ENGINE
Separating Engine
1. Unscrew the engine mounting nuts, and support the engine with
an engine lift hook and hoist.
2. Separate the engine from the frame.
W1059769
[3] DISASSEMBLING AND ASSEMBLING
(1) External Components
External Components
1. Remove the alternator (2) and the fan belt (6).
2. Remove the cooling fan (1).
3. Remove the muffler (3) and the starter (4).
4. Remove the air cleaner stay (8).
5. Remove the engine stop solenoid (7).
6. Remove the flow priority valve (9).
7. Remove the hydraulic pump (12) with the rear suction pipe (11).
8. Remove the engine support LH (5) and RH (10).
W1052233
(2) Cylinder Head and Valve
Cylinder Head Cover
1. Disconnect the breather hose.
2. Remove the head cover nut.
3. Remove the cylinder head cover (1).
(When reassembling)
• Check to see if the cylinder head cover gasket is not defective.
W1028468
(1) Cooling Fan
(2) Alternator
(3) Muffler
(4) Starter
(5) Engine Support LH
(6) Fan Belt
(7) Engine Stop Solenoid
(8) Air Cleaner Stay
(9) Flow Priority Valve
(10) Engine Support RH
(11) Rear Suction Pipe
(12) Hydraulic Pump
Tightening torque Cylinder head cover nut
6.9 to 8.8 N·m
0.7 to 0.9 kgf·m
5.1 to 6.5 ft-lbs
(1) Cylinder Head Cover
