Kubota WSM RCK60-F36 User Manual

2-S25
F2880, F3680, RCK72-F36, RCK72R-F36, RCK60-F36, RCK60R-F36, WSM
TRANSMISSION

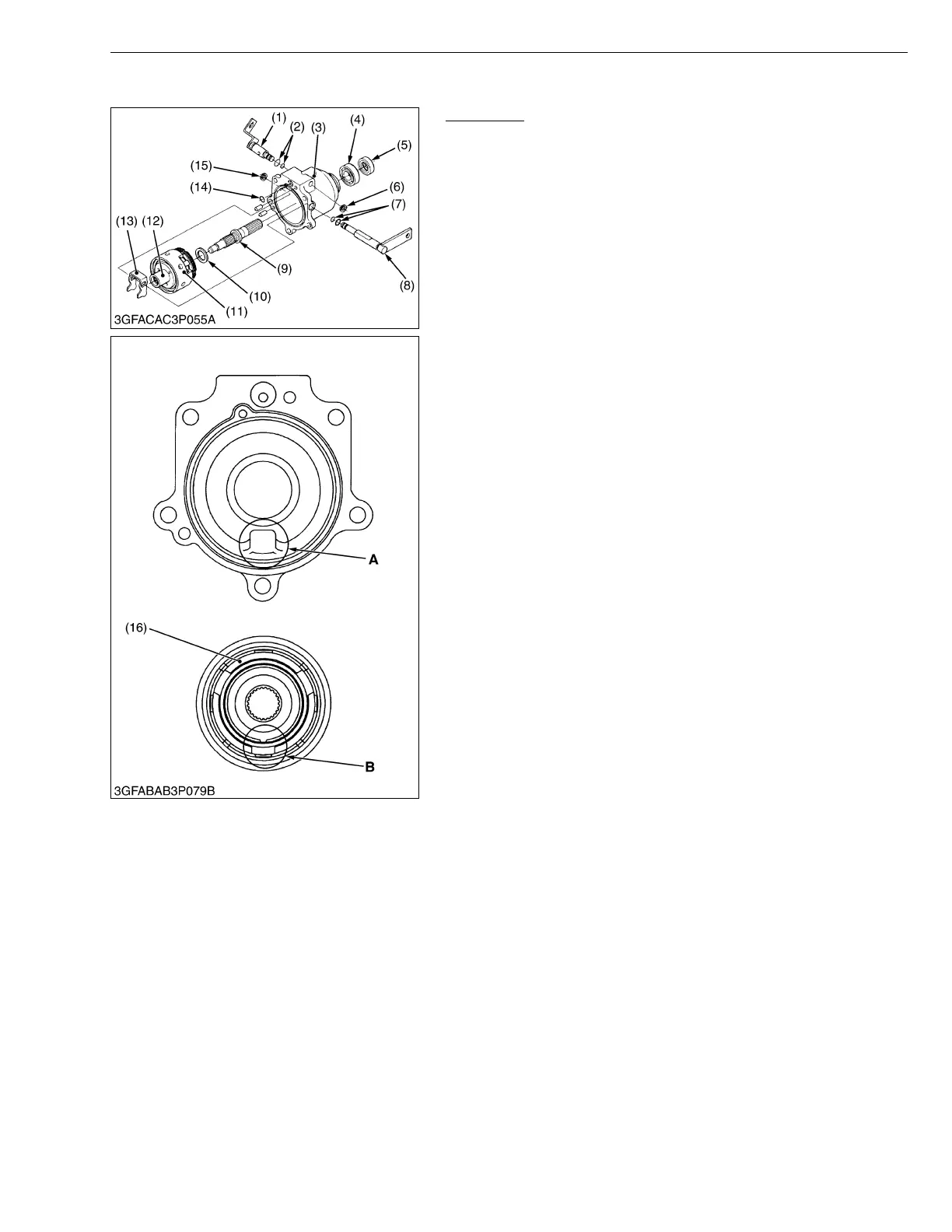

(3) RWD Case
RWD Case
1. Remove the external snap ring (6) and pull out the PTO control
valve (1).
2. Remove the external snap ring (15) and pull out the shift rod (8),
and remove the shift fork (13).
3. Remove the dual-acting overrunning clutch (11) and thrust collar
(10) from RWD shaft 2 (9).
4. Pull out RWD shaft 2 (9) from RWD case (3).
5. Remove the clutch bracket (12) from the dual-acting overrunning
clutch.
(When reassembling)
• Take care not to damage the O-rings (7) on the shift rod (8).
NOTE
■
• When inserting the shift rod (8), take care not to damage the
surface of shift rod.
• Apply transmission oil to the thrust collar (10).
• When assembling the dual-acting overrunning clutch (11)
into RWD shaft 2 (9), aligning the positions (A), (B) as shown
in the figure.
W1024639
(1) PTO Control Valve
(2) O-ring
(3) RWD Case
(4) Ball Bearing
(5) Oil Seal
(6) External Snap Ring
(7) O-ring
(8) Shift Rod
(9) RWD Shaft 2
(10) Thrust Collar
(11) Dual-acting Overrunning Clutch
(12) Clutch Bracket
(13) Shift Fork
(14) O-ring
(15) External Snap Ring
(16) Brake Ring
(Dual-acting Overrunning Clutch)
KiSC issued 04, 2006 A
