Kubota WSM RCK60-F36 User Manual

5-S12
F2880, F3680, RCK72-F36, RCK72R-F36, RCK60-F36, RCK60R-F36, WSM
REAR AXLE
[4] SERVICING

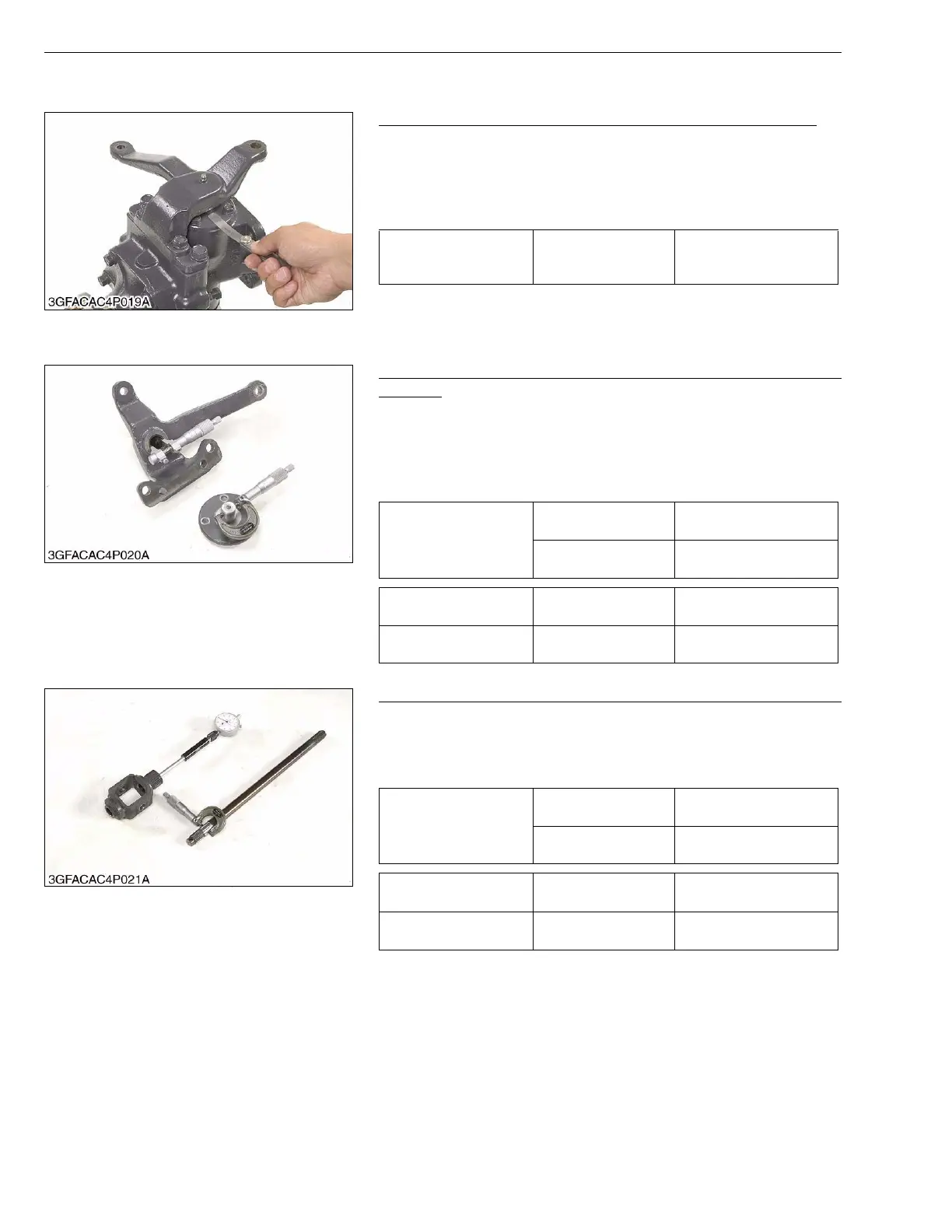

Clearance between Knuckle Arm Support and Knuckle Arm
1. Tighten the knuckle arm mounting screws to the specified torque.
2. Measure the clearance between the knuckle arm support and
knuckle arm with a feeler gauge.
3. If the measurement is not within the factory specifications, adjust
with shims between the knuckle arm and rear axle case.
(Reference)
• Thickness of shims :
0.5 mm (0.020 in.), 0.3 mm (0.012 in.), 0.2 mm (0.008 in.)
W1020280
Clearance between Knuckle Arm Support and Knuckle Arm
Bushing
1. Measure the knuckle arm support O.D. with an outside
micrometer.
2. Measure the knuckle arm bushing I.D. with an inside micrometer,
and calculate the clearance.
3. If the clearance exceeds the allowable limit, replace the bushing.
W1020423
Clearance between Differential Case and Differential Yoke Shaft
1. Measure the differential yoke shaft O.D..
2. Measure the differential case bore I.D., and calculate the
clearance.
3. If the clearance exceeds the allowable limit, replace faulty parts.
W1020615
Clearance between
knuckle arm support and
knuckle arm
Factory spec.
0.1 to 0.3 mm
0.0040 to 0.0118 in.
Clearance between
knuckle arm support and
knuckle arm bushing
Factory spec.
0.02 to 0.11 mm
0.0008 to 0.0043 in.
Allowable limit
0.4 mm
0.0157 in.
Knuckle arm support
O.D.
Factory spec.
20.00 to 20.03 mm
0.7874 to 0.7886 in.
Knuckle arm bushing
I.D.
Factory spec.
20.05 to 20.11 mm
0.7894 to 0.7917 in.
Clearance between
differential case and
differential yoke shaft
Factory spec.
0.020 to 0.054 mm
0.00080 to 0.00211 in.
Allowable limit
0.20 mm
0.0079 in.
Differential case bore
I.D.
Factory spec.
20.000 to 20.021 mm
0.78741 to 0.78822 in.
Differential yoke shaft
O.D.
Factory spec.
19.967 to 19.980 mm
0.78611 to 0.78661 in.
KiSC issued 04, 2006 A
