Kubota WSM RCK60-F36 User Manual

2-M10
F2880, F3680, RCK72-F36, RCK72R-F36, RCK60-F36, RCK60R-F36, WSM
TRANSMISSION

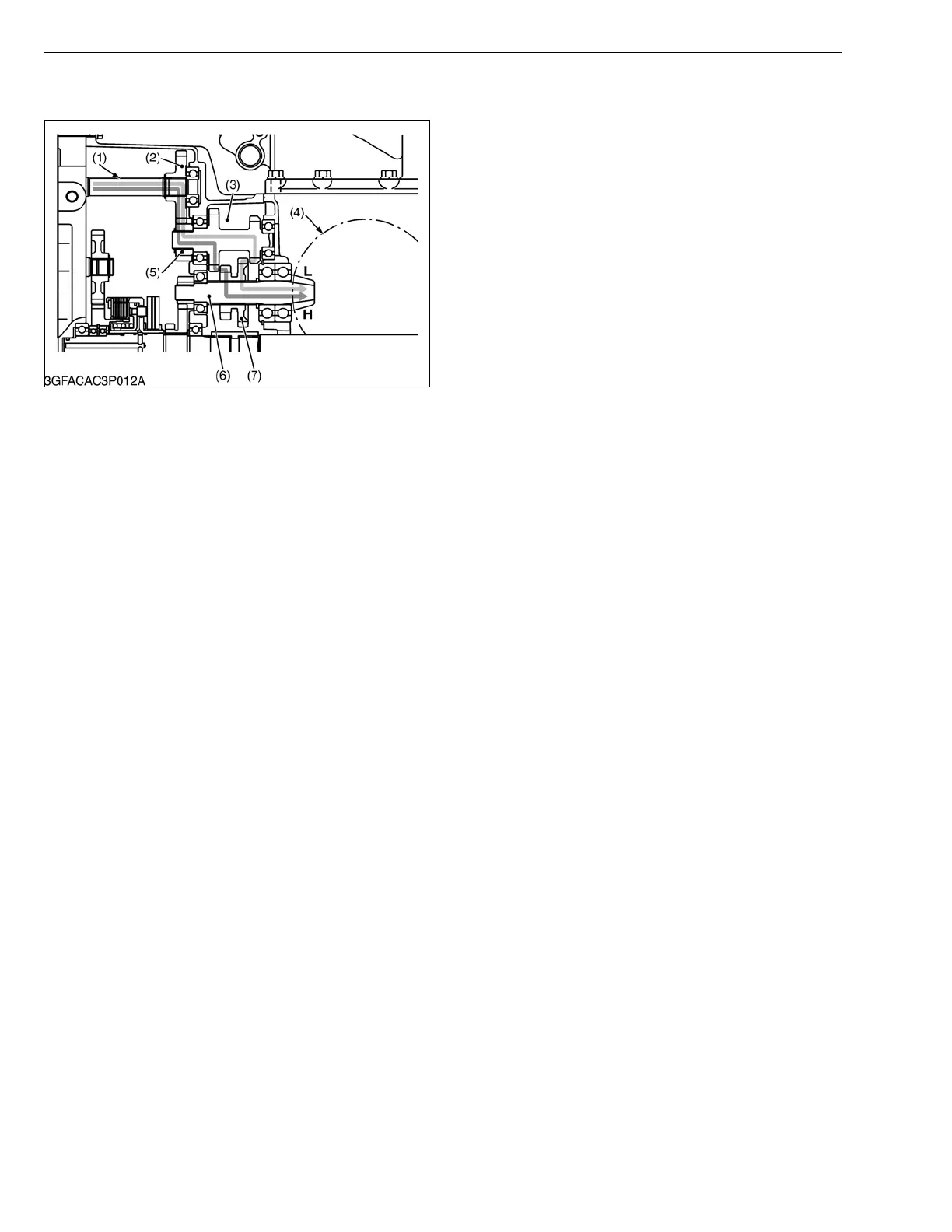

3. RANGE GEAR SHIFT SECTION
Two kinds of power flow are selected by operating the
range gear shift lever to shift the 15T - 26T gear (7) on
the bevel pinion shaft (6).
■ Low Range
Motor Shaft (1) → 28T Gear (2) → 15T Gear (5) →
(18T -) 17T Gear Shaft (3) → (15T -) 26T Gear (7) →
Bevel Pinion Shaft (6) → Differential Gear (4).
■ High Range
Motor Shaft (1) → 28T Gear (2) → 15T Gear (5) →
18T (- 17T) Gear Shaft (3) → 15T (- 26T) Gear (7) →
Bevel Pinion Shaft (6) → Differential Gear (4).
W1015959
(1) Motor Shaft
(2) 28T Gear
(3) 18T - 17T Gear Shaft
(4) Differential Gear
(5) 15T Gear
(6) Bevel Pinion Shaft
(7) 15T - 26T Gear
KiSC issued 04, 2006 A
