2-S10
F2880, F3680, RCK72-F36, RCK72R-F36, RCK60-F36, RCK60R-F36, WSM
TRANSMISSION
[2] PREPARATION

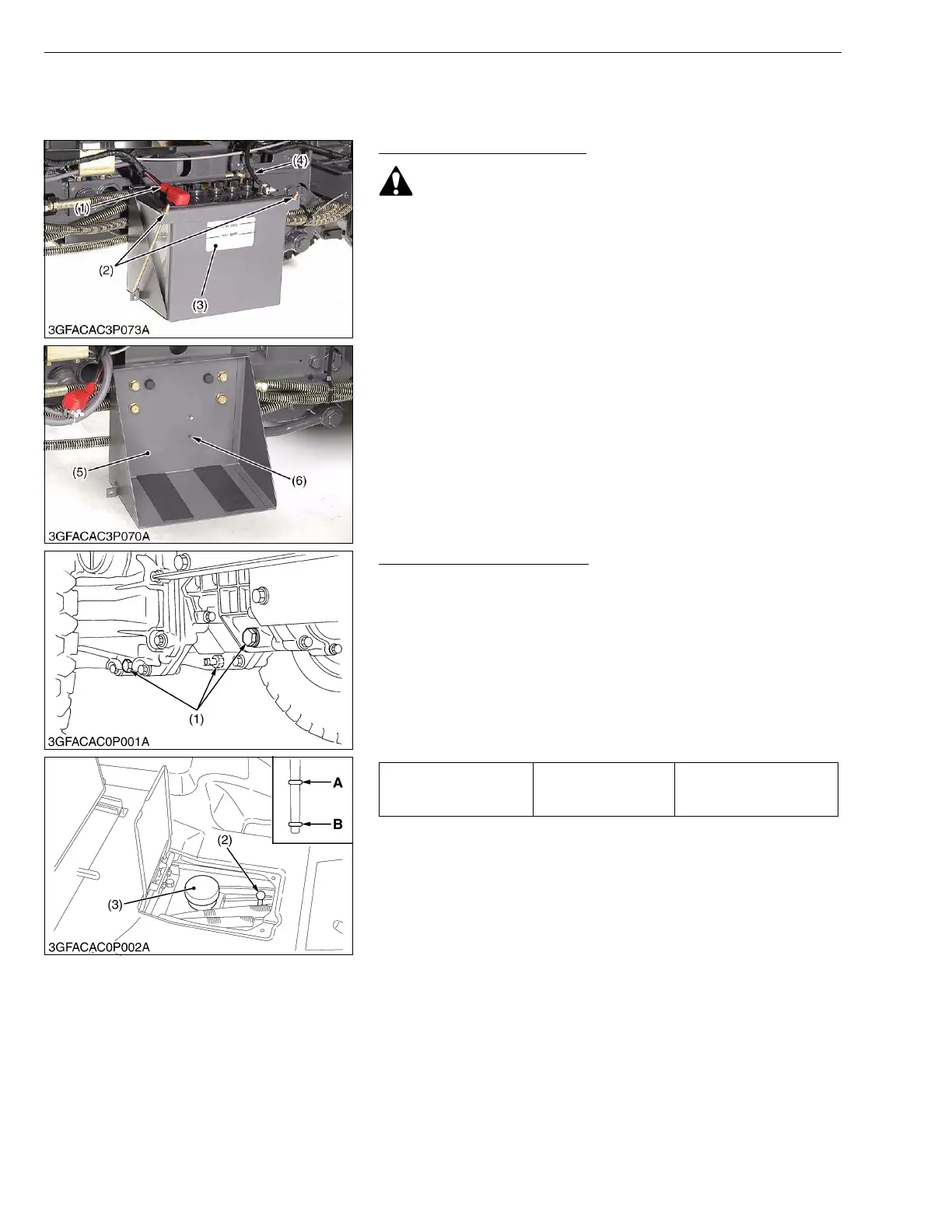

(1) Separating Transmission Assembly
Battery and Battery Support
CAUTION
• When disconnecting the battery cables, disconnect the
negative cable from the battery first.
• When connecting, connect the positive cable to the battery
first.
1. Disconnect the negative cable (4) from the battery.
2. Disconnect the positive cable (1) from the battery.
3. Unscrew the battery mounting nuts (2), and remove the battery
(3).
4. Push out the wiring clip (6) with the wiring from the hole of the
battery support (5).
5. Unscrew the battery support mounting screws, and remove the
battery support (5).
Draining Transmission Fluid
1. Place oil pans underneath the transmission case.
2. Remove the drain plugs (1).
3. Drain the transmission fluid.
4. After draining, reinstall the three drain plug and tighten.
(When reassembling)
• Fill the transmission fluid from oil inlet (3) up to the upper line on
the dipstick (2).
• After running the engine for few minutes, stop it and check the
fluid level again, add the fluid to prescribed level if it is not correct
level.
■
• Use only KUBOTA SUPER UDT fluid. Use of other oils may
damage the transmission or hydraulic system.
• Refer to “LUBRICANTS, FUEL AND COOLANT” (See page
G-7.).
• Do not mix different brands fluid together.
W1012046
(1) Positive Cable
(2) Battery Mounting Nut
(3) Battery
(4) Negative Cable
(5) Battery Support
(6) Wiring Clip
Transmission fluid Capacity
14.0 L
14.8 U.S.qts
12.3 Imp.qts
(1) Drain Plug
(2) Dipstick
(3) Oil Inlet
A : Upper Level
B : Lower Level
To Next Page
