5-S4
F2880, F3680, RCK72-F36, RCK72R-F36, RCK60-F36, RCK60R-F36, WSM
REAR AXLE
4. CHECKING, DISASSEMBLING AND SERVICING
[1] CHECKING AND ADJUSTING

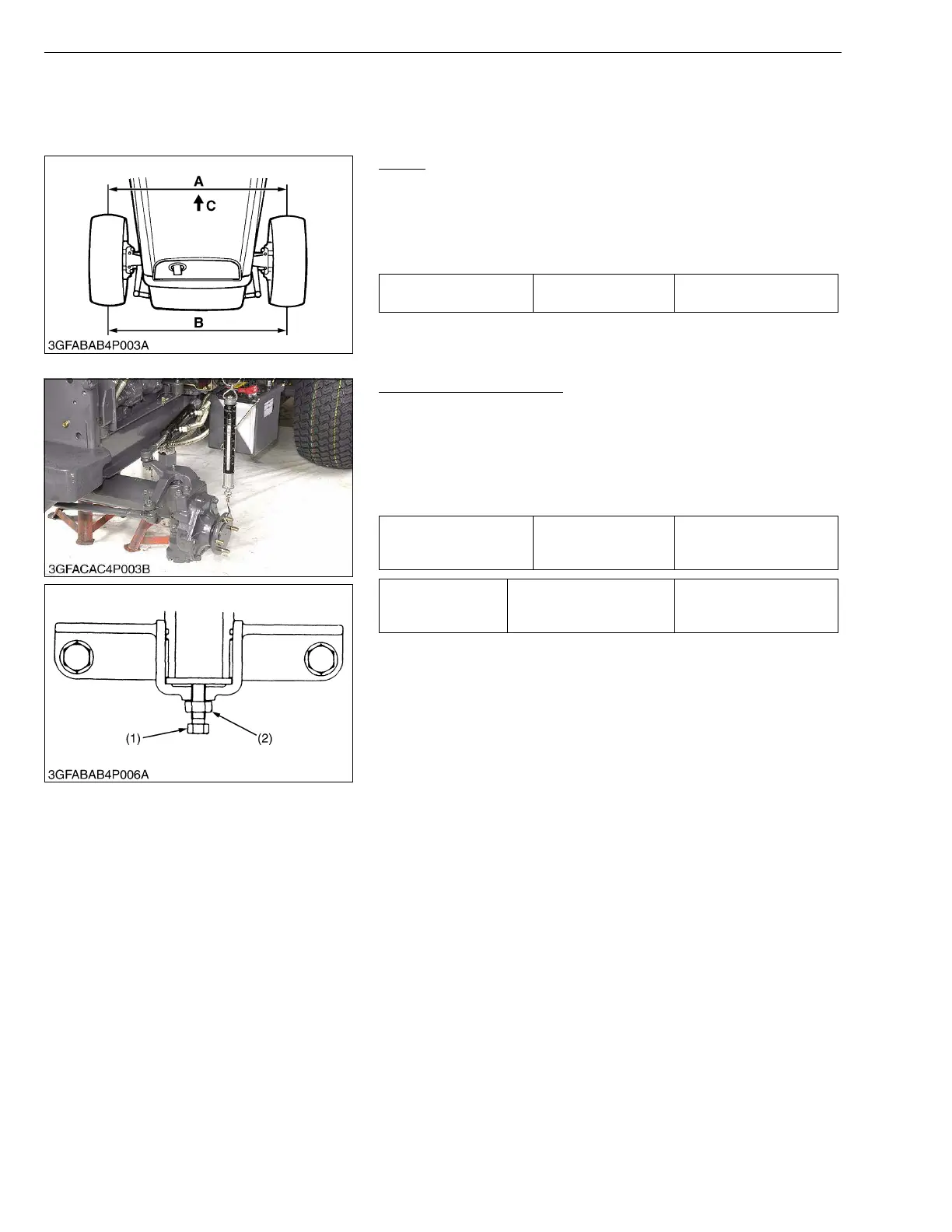

Toe-in
1. Inflate the tires to the specified pressure.
2. Turn the rear wheels straight ahead.
3. Measure the toe-in (B-A).
4. If the measurement is not within the factory specifications,
replace the tie-rod.
W1011383
Rear Axle Rocking Force
1. Jack up or lift up the rear side of frame.
2. Set a spring balance to the rear axle flange.
3. Measure the rear axle rocking force.
4. If the measurement is not within the factory specifications, adjust
with the adjusting screw (1).
5. Tighten the lock nut (2) firmly.
W1011523
Tie-rod (B-A) Factory spec.
0 to 10 mm
0 to 0.39 in.
A : Wheel to Wheel Distance at Front
B : Wheel to Wheel Distance at Rear
C : Front
Rear axle rocking force Factory spec.
49.1 to 117.6 N
5.0 to 12.0 kgf
11.1 to 26.4 lbs
Tightening torque Lock nut
23.6 to 27.4 N·m
2.4 to 2.8 kgf·m
17.4 to 20.2 ft-lbs
(1) Adjusting Screw (2) Lock Nut
