8-M3
F2880, F3680, RCK72-F36, RCK72R-F36, RCK60-F36, RCK60R-F36, WSM
ELECTRICAL SYSTEM
2. STARTING SYSTEM
[1] OPERATOR PRESENCE CONTROL (OPC) SYSTEM
W1013395

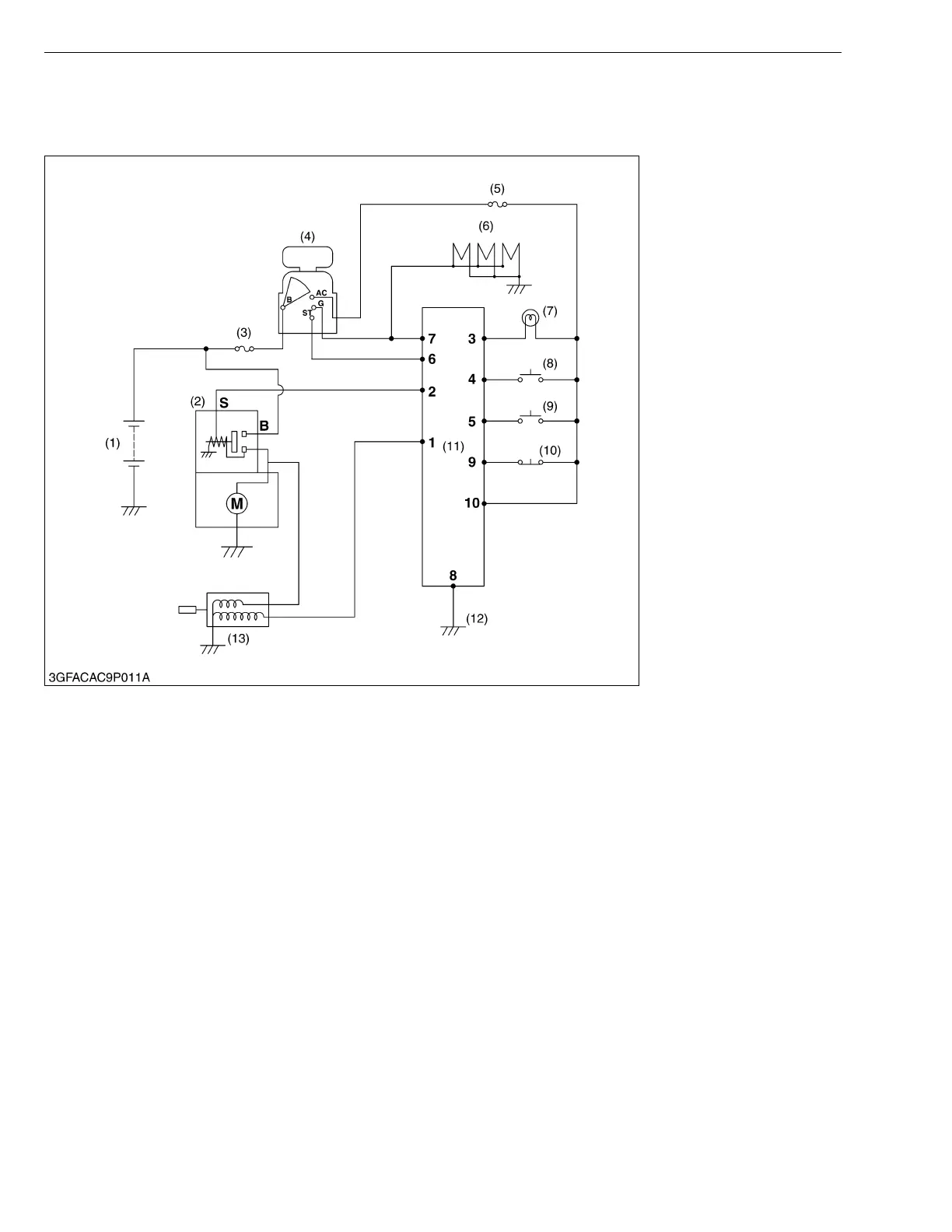

This machine is equipped with the operator presence control (OPC) system.
This system is controlled by three safety switch (seat switch (8), PTO switch (9) and brake switch (10)) and
controller (11).
(1) Battery
(2) Starter
(3) Slow Blow Fuse (50A)
(4) Main Switch
(5) Fuse (5A)
(6) Glow Plug
(7) Glow Plug Lamp
(8) Seat Switch
(9) PTO Switch
(10) Brake Switch
(11) Controller
(12) Frame Earth
(13) Engine Stop Solenoid
1 to 10 :Controller Terminals
AC :AC Terminal
G : G Terminal
ST :ST Terminal
S : S Terminal
B : B Terminal
To Next Page
