9-S1
F2880, F3680, RCK72-F36, RCK72R-F36, RCK60-F36, RCK60R-F36, WSM
MOWER
1. GENERAL
[1] MOWER IDENTIFICATION
When contacting your local KUBOTA distributor, always specify
mower serial number.
W1010628
[2] GENERAL PRECAUTION
• During disassembly, carefully arrange removed parts in a clean
area to prevent confusion later. Screws, bolts and nuts should be
installed in their original position to prevent reassembly errors.
• When special tools are required, use KUBOTA genuine special
tools. Special tools which are not frequently used should be
made according to the drawings provided.
• Use KUBOTA genuine parts or KUBOTA-recommended parts
and lubricants or their equivalents.
• Gaskets and O-rings must be replaced during assembly.
• Apply grease to new O-rings or oil seals before assembling. See
the figure.
• When reassembling external snap rings or internal snap rings,
they must be positioned so that sharp edge faces against the
direction from which a force is applied. See the figure.
• Metric screws, bolts and nuts are not interchangeable with
nonmetric fasteners
• Remove oil and dirt from parts before measuring.
W1010749

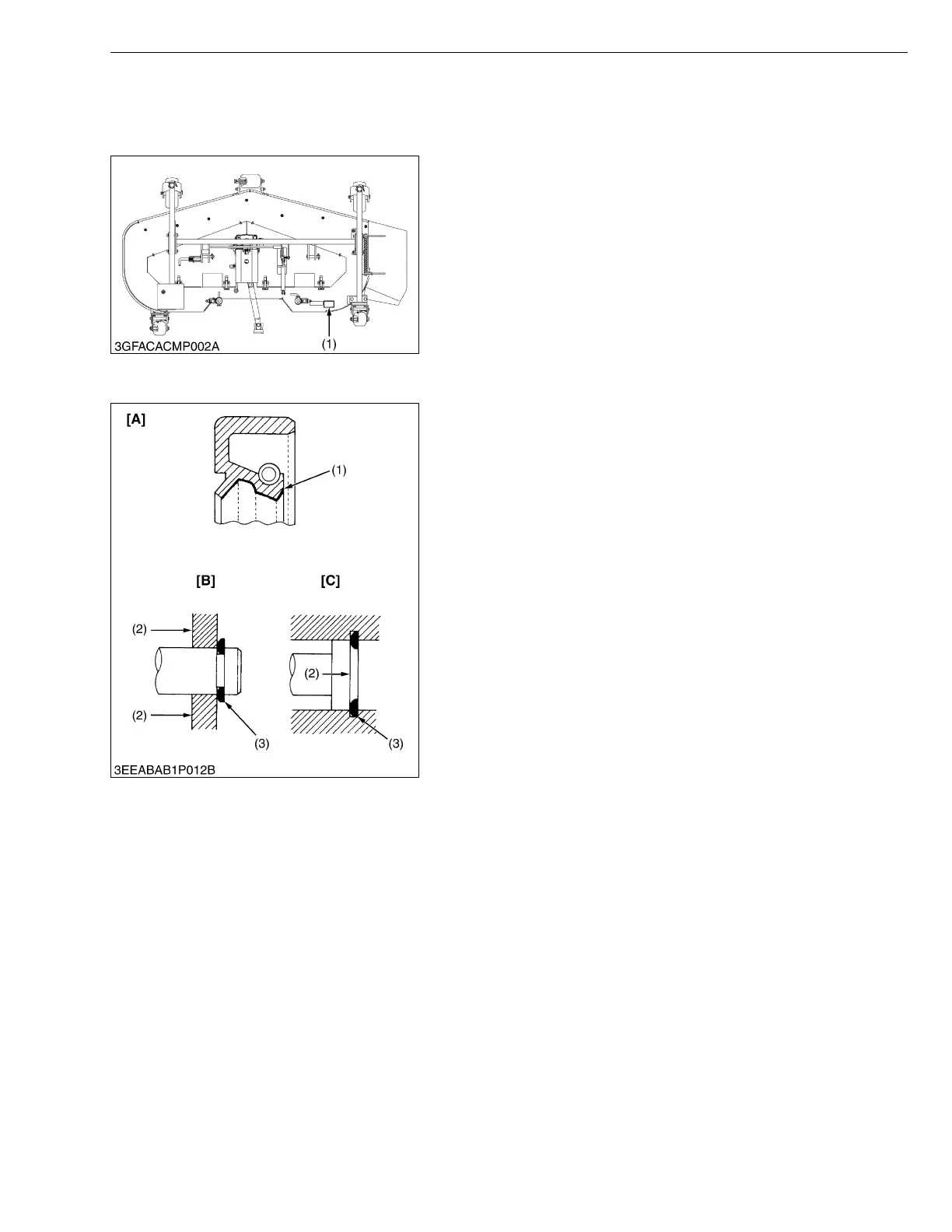

(1) Mower Serial Number
(1) Grease
(2) Force
(3) Sharp Edge
(A) Oil Seal
(B) External Snap Ring
(C) Internal Snap Ring
