ENGINE
Valves
1. Remove the valve caps (2).
2. Remove the valve spring collet (3) by pushing the valve spring
retainer (4) with valve spring replacer (1).
3. Remove the valve spring retainer (4), valve spring (5) and valve
stem seal (6).
4. Remove the valve (7).
(When reassembling)
• Wash the valve stem and valve guide hole, and apply engine oil
sufficiently.
• After installing the valve spring collets, lightly tap the stem to
assure proper fit with a plastic hammer.
IMPORTANT
■
• Don’t change the combination of valve and valve guide.
W1234567
Thermostat Assembly
1. Remove the thermostat cover mounting screws (1), and remove
the thermostat cover (2).
2. Remove the thermostat assembly (4).
(When reassembling)
• Apply a liquid gasket (Three Bond 1215 or equivalent) only at the
thermostat cover side of the gasket (3).
W1472583
(3) Oil Pan, Timing Gears, Camshaft and Fuel Camshaft
Fan Drive Pulley
1. Secure the flywheel to keep it from turning.
2. Remove the fan drive pulley screw.
3. Draw out the fan drive pulley with a puller.
(When reassembling)
• Install the pulley to crankshaft, aligning the marks (1) on them.
[Only D1105]
• Apply engine oil to the fan drive pulley retaining screw. And
tighten it.
W10181950

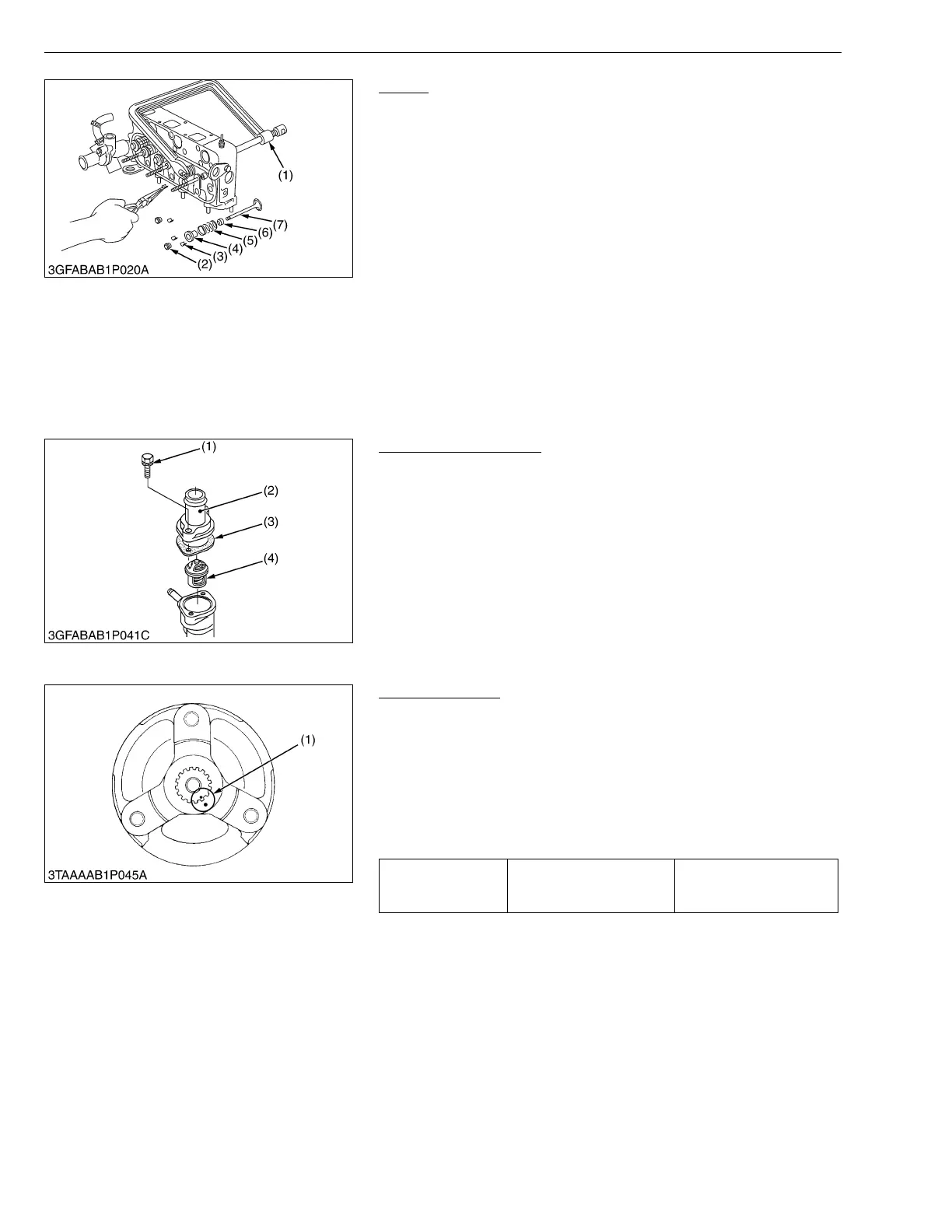

(1) Valve Spring Replacer
(2) Valve Cap
(3) Valve Spring Collet
(4) Valve Spring Retainer
(5) Valve Spring
(6) Valve Stem Seal
(7) Valve
(1) Thermostat Cover Mounting Screw
(2) Thermostat Cover
(3) Thermostat Cover Gasket
(4) Thermostat Assembly
Tightening torque Fan drive pulley screw
235.4 to 245.2 N·m
24.0 to 25.0 kgf·m
173.6 to 180.8 ft-lbs
(1) Aligning Mark
KiSC issued 04, 2006 A
