Kubota WSM RCK60-F36 User Manual

2-S31
F2880, F3680, RCK72-F36, RCK72R-F36, RCK60-F36, RCK60R-F36, WSM
TRANSMISSION

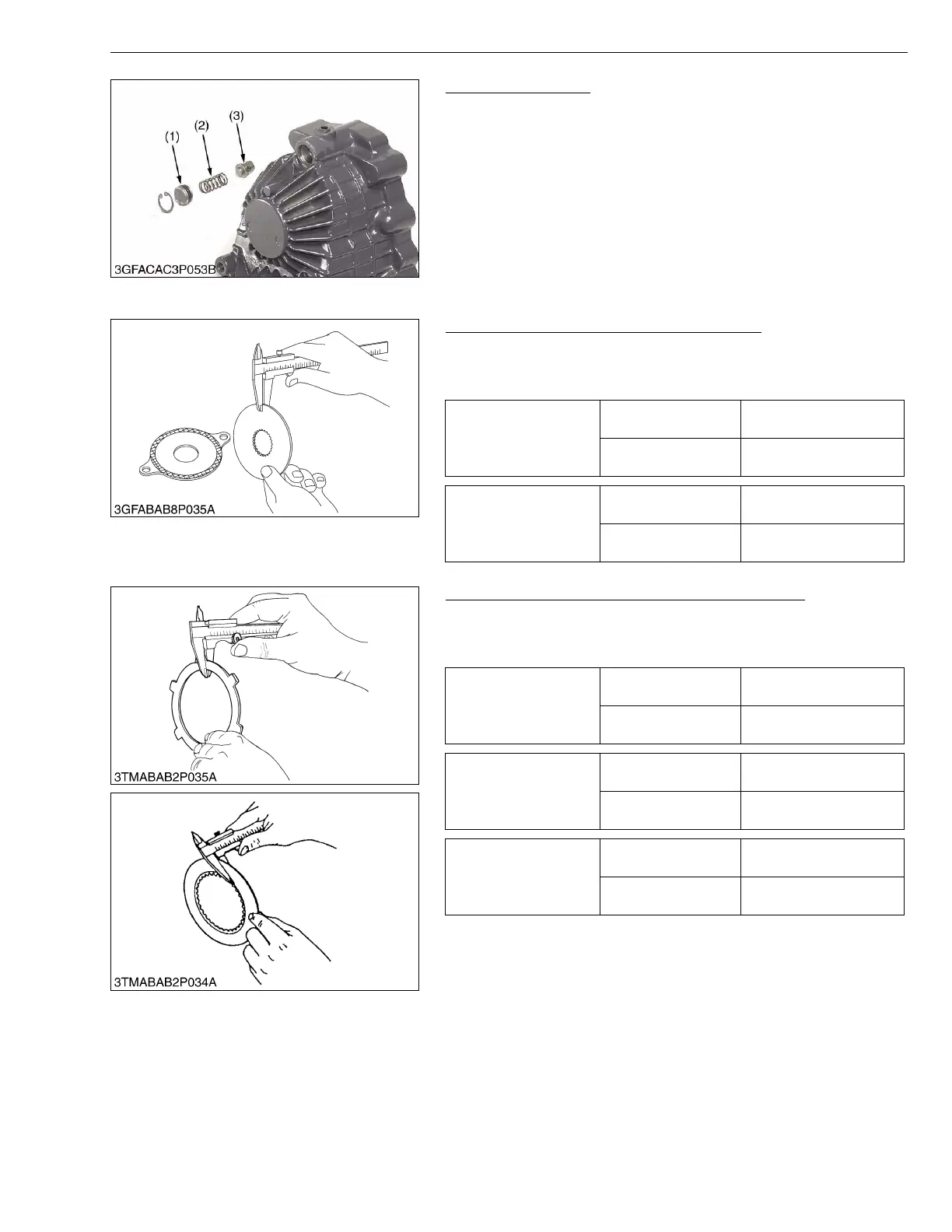

Charge Relief Valve
1. Check the spring (2) for breakage and wear.
2. If it is unusual, replace it.
W1037317
(2) Hydraulic PTO Clutch
PTO Brake Plate and PTO Brake Disc Wear
1. Measure PTO brake plate thickness and PTO brake disc
thickness with an outside micrometer.
2. If the thickness is less than the allowable limit, replace it.
W1017239
Pressure Plate, Clutch Disc and Steel Plate Wear
1. Measure the thickness of the pressure plate, clutch disc and steel
plate with the outside micrometer.
2. If the thickness is less than the allowable limit, replace it.
W1017366
(1) Valve Plug
(2) Spring
(3) Valve Poppet
PTO brake plate
thickness
Factory spec.
4.35 to 4.65 mm
0.1713 to 0.1830 in.
Allowable limit
4.25 mm
0.1673 in.
PTO brake disc
thickness
Factory spec.
3.65 to 3.95 mm
0.1437 to 0.1555 in.
Allowable limit
3.30 mm
0.1299 in.
Thickness of pressure
plate
Factory spec.
1.95 to 2.05 mm
0.0768 to 0.0807 in.
Allowable limit
1.80 mm
0.0709 in.
Thickness of clutch disc
Factory spec.
1.90 to 2.10 mm
0.0748 to 0.0827 in.
Allowable limit
1.60 mm
0.0630 in.
Thickness of steel plate
Factory spec.
0.95 to 1.05 mm
0.0374 to 0.0413 in.
Allowable limit
0.80 mm
0.0315 in.
