1-S19
F2880, F3680, RCK72-F36, RCK72R-F36, RCK60-F36, RCK60R-F36, WSM
ENGINE

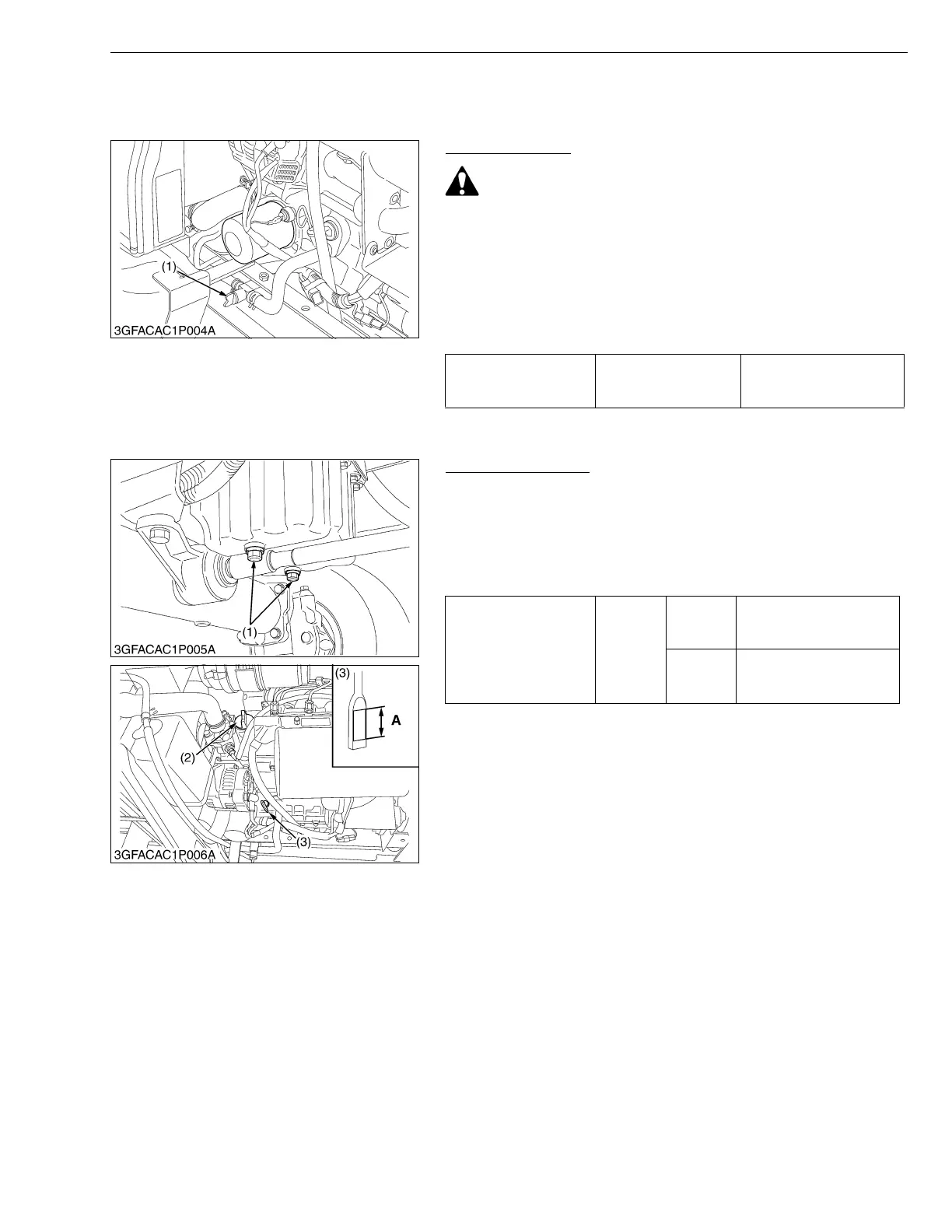

[2] PREPARATION
(1) Separating Engine
Draining Coolant
CAUTION
• Never open the radiator cap while operating or immediately
after stopping the engine. Otherwise, hot water will spout
out from the radiator. Wait for more than ten minutes to cool
the radiator, before opening the cap.
1. Stop the engine and let it cool down.
2. Remove the drain plug (1) to drain the coolant.
3. Remove the radiator cap to completely drain the coolant.
4. After all coolant is drained, close the drain plug.
W1019510
Draining Engine Oil
1. Park the machine on level ground.
2. Place an oil pan underneath the engine.
3. Remove the drain plug (1) to drain oil.
4. After draining, screw in the drain plugs and tighten.
(When refilling)
• Fill the engine oil up to the upper line on the dipstick (3).
■
• Never mix two different type of oil.
• Use the proper SAE Engine Oil according to ambient
temperatures.
Refer to “LUBIRICANTS, FUEL AND COOLANT”.
(See page G-7)
W1019220
Coolant
Capacity (without
recovery tank)
4.6 L
4.9 U.S.qts.
4.0 lmp.qts.
(1) Drain Plug
Engine oil Capacity
D1105
3.8 L
4.0 U.S.qts.
3.3 Imp.qts.
V1505
5.3 L
5.6 U.S.qts.
4.7 Imp.qts.
(1) Drain Plug
(2) Oil Inlet Plug
(3) Dipstick
(A) Oil level is acceptable within this
range.
To Next Page
