Lantronix UDS2100 User Manual

UDS2100 Device Server User Guide 15
3: Installation of UDS2100
This chapter describes how to install your UDS2100 and get it up and running in
the shortest possible time.
Package Contents
Verify and inspect the contents of the UDS2100 package using the following list.
If any item is missing or damaged, contact your place of purchase immediately.
 UDS2100
 DB9F-to-DB9F Null Modem Cable (P/N 500-164-R)
 Power Supply
 Quick Start Guide
Installing the UDS

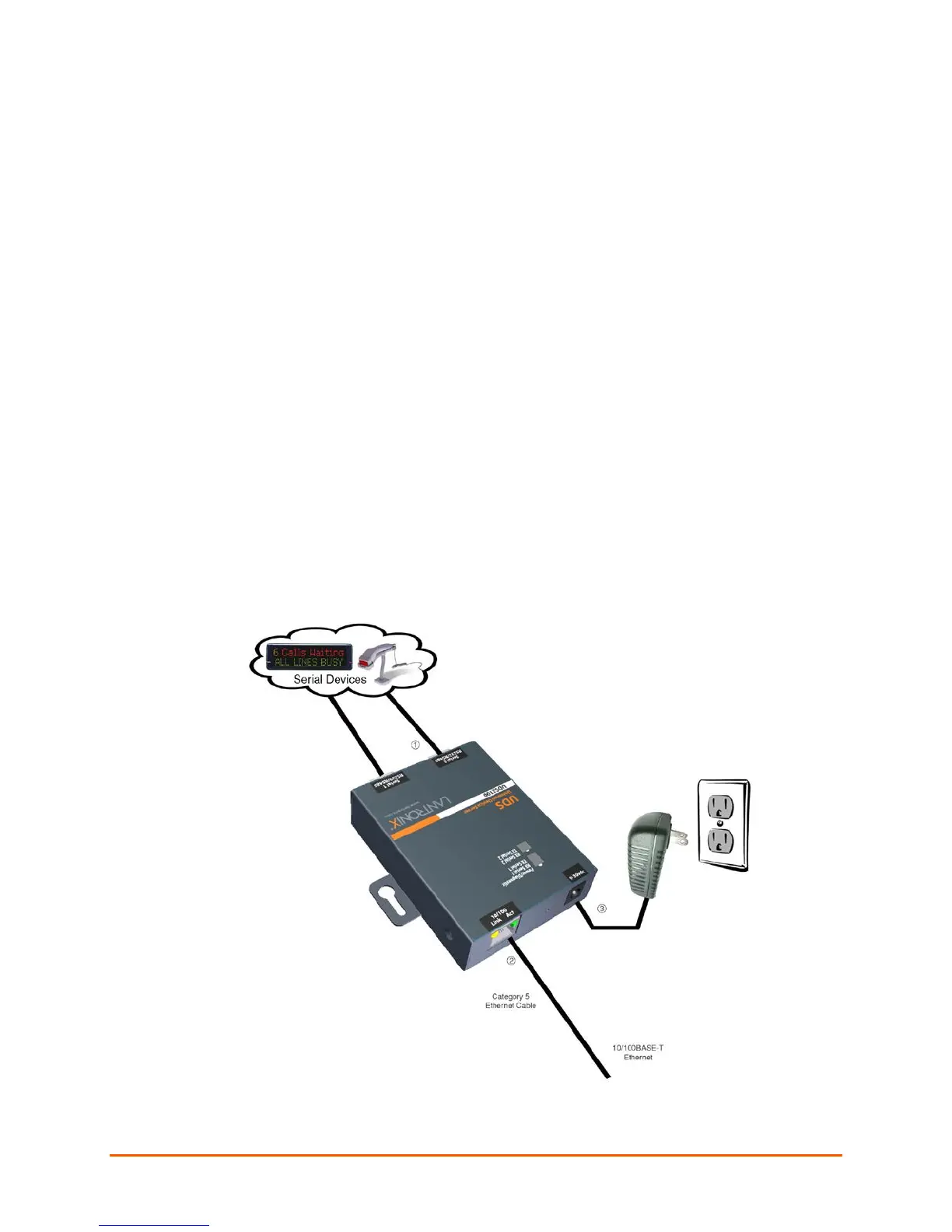

Figure 3-1. UDS2100 Connected to Serial Device and Network

Lantronix UDS2100 Specifications

General

Isolation	1.5 kV
Certification	FCC, C/UL, CSA, VCCI, CE, TUV, CTick
Serial interface type	RS-232/422/485
Serial ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Electrostatic Discharge (ESD) protection	15 kV
USB 2.0 ports quantity	0
Supported network protocols	ARP, UDP, TCP, ICMP, Telnet, TFTP, AutoIP, DHCP, HTTP, SNMP TCP, UDP, Telnet, TFTP, RFC2217
Built-in processor	Lantronix DSTNI-EX
Processor frequency	48 MHz
Compatible operating systems	Windows 98/ME/NT/2000/XP
Flash memory	2 MB
RAM capacity	0.256 MB
LED indicators	LAN, Y
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	10 - 90 %
Input voltage	9 - 30 V

Weight and Dimensions

Weight	400 g
Dimensions (WxDxH)	72 x 23 x 95 mm
