Lantronix UDS2100 User Manual

5: Configuration Using Web Manager
UDS2100 Device Server User Guide 36
Connection Settings - UDP
To configure a channel’s UDP settings:
1. On the main menu, click Connection. The Connection Settings window for
the selected channel displays.
2. In the available fields, enter or modify the following information:

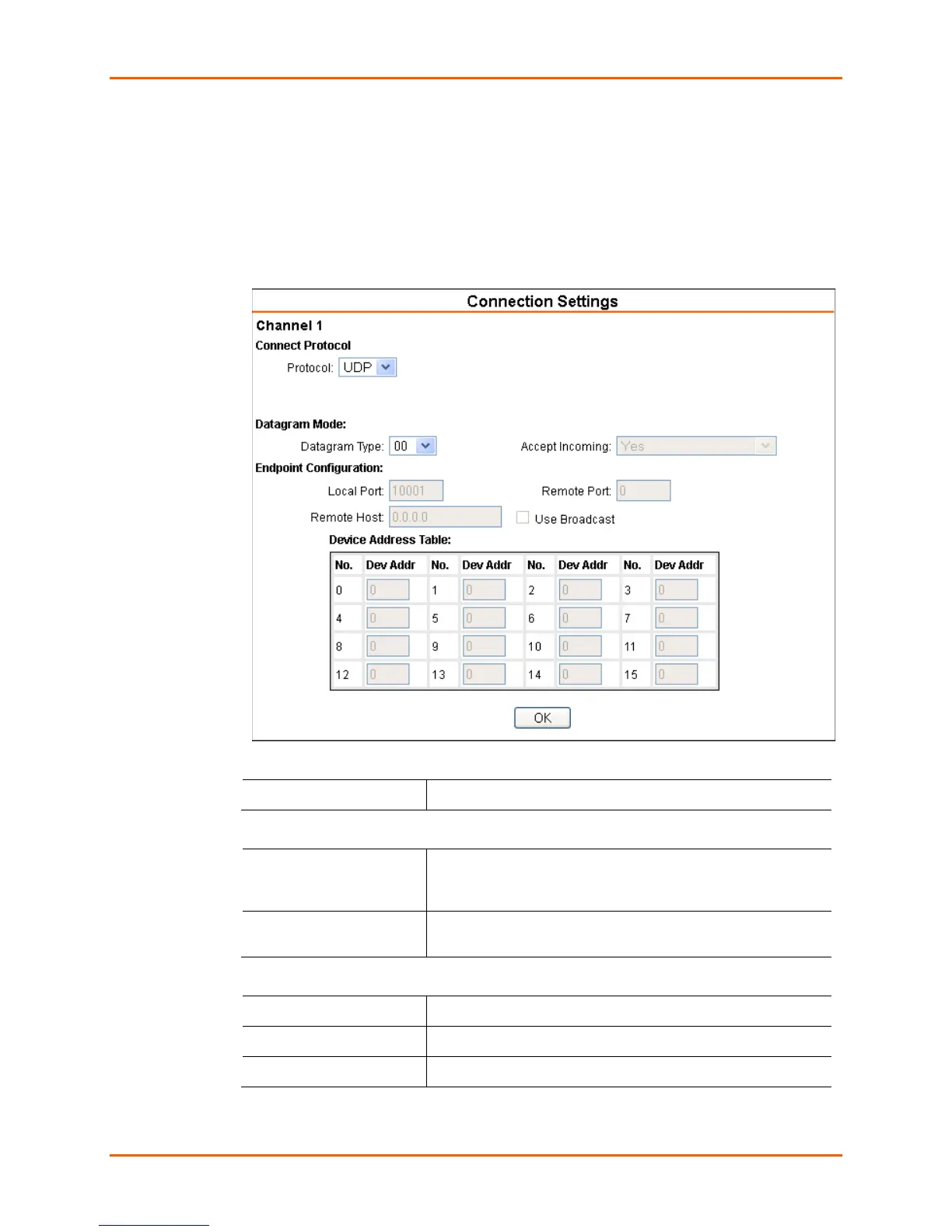

Figure 5-8. UDP Connection Settings
Connect Protocol
Protocol
Select UDP from the drop-down menu.
Datagram Mode
Datagram Type
Configures the remote IP or network broadcast address and
the remote port. Enter 01 for directed or broadcast UDP. The
default setting is 00.
Accept Incoming
Select Yes to accept incoming UDP datagrams. The default
setting is Yes.
Endpoint Configuration
Local Port
Enter the local port number.
Remote Port
Enter the port number of the remote device.
Remote Host
Enter the IP address of the remote device.

Lantronix UDS2100 Specifications

General

Isolation	1.5 kV
Certification	FCC, C/UL, CSA, VCCI, CE, TUV, CTick
Serial interface type	RS-232/422/485
Serial ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Electrostatic Discharge (ESD) protection	15 kV
USB 2.0 ports quantity	0
Supported network protocols	ARP, UDP, TCP, ICMP, Telnet, TFTP, AutoIP, DHCP, HTTP, SNMP TCP, UDP, Telnet, TFTP, RFC2217
Built-in processor	Lantronix DSTNI-EX
Processor frequency	48 MHz
Compatible operating systems	Windows 98/ME/NT/2000/XP
Flash memory	2 MB
RAM capacity	0.256 MB
LED indicators	LAN, Y
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	0 - 60 °C
Operating relative humidity (H-H)	10 - 90 %
Input voltage	9 - 30 V

Weight and Dimensions

Weight	400 g
Dimensions (WxDxH)	72 x 23 x 95 mm
