5: Configuration Using Web Manager
UDS2100 Device Server User Guide 24

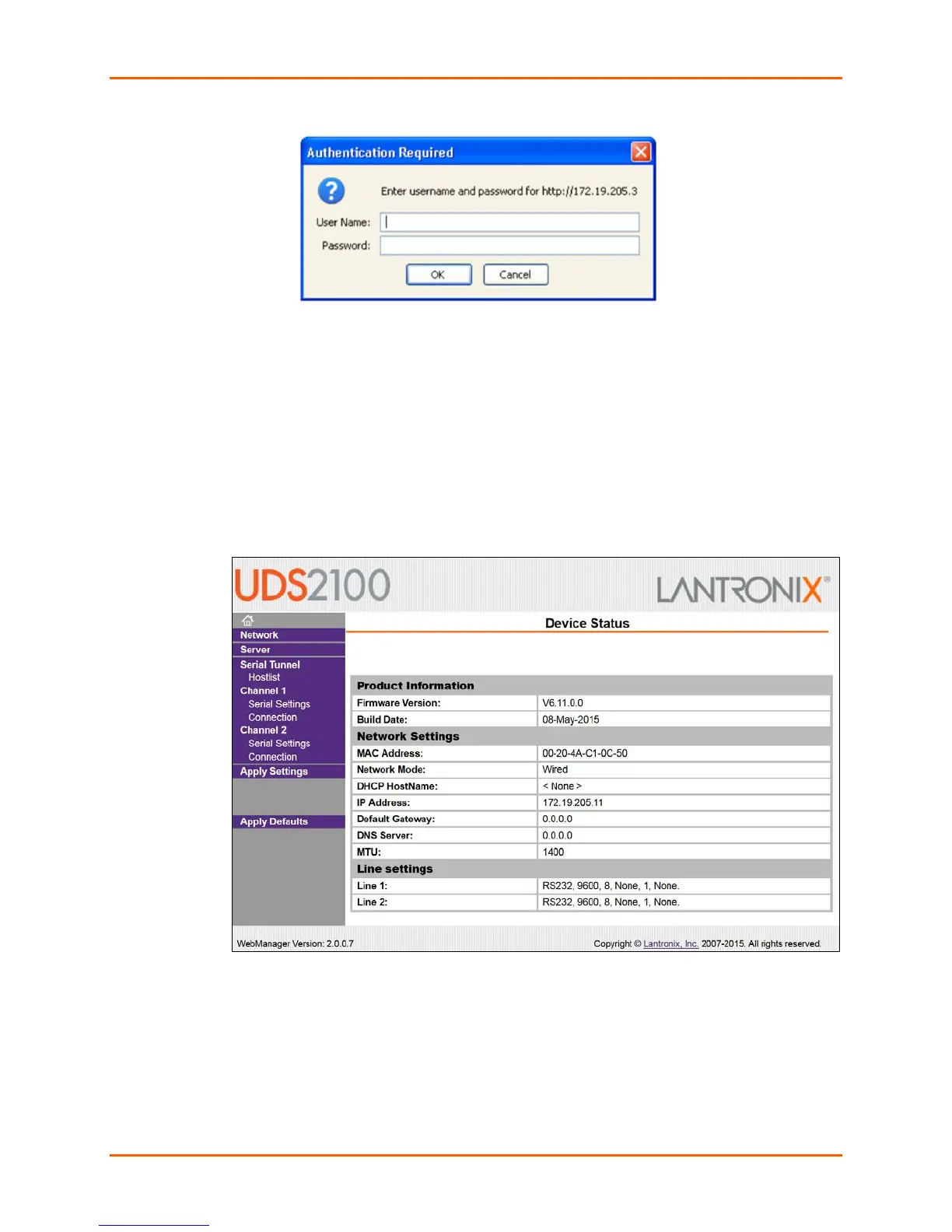

Figure 5-1. Web Manager Login Window
7. Perform one of the following:
If no telnet password has been defined (default), leave both fields blank and
click OK.
If a telnet password has been defined, leave the username blank, type in the
password, and then click OK.
The Web Manager displays.
Figure 5-2. Lantronix Web Manager
The main menu is in the left pane of the Web Manager window.

Table of Contents

Other manuals for Lantronix UDS2100

Preview: Quick Start Guide
Quick Start Guide6 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Lantronix UDS2100 and is the answer not in the manual?

Lantronix UDS2100 Specifications

General IconGeneral
Isolation1.5 kV
CertificationFCC, C/UL, CSA, VCCI, CE, TUV, CTick
Serial interface typeRS-232/422/485
Serial ports quantity2
Ethernet LAN data rates10, 100 Mbit/s
Electrostatic Discharge (ESD) protection15 kV
USB 2.0 ports quantity0
Supported network protocolsARP, UDP, TCP, ICMP, Telnet, TFTP, AutoIP, DHCP, HTTP, SNMP TCP, UDP, Telnet, TFTP, RFC2217
Built-in processorLantronix DSTNI-EX
Processor frequency48 MHz
Compatible operating systemsWindows 98/ME/NT/2000/XP
Flash memory2 MB
RAM capacity0.256 MB
LED indicatorsLAN, Y
Storage temperature (T-T)-40 - 85 °C
Operating temperature (T-T)0 - 60 °C
Operating relative humidity (H-H)10 - 90 %
Input voltage9 - 30 V
Weight and Dimensions IconWeight and Dimensions
Weight400 g
Dimensions (WxDxH)72 x 23 x 95 mm
