Installation
Mechanical installation − Dimensions
4−2
L
EDB82MV752 EN 5.2

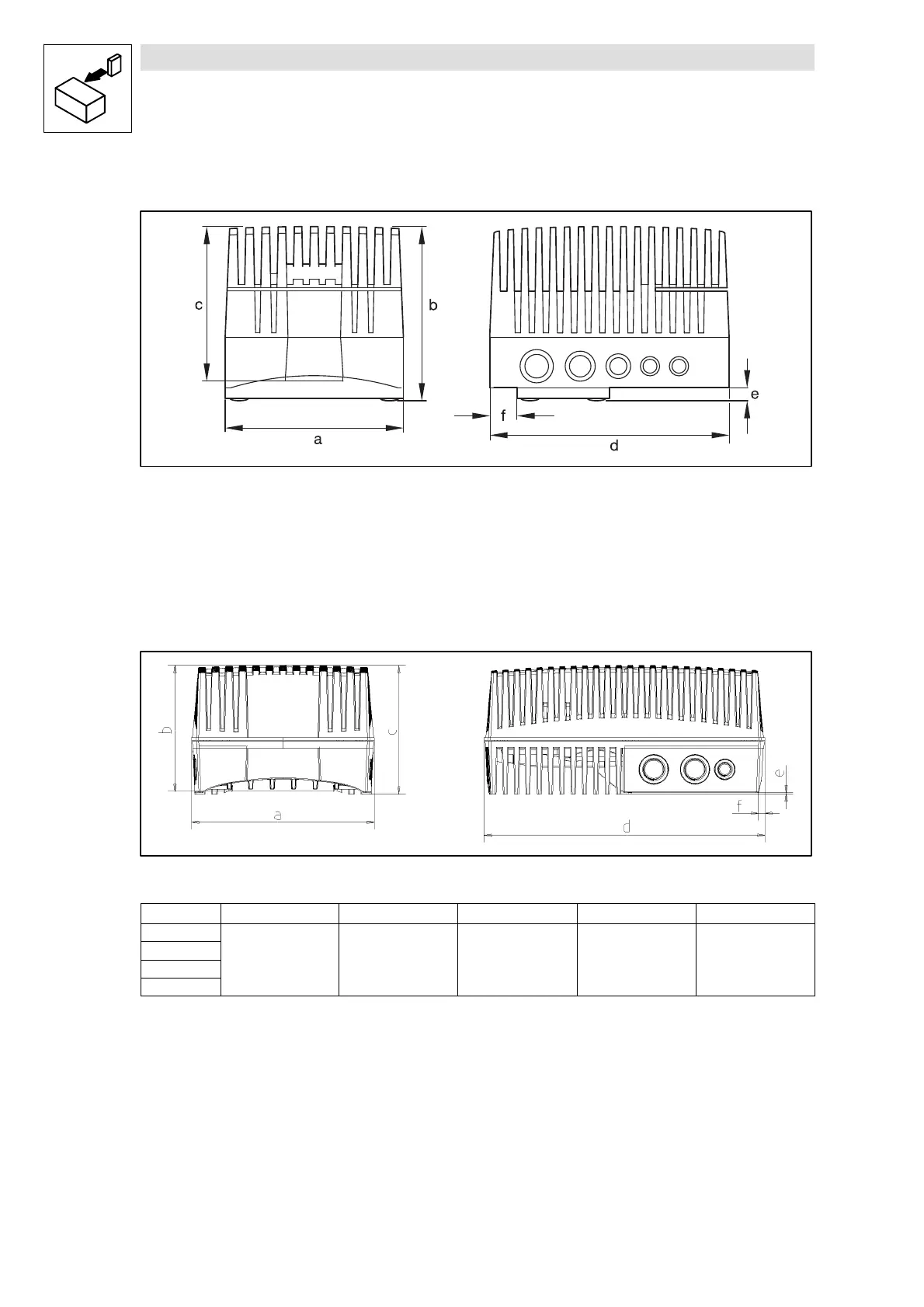

4.1.3 Dimensions
8200mot001
Fig. 4−1 Dimensions 0.25 ... 2.2 kW
a [mm] b [mm] c [mm] d [mm] [mm] f [mm]
E82MV251_2B
E82MV371_2B
138 100 90 190 7 12
E82EV551_4B
E82EV751_4B
156 151 135 202 15 26
E82EV152_4B
E82EV222_4B
176 167 151 230 15 26
82mot443
Fig. 4−2 Dimensions 3 ... 7.5 kW
Type a [mm] b [mm] c [mm] d [mm] [mm]
E82MV302_4B
211 163 (223
**
) 148 325 15
E82MV402_4B
E82MV552_4B
E82MV752_4B
**
for wall mounting or with fan module (type E82ZMV, dimensions L x W x H [mm]: 325 x 211 x 60), see also Instructions enclosed in the fan
module.
