Installation
Electrical installation − Connections
4−12
L
EDB82MV752 EN 5.2

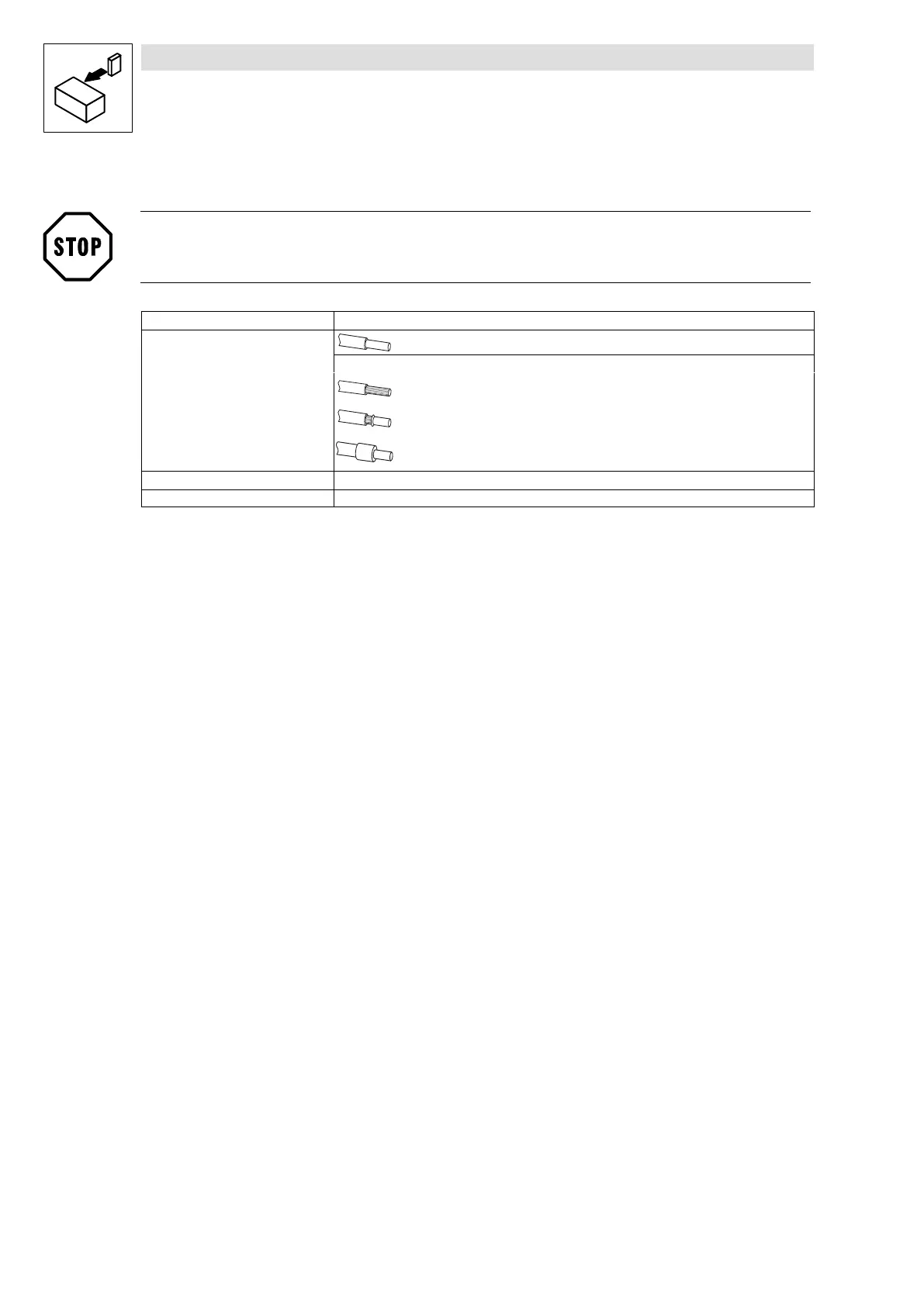

4.2.4.3 Terminal assignment − application I/O E82ZAFAC001
Stop !
Control cables must always be shielded to prevent interference injections!
Electrical connection Terminal strip with screw connection
Possible connections
rigid: 1.5 mm
2
(AWG 16)
flexible:
without wire end ferrule
1.0 mm
2
(AWG 18)
with wire end ferrule, without plastic sleeve
0.5 mm
2
(AWG 20)
with wire end ferrule, with plastic sleeve
0.5 mm
2
(AWG 20)
Tightening torque 0.22 ... 0.25 Nm (1.9 ... 2.2 lb−in)
Bare end 5 mm
