Commissioning
V/f characteristic control
5−6
L
EDB82MV752 EN 5.2

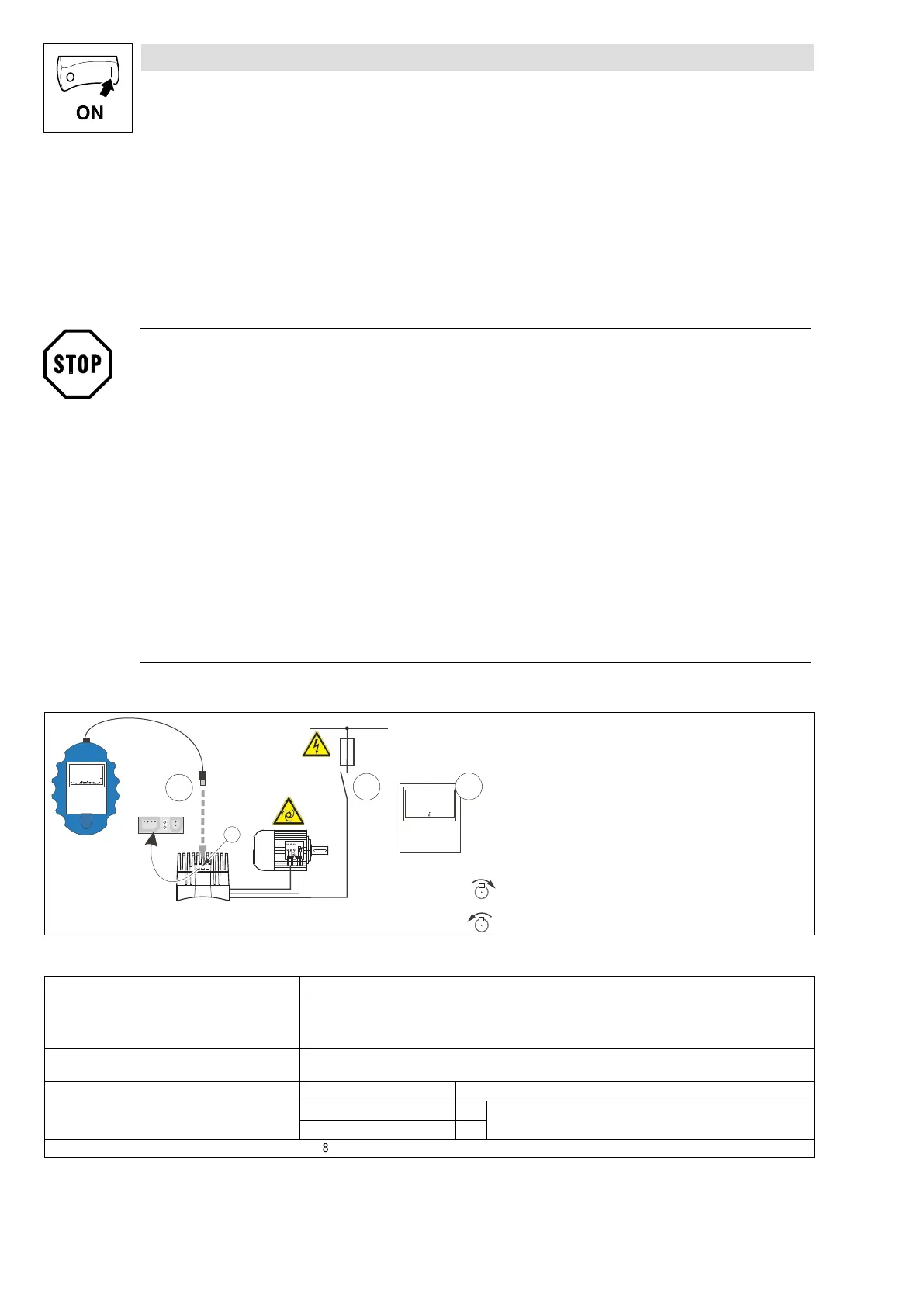

5.4 Commissioning − V/f characteristic control
5.4.1 Commissioning without function module
Stop !
The controller can only be used when the FIF cover is mounted!
– If the FIF cover is missing, the green LED is blinking (keypad: ). The controller is
inhibited.
– The FIF cover is mounted when the inverter is delivered.
Since the controller is not provided with control terminals when the function module is not
attached, starting and stopping during operation is also possible by switching the mains.
– Frequent mains switching (e.g. inching mode via mains contactor) may overload and destroy
the input current limitation of the controller: for this reason, at least three minutes have to
pass between two starting operations.
The function saves the setpoint at the time the operation is interrupted when switching the
mains or in case of mains failures. The drive restarts automatically as soon as the mains
recovers.
If the drive does not start after the setpoint has been selected, ( does not go off), press
to enable the controller.
L1/L2/L3/PE
W
2
U
2
V
2
U
PE
1
V
1
W
1
w
j
y
0....- 50 Hz
z
0....+50 Hz
z
y
wx
v
t
u
s
5000
cd
j
Hz
0
1
40
3
1
2
AIF
z
y
wx
v
t
u
s
88888
8888
888
8
a
bcde
j
gfkih PS
mno
p
qr
Hi
Hz
%sh
rpm
°C
W
m
AV
Lo
E82ZBB
E82ZWLxxx
8200mot170
Step Comment
Connect diagnosis terminal (contains keypad)
with motec. Put the plug of the connecting cable
into the AIF interface on the motec.
Diagnosis terminal and connecting cable are not included in the scope of supply.
Connect mains voltage.
Automatic start is possible!
The controller is ready for operation after approx. 1 second.
Keypad:
Select setpoint via the function.
Activate
CW rotation
goes off. The drive is running now.
Display indicates output frequency.
CCW rotation
Faults during commissioning or operation? chapter 8
