Function library
Limit value setting
7−21
L EDB82MV752 EN 5.2

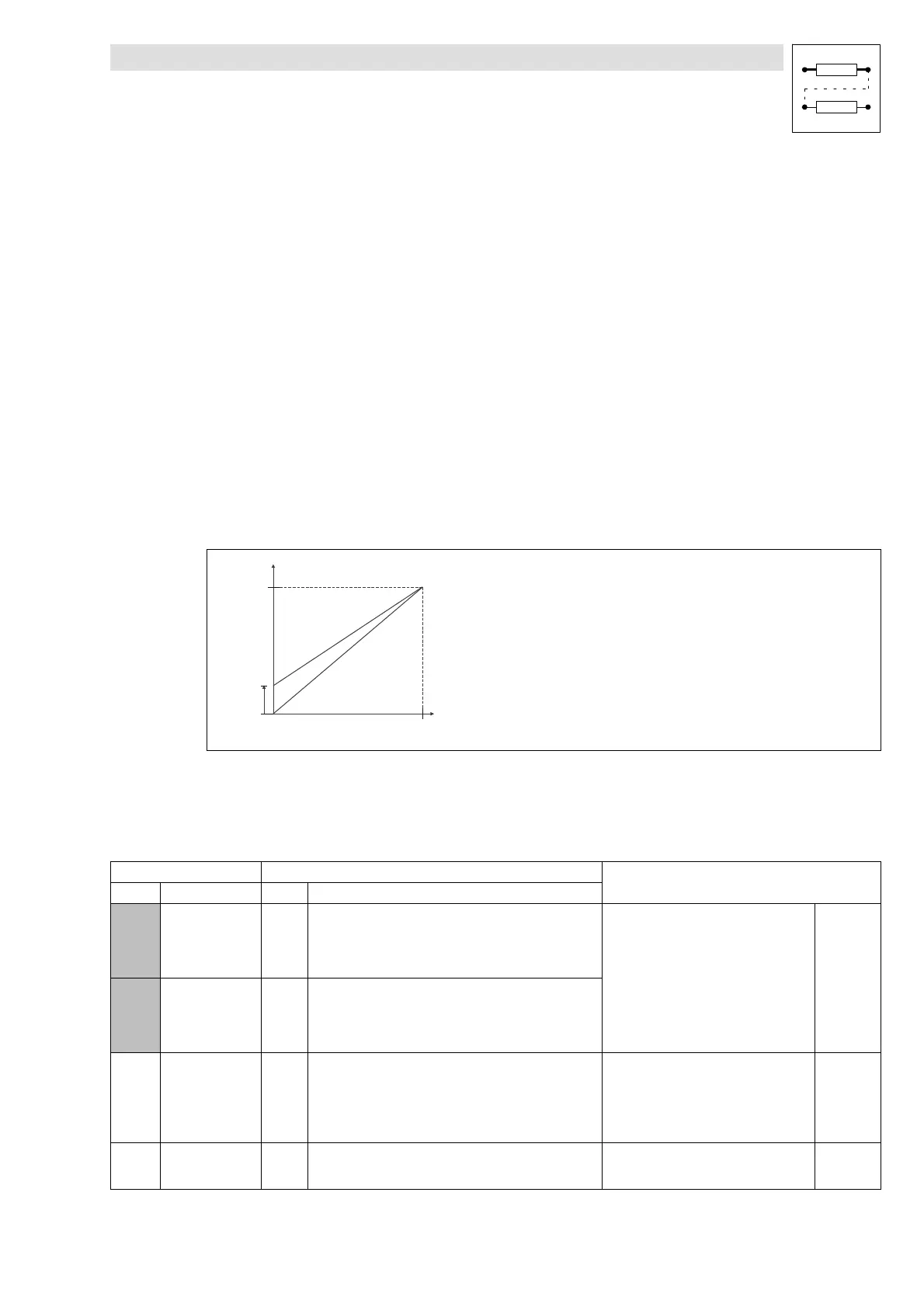

7.4 Limit value setting
7.4.1 Speed range
Description
The speed setting range required for the application can be set via the selection of output
frequencies:
The minimum output frequency (C0010) corresponds to the speed at 0 % speed setpoint
selection.
The maximum output frequency (C0011) corresponds to the speed at 100 % speed setpoint
selection.
The lower frequency limitation (C0239) sets the speed. Independently of the setpoint, the
value cannot fall below this speed (e.g. for fans, dancer position control, or dry running
protection for pumps).
0%
[f]
100 %
C0011
C0010
8200vec526
Fig. 7−5 Relation between setpoint and minimum and maximum output frequency
Codes for parameter setting
Code Possible settings IMPORTANT
No. Name Lenze Selection
C0010
uSEr
Minimum output
frequency
0.00 0.00
à 14.5 Hz
{0.02 Hz} 650.00
C0010 is not effective with bipolar
setpoint selection (−10 V ... + 10 V)
C0010 only defines the analog input 1
As of software 3.5: If C0010 > C0011,
the drive does not start running with
controller enable.
à Speed setting range 1 : 6 for Lenze
geared motors: Setting absolutely
required for operation with Lenze
geared motors.
7−21
C0011
uSEr
Maximum output
frequency
50.00 7.50
à 87 Hz
{0.02 Hz} 650.00
C0239 Lowest frequency
limit
−650.00 −650.00 {0.02 Hz} 650.00 The value does not fall below limit
independently of the setpoint.
If the minimum frequency limitation is
active, the automatic DC−injection brake
(auto DCB) must be deactivated (C0019
= 0 or C0106 = 0).
7−21
C0236
(A)
Acceleration time −
minimum frequency
limitation
0.00 0.00 {0.02 s} 1300.00 Ref. to C0011
Minimum frequency limitation = C0239
7−21
