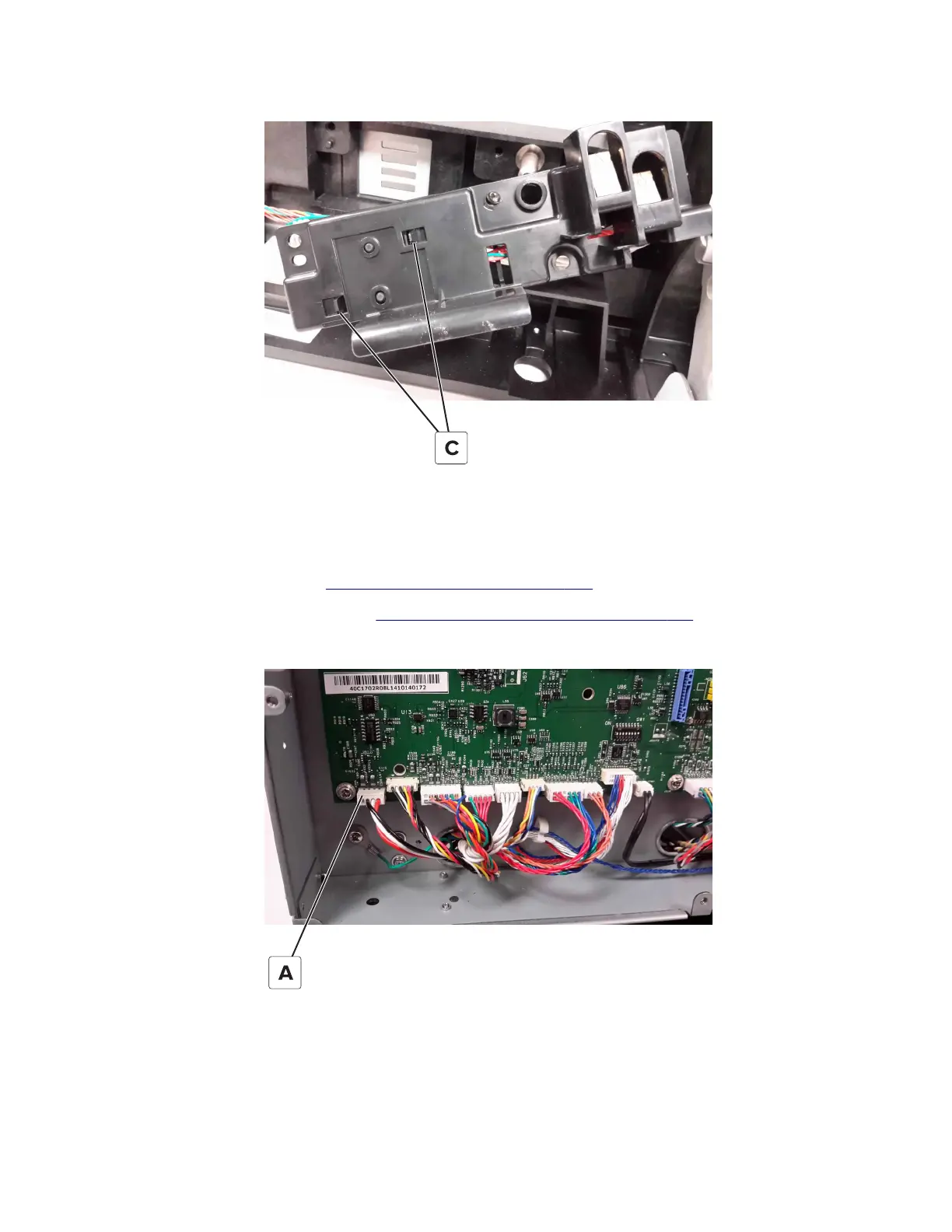

7 Release the two tabs (C) from the mounting assembly, and then remove the sensor.
Sensor (waste toner contact) removal
1 Remove the waste toner bottle.
2 Remove the motor cover. See “Motor cover removal” on page 273.
3 Remove the sensor (paper size). See “Sensor (paper size) removal” on page 312.
4 Disconnect the waste toner bottle contact cable (A) from the controller board.
5 Route the cable through the printer, and then remove the sensor contact assembly.
5028
Repair information
314
