Lexmark CS720 User Manual

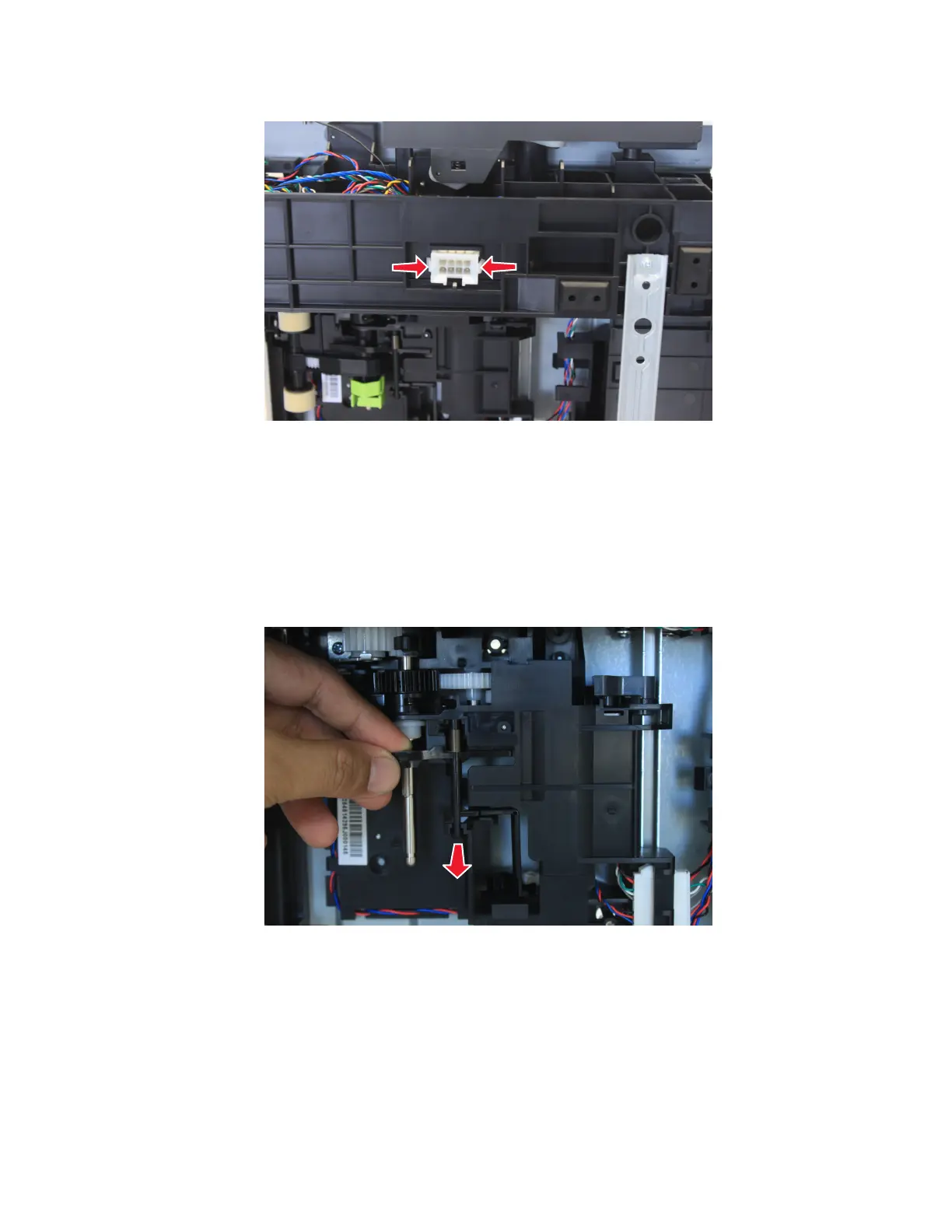

5 Squeeze, and then push the latches into the tray base to release the cable.
550-sheet tray empty sensor actuator removal
1 Remove the tray insert.
2 Turn over the tray base.
3 Remove the pick roller.
4 Pull out the actuator to release, and then remove the actuator.
Installation note: Make sure that the actuator is properly installed as shown.
5028
Repair information
384
