MMX8x4-HT series – User's Manual 64
Audio Tab
DIFFERENCE: This submenu and the described functions are available for MMX8x4-HT400MC and
MMX8x4-HT420M models only.
This tab is for overview of the input and output audio settings. See more details about the audio inputs and
outputs in Audio Interface section.

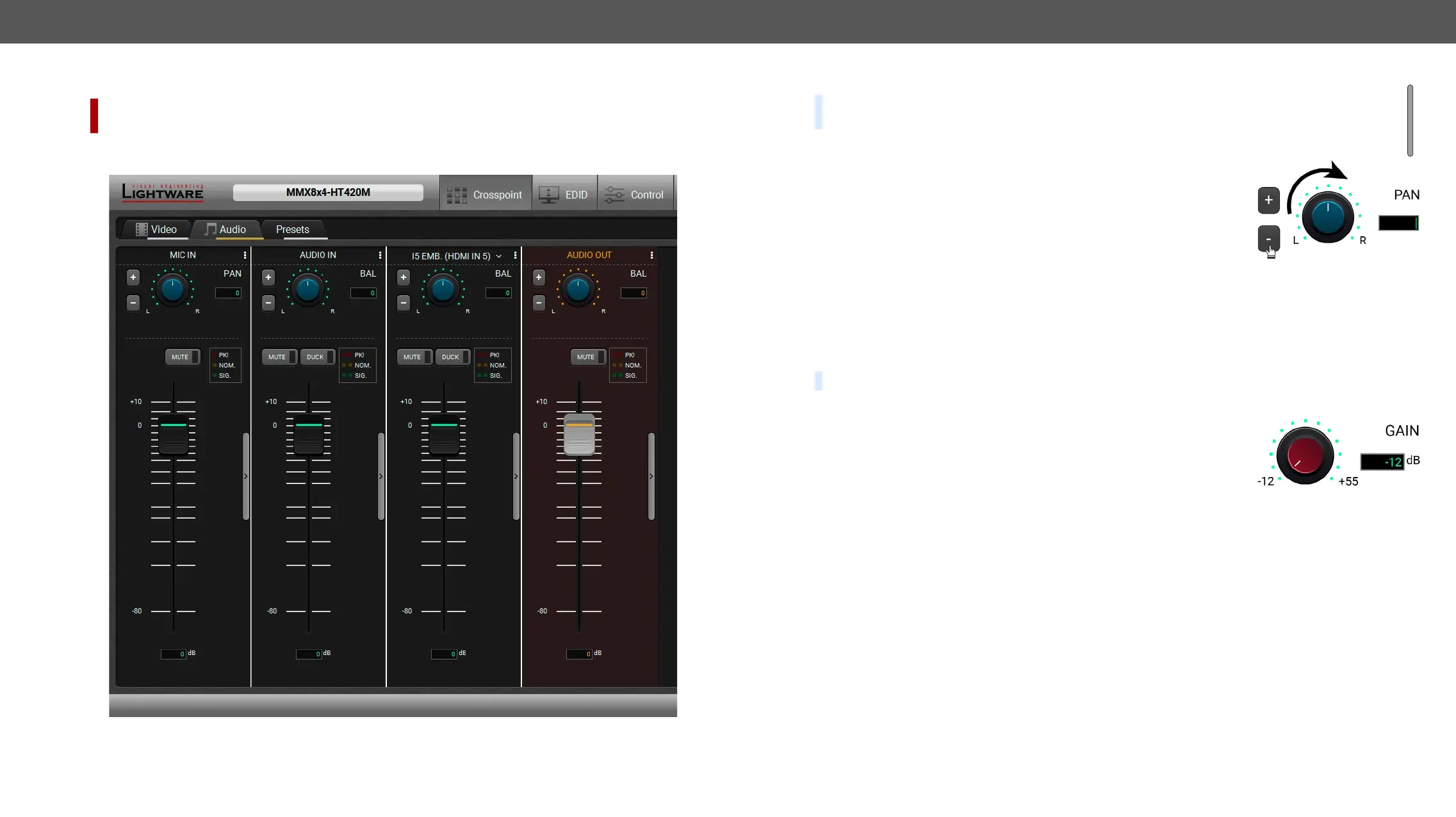

Audio tab in the Crosspoint menu – Basic settings can be seen on the default view
TIPS AND TRICKS: The entire view with full functionality of each channel is available by clicking on the
channel separator button. Clicking on this button once again closes the advanced layout.
Panorama or Balance Settings
Panorama
the balanced microphone input is transmitted to the left or right channel of
the balanced analog output.
Balance parameter is available in advanced analog input, embedded audio
and advanced analog output channel.
Panorama and Balance can be set separately in each channel.
▪ Click on the knob and keep pressed the left button. Move the cursor up or down to set the lower or
higher value.
▪ Press + or - buttons to increase or decrease the value.
▪ Type the value into the text field.()
TIPS AND TRICKS: Double click on the knob
Gain Settings
See the advanced layout to reach all adjustable properties.
Gain setting is for increase (or decrease) the input signal level, expressed in
dB.
Gain values in microphone input channel:
Min. level: -12dB, max. level: +55dB, default level: 0dB. Steps: 1dB.
Gain values in advanced analog audio channel:
Min. level: -12dB, max. level: +21dB, default level: 0dB. Steps: 3dB.
▪ Click on the knob and keep pressed the left button. Move the cursor up or down to set the lower or
higher value.
▪ Press + or - buttons to increase or decrease the value.
▪ Type the value into the text field.
