MMX8x4-HT series – User's Manual 77
GPIO Tab
DIFFERENCE: MMX8x4-HT420M and MMX8x8-HDMI-4K-A-USB20 models have GPIO port.

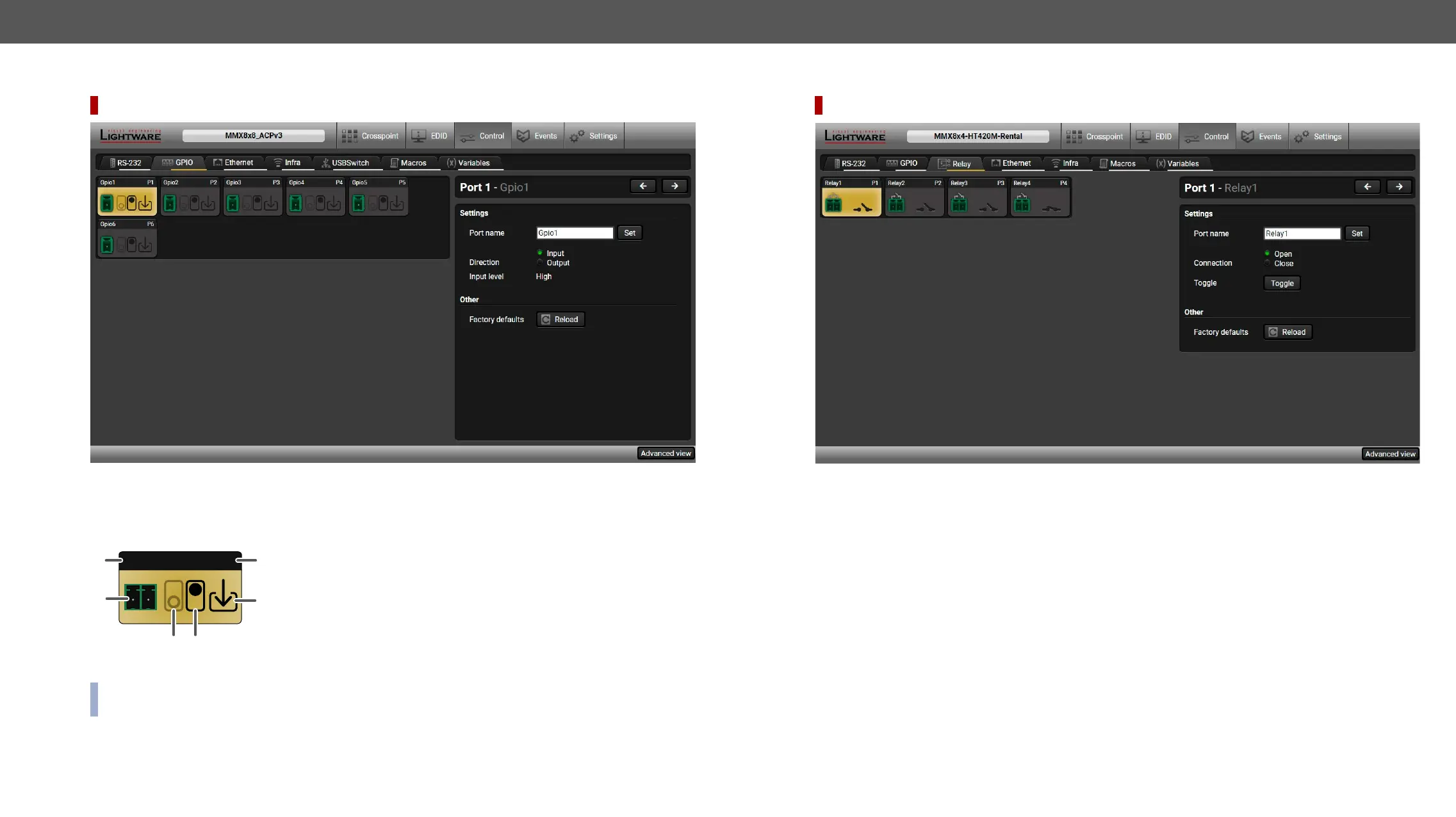

GPIO tab in the Control menu
commands. Select a GPIO pin and under the Port settings section; the settings (pin direction and input level)
are displayed on the port tiles as well:
GP1 P1
3
4
* Highlighted with black means the current setting.
INFO: Output level can be set only in case of setting the pin direction to Output. In case of input direction
the output level setting and the Toggle button is not available.
For more details see the GPIO Interface section. #gpio
1
GPIO pin name
4
High level indicator *
2
GPIO port icon
5
Pin direction:
Input: down arrow
Output: up arrow
3
6
GPIO port number
Relay Tab
DIFFERENCE: Only MMX8x4-HT420M model has Relay port.
Relay tab in Control menu in MMX8x4-HT420M model
Four relays are built into the matrix switcher. The following settings are available:
▪ Port name
▪
▪ Toggle;
▪ Reloading factory defaults (see factory default settings in the Factory Default Settings section).
For more details see the The Event Manager Feature section. #relay
