Mitsubishi Electric CAHV-P500YA-HPB Service Handbook

[ IX Troubleshooting ]
- 135 -
HWE10060 GB

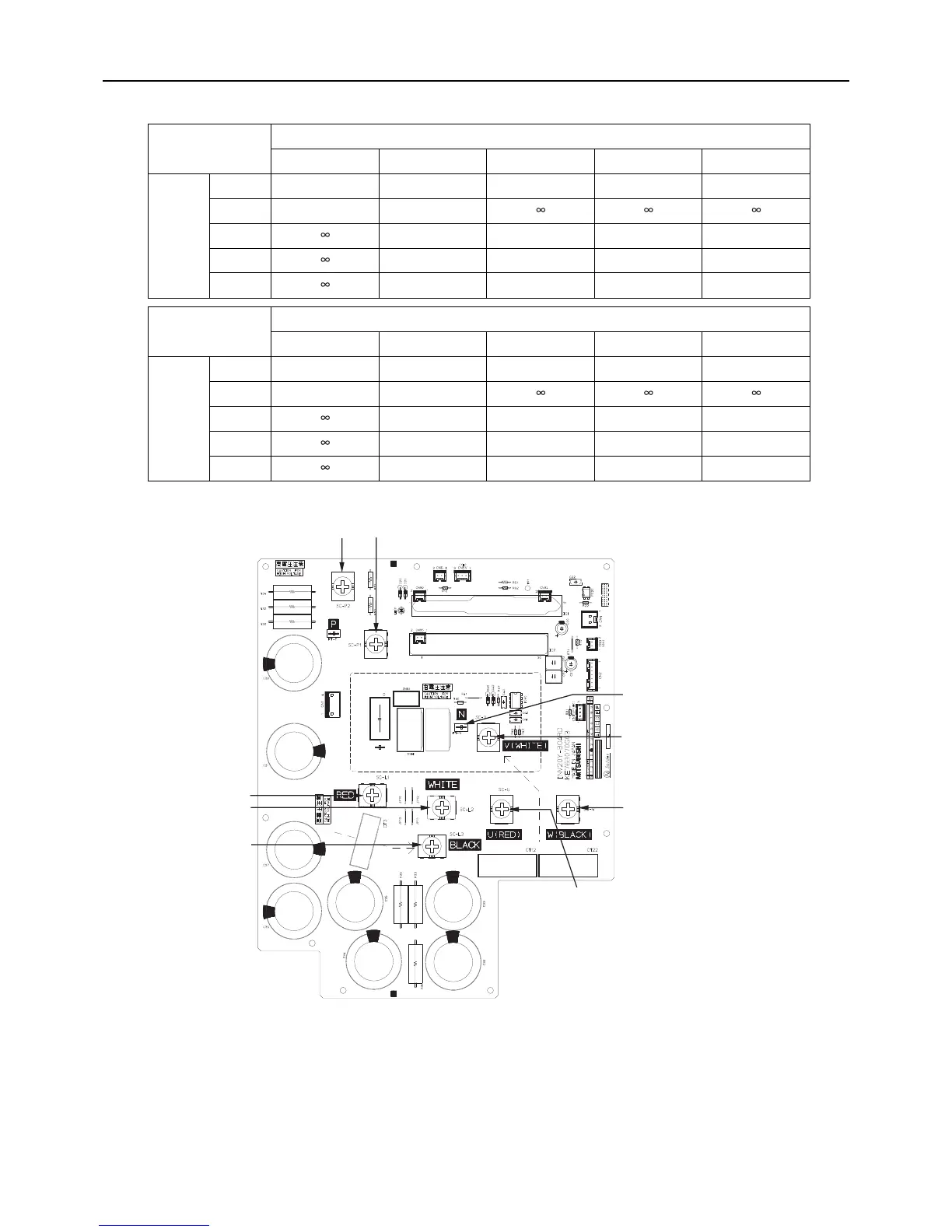

INV board external diagram
Judgment value (reference)
Black ( + )
SC-P1 FT-N SC-L1 SC-L2 SC-L3
Red (-)
SC-P1 - - 5 - 200 ohm 5 - 200 ohm 5 - 200 ohm
FT-N - -
SC-L1 5 - 200 ohm - - -
SC-L2 5 - 200 ohm - - -
SC-L3 5 - 200 ohm - - -
Black ( + )
SC-P2 FT-N SC-U SC-V SC-W
Red (-)
SC-P2 - - 5 - 200 ohm 5 - 200 ohm 5 - 200 ohm
FT-N - -
SC-U 5 - 200 ohm - - -
SC-V 5 - 200 ohm - - -
SC-W 5 - 200 ohm - - -
SC-U
SC-W
SC-V
FT-N
SC-P1SC-P2
SC-L1
SC-L2
SC-L3
