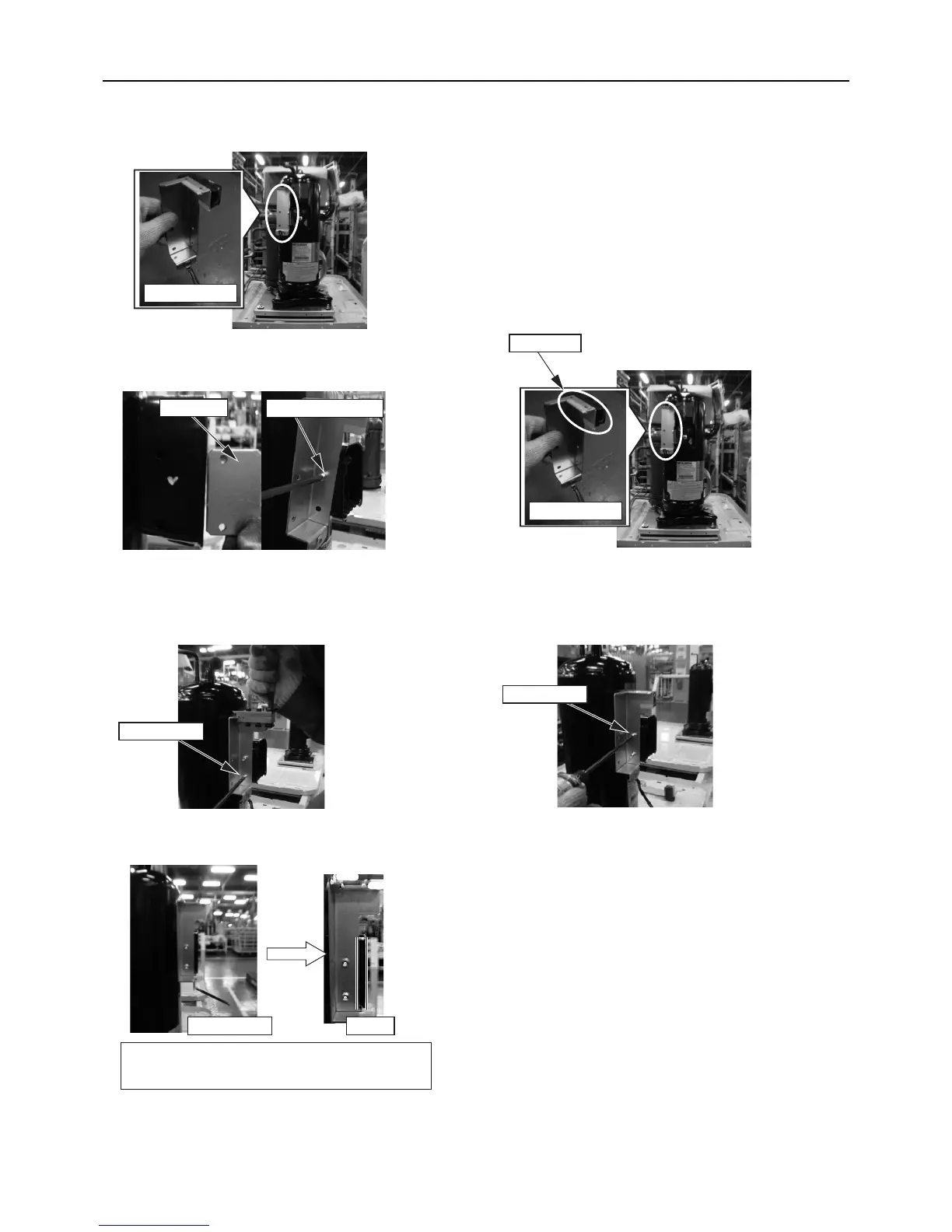

1. Hold the attachment and INJ pipe fixing plate against
the terminal box, aligning the holes with the hole on the
terminal box, and then temporarily screw in the top
screw to hold them in place.
2. Press the butyl rubber on the fixing plate against
the compressor shell.
3. Tighten the fixing screw at the bottom.
5. Check for proper attachment.
4. Tighten the fixing screw at the top.
903@@@@
INJ pipe fixing plate
Final check
Make sure that the side edge of the fixing plate and the
vertical edge of the terminal box are parallel to each other.
Attachment instructions for INJ pipe fixing plate
Finished state
Parallel
INJ pipe fixing plate
Butyl rubber
Temporary tightening
attachment
Final tightening
Final tightening
To Next Page
