Required to allow for a replacement of equipment.
Required to check the performance and monitor the operation of the units.
Recommended for checking the operation status.
Required to allow for a replacement or cleaning of the flow adjuster.
Recommended to prevent the noise and vibration from the pump from being transmitted.

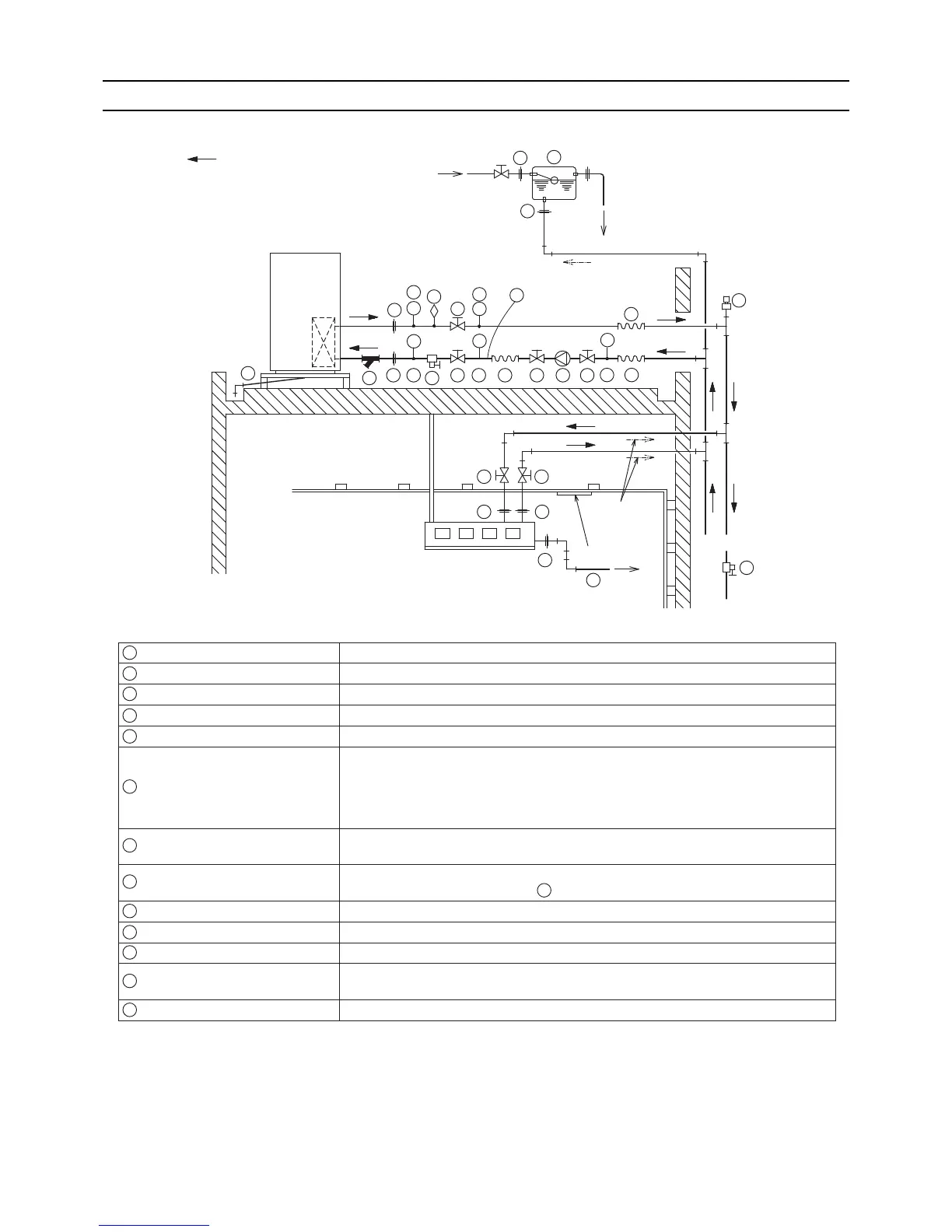

Install the drain pipe with a downward inclination of between 1/100 and 1/200. To
prevent drain water from freezing in winter, install the drain pipe as steep an angle as
practically possible and minimize the straight line.
For cold climate installation, take an appropriate measure (e.g., drain heater) to prevent
the drain water from freezing.
Use a pump that is large enough to compensate for the total water pressure loss and
supply sufficient water to the unit.
Install air venting valves to the places where air can accumulate.
Automatic air vent valves (such as ') are effective.
Install an expansion tank to accommodate expanded water and to supply water.
Use pipes that allow for easy air purging, and provide adequate insulation.
Install drain valves so that water can be drained for servicing.
Install a strainer near the unit to keep foreign materials from entering the water-side
head exchanger (supplied).
Required to protect the unit.
Union joints/flange joints
Thermometer
Water pressure gauge
Valve
Flexible joint
Drain pipe
Pump
Air vent valve
Expansion tank
Water pipe
Drain valve
Strainer
Flow switch
indicates the direction of
the water flow.
Heat pump unit
Water-side
heat
exchanger
City water
Overflowed water
To drain outlet
Minimum upward
gradient of 1/200
Minimum upward
gradient of 1/200
Access hole cover
To drain outlet
Air conditioning unit
P
P
P
T
T
5
53
8
'
4
1
11
6
75443
11
2
12
1
3
4
8
2
1
1
9
1
13
4
4
11
8
1
2
3
4
5
7
8
9
10
11
12
13
6
