(8) Setting the water temperature using analog signal input
• When dip switch SW2-7 is set to ON (Enable external input), the target water temperature varies with the preset
temperatures A and B and the type of analog input signal.
• When the water temperature setting input signal type is set to 0 (4-20 mA)
• External analog input signal of 4 mA: Preset temp. A (Item code 11)
• External analog input signal of 20 mA: Preset temp. B (Item code 13)
• External analog input signal of between 4 and 20 mA: the preset temperature will be linearly interpolated.
• When the water temperature setting input signal type is set to 1 (0-10 V)
• External analog input signal of 0 V: Preset temp. A (Item code 11)
• External analog input signal of 10 V: Preset temp. B (Item code 13)
• External analog input signal of between 0 and 10 V: the preset temperature will be linearly interpolated.
• When the water temperature setting input signal type is set to 2 (1-5 V)
• External analog input signal of 1 V: Preset temp. A (Item code 11)
• External analog input signal of 5 V: Preset temp. B (Item code 13)
• External analog input signal of between 1 and 5 V: the preset temperature will be linearly interpolated.
• When the water temperature setting input signal type is set to 3 (2-10 V)
• External analog input signal of 2 V: Preset temp. A (Item code 11)
• External analog input signal of 10 V: Preset temp. B (Item code 13)
• External analog input signal of between 2 and 10 V: the preset temperature will be linearly interpolated.

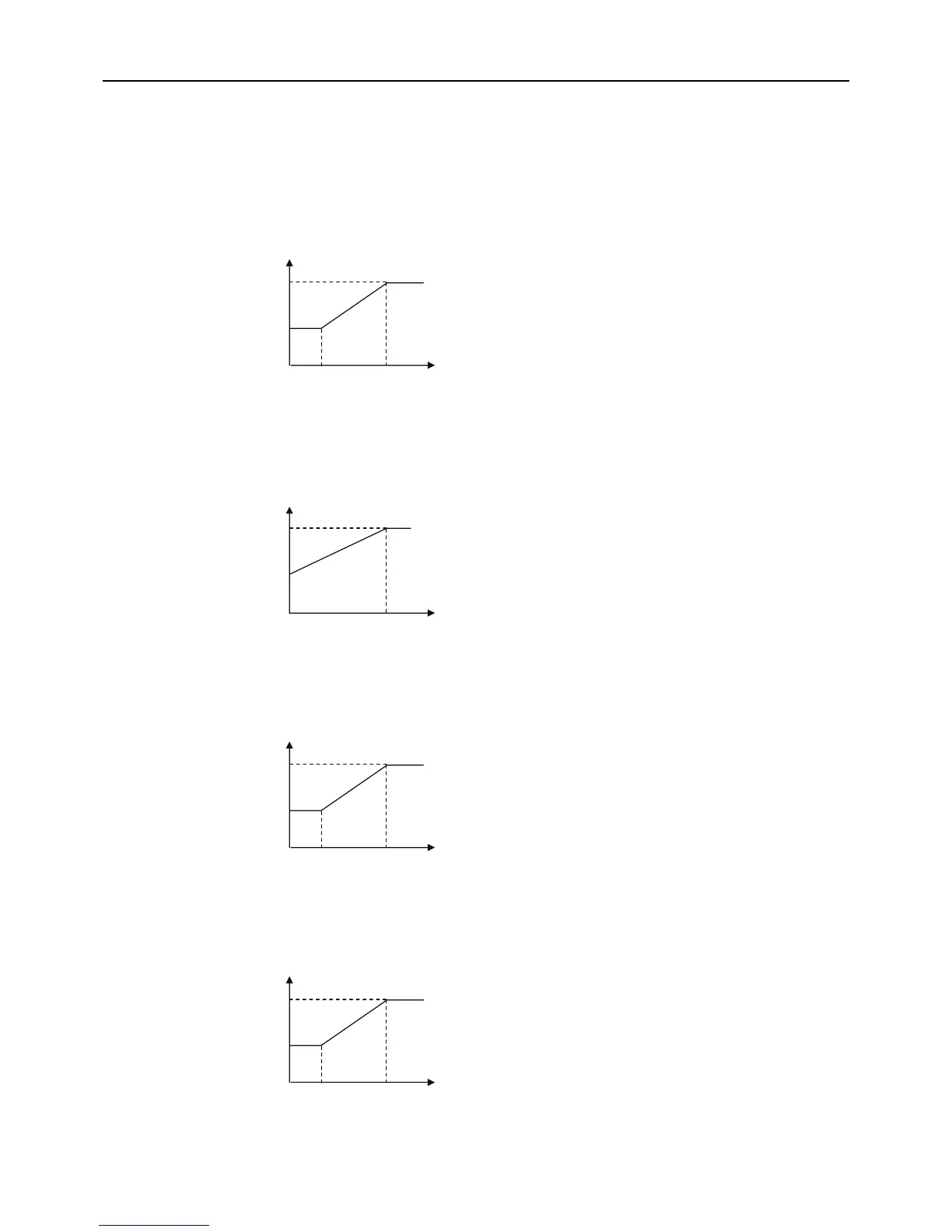

Preset temp B
Preset temp A
4 mA Input current20 mA
Preset temp B
Preset temp A
0 V Input voltage10 V
Preset temp B
Preset temp A
1 V Input voltage5 V
Preset temp B
Preset temp A
2 V Input voltage10 V
