2. Check valve Replacement instructions
A
ø12.7 [1/2"]

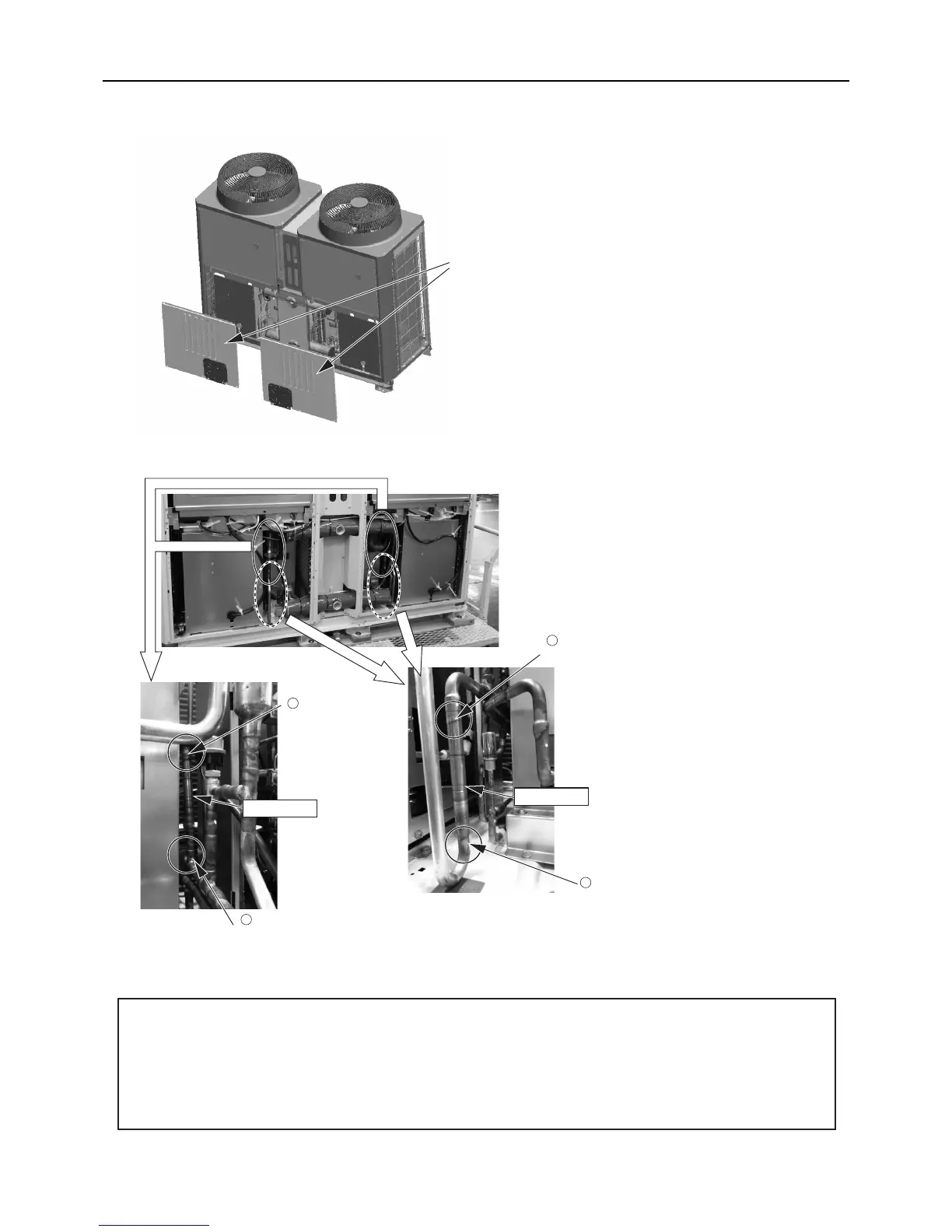

1) Remove the lower service panels.
(Panel FB)
1
B
ø12.7 [1/2"]
A
ø12.7 [1/2"]
B
ø12.7 [1/2"]
2
1. Debraze A-B parts (total 2 places), and remove the Check valve .
2. Replace the Check valve to be serviced while it is removed from the unit.
Precautions for replacing Check valve
·Be sure to perform no-oxidation brazing when brazing.
·Place a wet towel on the Check valve when heating pipes to keep the temperature of the valve from exceeding
120°C [248°F].
·After brazing , check the condition around the brazing. After confirming no leakage, evacuate the air inside. *1
·Perform carefully with the flame direction so that it does not burn cables and plates etc. in the unit.
Check valve
Check valve
