PARAMETERS
89
Pr. 73 "0-5V/0-10V selection"
Pr. 79
"operation mode selection"
Pr. 902
"frequency setting voltage bias"
Pr. 903
"frequency setting voltage gain"
Related parameters
Pr. 73 "0-5V/0-10V selection"
Pr. 79 "operation mode selection"
Pr. 904
"frequency setting current bias"
Pr. 905
"frequency setting current gain"
Related parameters

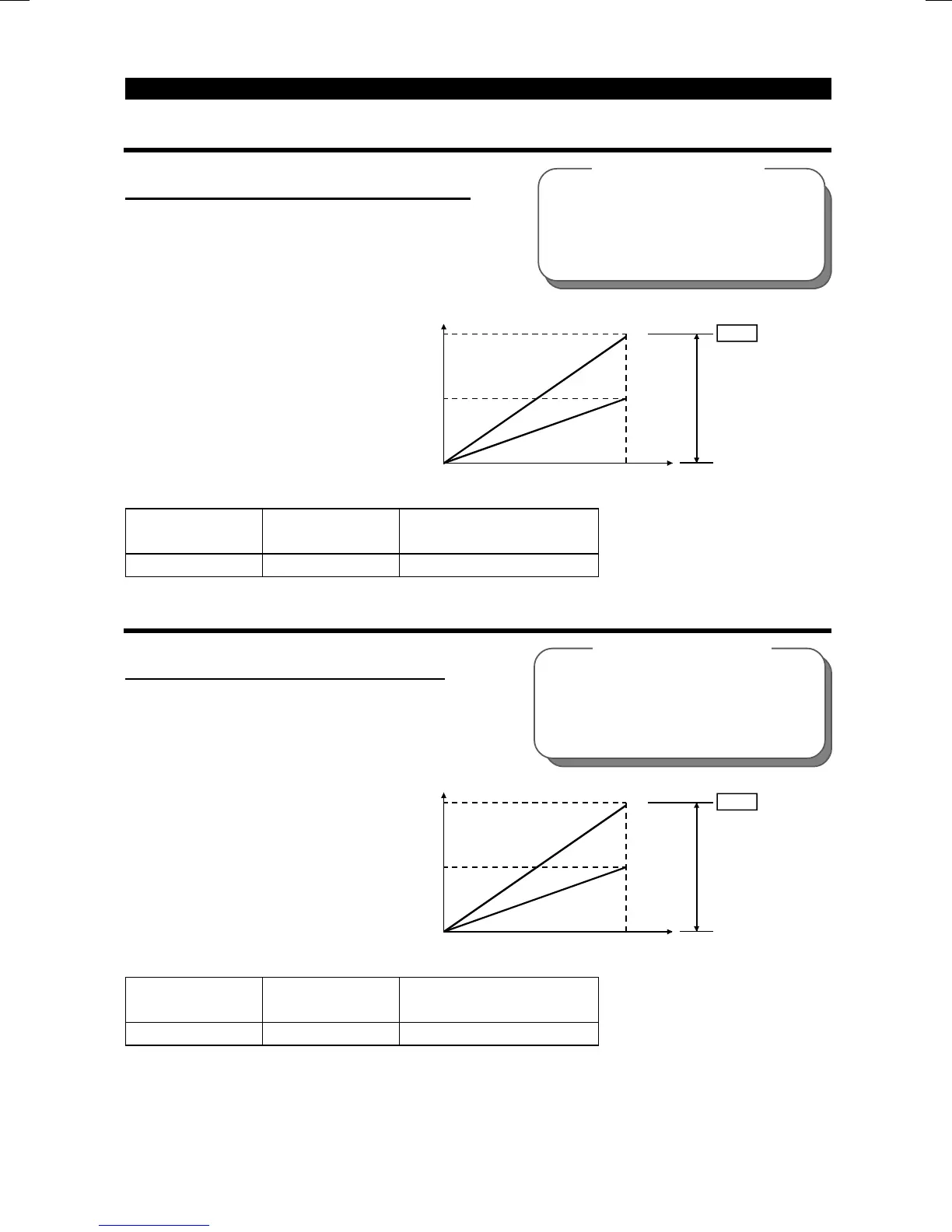

4.2.16 Frequency at 5V (10V) input (Pr. 38)
Pr. 38 "frequency at 5V (10V) input"
!
You can set the frequency
provided when the
frequency setting signal
from the potentiometer
connected across terminals
2-5 (frequency setting
potentiometer) is 5VDC (or
10VDC).
5V
fm1
Pr.38
fm2
Output frequency(Hz)
Output frequency
range
Frequency setting signal (10V)
Parameter
Number
Factory Setting Setting Range
38 60Hz 1 to 400Hz
4.2.17 Frequency at 20mA input (Pr. 39)
Pr. 39 "frequency at 20mA input"
!
You can set the frequency
provided when the
frequency setting signal
input across terminals 4-5 is
20mA.
20mA
fm1
Pr.39
fm2
Output frequency(Hz)
Output frequency
range
Frequency setting signal
Parameter
Number
Factory Setting Setting Range
39 60Hz 1 to 400Hz
