OUTLINE
10
"
""

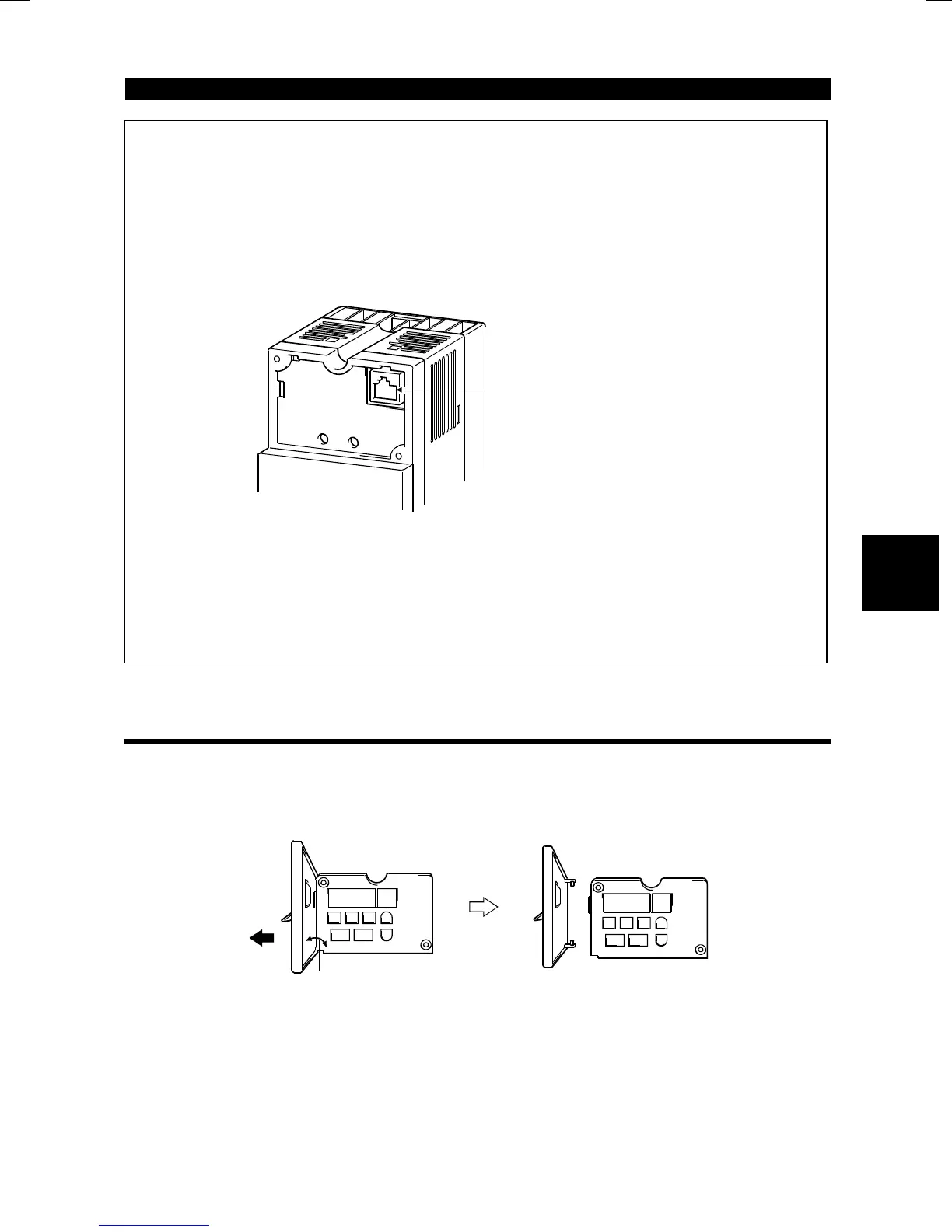

" Using the connection cable for operation
1) Fit the rear cover option FR-E5P to the back surface of the optional control
panel.
2) Securely plug one end of the connection cable into the PU connector of the
inverter and the other end into the adaptor of the FR-E5P option to connect it
to the control panel. (For the connection cable of the FR-E5P, refer to page
27.)
PU connector
(
RS-485 cable specifications
)
"
""
" Mounting the control panel on an enclosure
When you open the control panel front cover, the screw mounting guides for
fixing the control panel to an enclosure appear on the top left and bottom right.
Fit the rear cover of the FR-E5P option, drill holes in the control panel mounting
guides, and securely mount the control panel on the enclosure with screws.
1.3.6 Removal of the control panel (FR-PA02-
02
) front cover
1) Open the control panel front cover to 90 degrees.
2) Pull out the control panel front cover to the left to remove it.
90 degrees
