1.1 Pre-Operation Information
1 OUTLINE
1.1 Pre-Operation Information
1.1.1 Precautions for operation
This manual is written for the FR-E500 series transistorized inverters.
Incorrect handling may cause the inverter to operate incorrectly, causing its life to be
reduced considerably, or at the worst, the inverter to be damaged. Handle the inverter
properly in accordance with the information in each section as well as the precautions
and instructions of this manual to use it correctly.
For handling information on the parameter unit (FR-PU04), stand-alone options, etc.,
refer to the corresponding manuals.
(
1
)
Unpacking and product check
Unpack the inverter and check the capacity plate on the front cover and the rating plate
on the inverter side face to ensure that the product agrees with your order and the
inverter is intact.

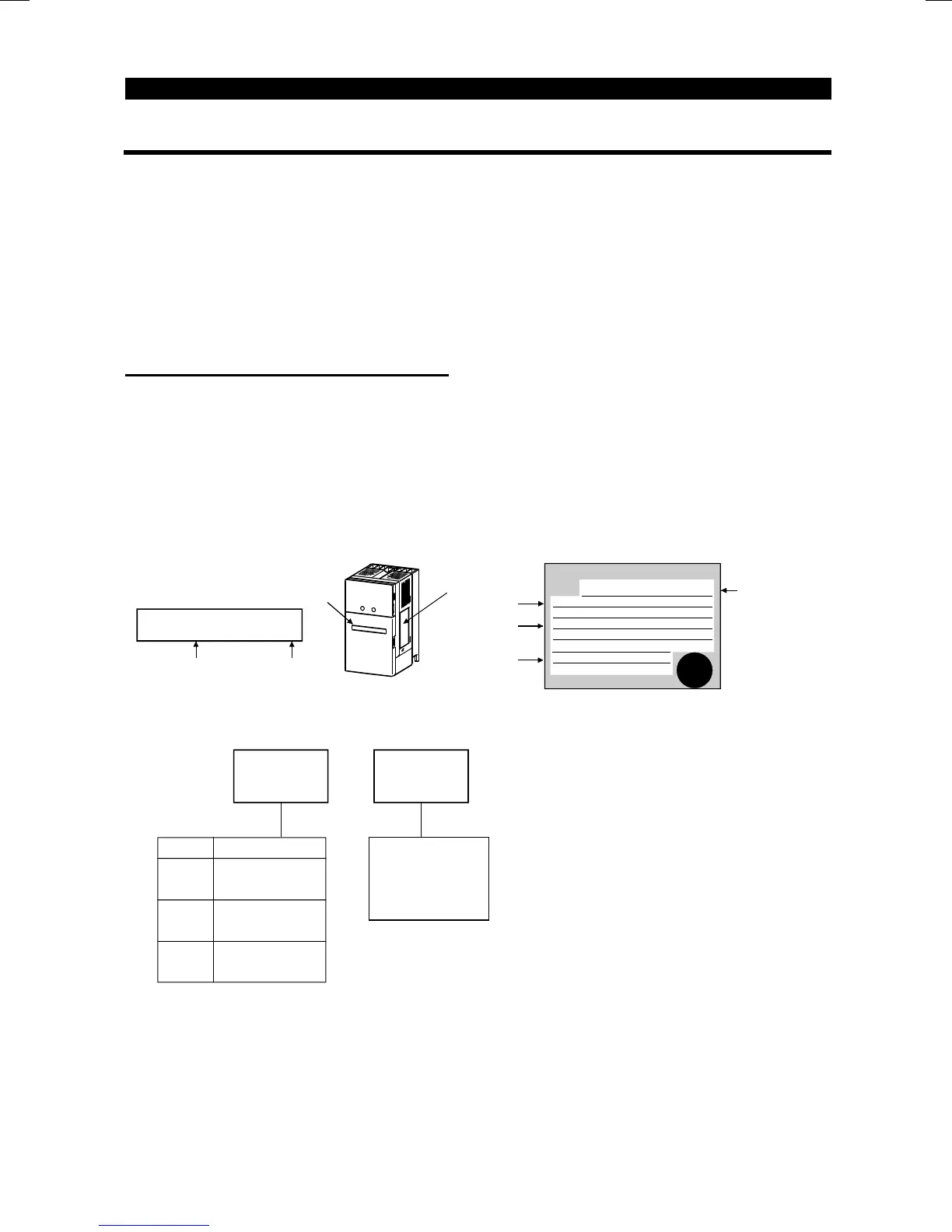

1) Inverter type
FR-E520-0.1K-NA/
Inverter type
Serial number
Capacity plate
Rating plate
Capacity plate
Rating plate
Inverter type
Input rating
Output rating
Serial number
MITSUBISHI
MODEL
INVERTER
FR-E520-0.1K-NA
INPUT :
OUTPUT :
SERIAL :
XXXXX
XXXXX
PASSED
"
Inverter type
Represents the
inverter capacity
"kW
".
Symbol Voltage Class
E520
E540
Three-phase
400V class
Three-phase
200V class
FR -
E520
-0.1K - NA
E510W
Single-phase
100V class
2) Accessory
Instruction manual
If you have found any discrepancy, damage, etc., please contact your sales
representative.
