PARAMETERS
82

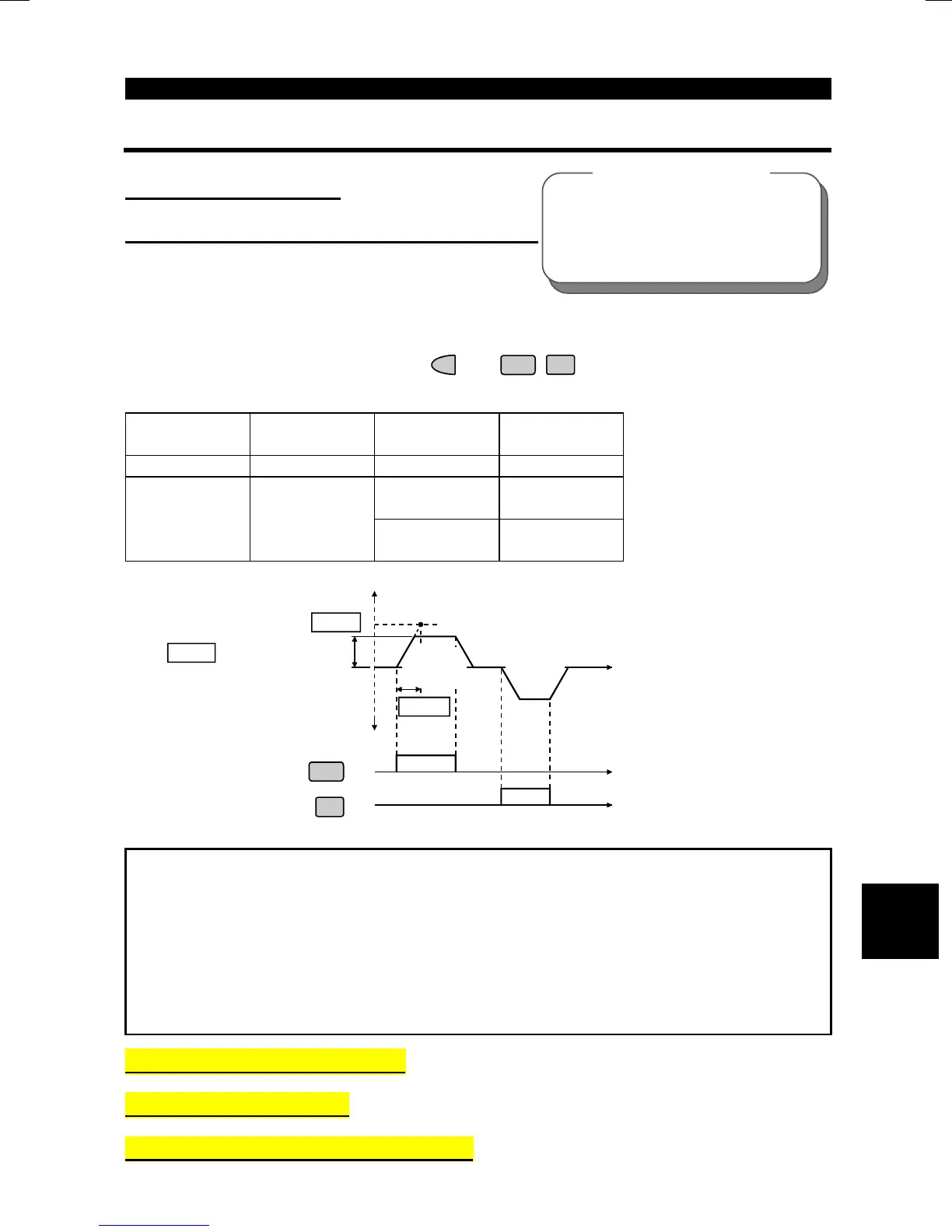

4.2.10 Jog operation (Pr. 15, Pr. 16)
Pr. 15 "jog frequency"
Pr. 16 "jog acceleration/deceleration time"
Jog operation can be started and stopped by selecting the jog mode from the control
panel and pressing and releasing the
RUN
key (
FWD
,
REV
key).
!
Set the frequency and acceleration/deceleration time for jog operation.
Parameter
Number
Factory
Setting
Setting
Range
Remarks
15 5Hz 0 to 400Hz
0 to 3600 s
When
Pr. 21 = 0
16 0.5 s
0 to 360 s
When
Pr. 21 = 1
Pr.15
Time
Pr.20
Pr.16
Output frequency (Hz)
Jog frequency
setting range
ON
ON
key
key
Forward
rotation
Reverse
rotation
FWD
REV
Note:1. In S-shaped acceleration/deceleration pattern A, the acceleration/
deceleration time is the period of time required to reach Pr. 3 "base
frequency", not Pr. 20.
2. The acceleration time and deceleration time cannot be set separately for jog
operation.
3. The value set in Pr. 15 "jog frequency" should be equal to or greater than the
Pr. 13 "starting frequency" setting.
Pr. 18
'
''
'
Refer to Pr. 1, Pr. 2.
Pr. 19
'
''
'
Refer to Pr. 3.
Pr. 20, Pr. 21
'
''
'
Refer to Pr. 7, Pr. 8.
Pr. 20
"acceleration/deceleration
reference frequency"
Pr. 21
"acceleration/deceleration
time increments"
Related parameters
